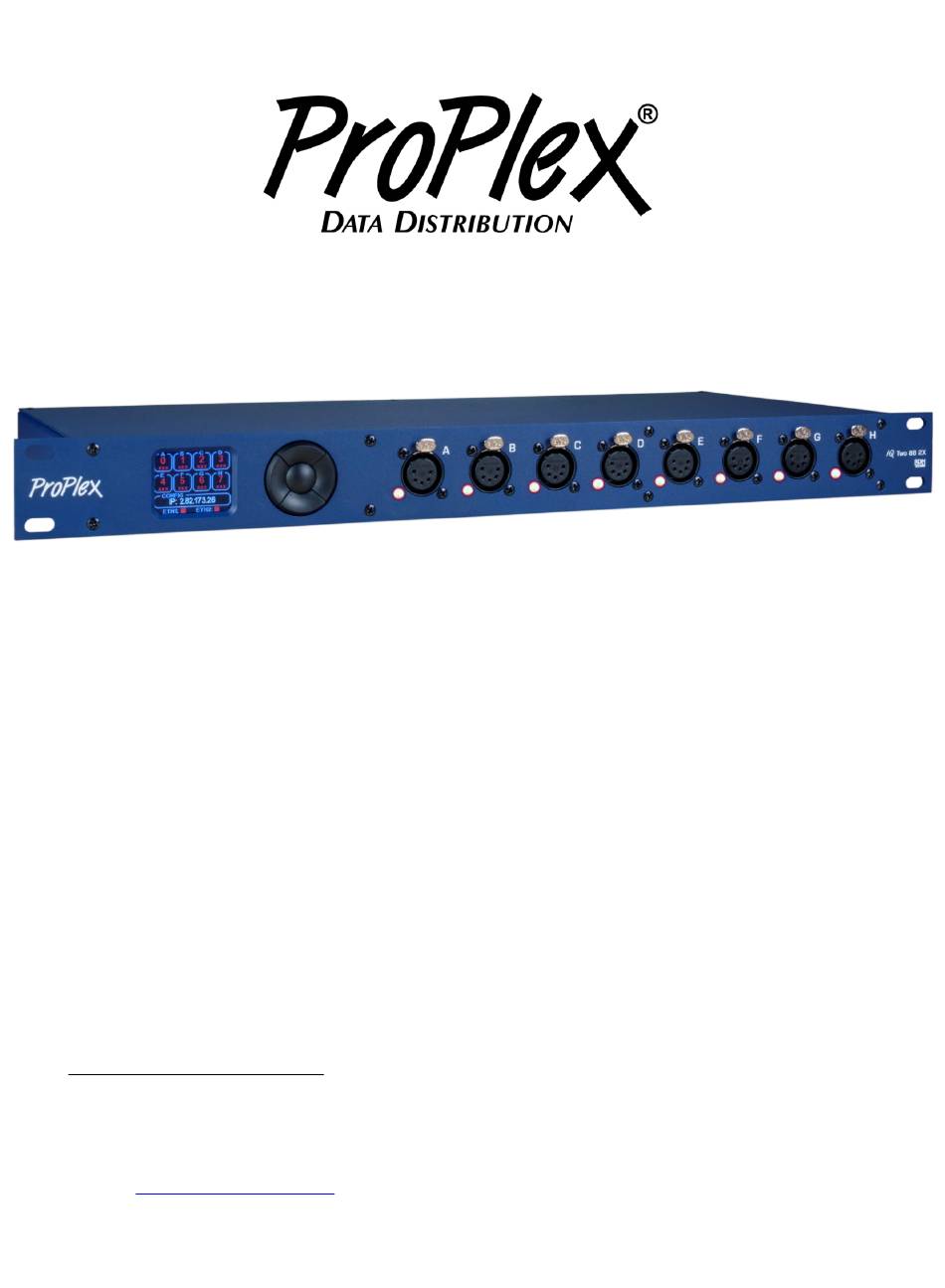

- Page 1 ProPlex IQ Two 88 2x USER MANUAL v1.1 TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com...
- Page 2 Specifications are subject to change without notice. The information in this document supersedes all previously supplied information before the effective date listed above. TMB has confidence in the accuracy of the document information herein but assumes no responsibility or liability for any loss occurring as a direct or indirect result of errors or exclusions whether by accident or any other cause.
-
Page 3: Specifications
SPECIFICATIONS Power 100-240 VAC 50-60 Hz Power Consumption 10.2 A Fuse 1.0A 250V Ethernet Ports DMX Ports DMX Connectors Neutrik XLR5 Female (NC5FAV) DMX Port Isolation Optical, up to 1000V Ethernet Connectors Neutrik EtherCon RJ45 Ethernet Type 1 Gbps Network Protocols ArtNet, sACN (E1.31) Cooling Convection... -
Page 4: Led Status Information
OVERVIEW NOTE! Ethernet port 1 supports PoE Input LED STATUS INFORMATION ProPlex IQ Two 88 User Manual v1.1—18 February 2021... - Page 5 CONFIGURATION IQ Two can be configured locally on the device by using control panel buttons, or remotely through the Ethernet ports by accessing a built-in web page with web browser, or with ProPlex Software. Access Main menu functions using the navigation pad next to the LCD display. While in home screen: Press any of the directional buttons to activate the selection window marked green and choose CONFIG menu or any of eight ports for configuration.
- Page 6 MENU TREE ProPlex IQ Two 88 User Manual v1.1—18 February 2021...
-
Page 7: Port Setup
PORT SETUP Press any of the directional buttons on the home screen to activate selection window marked green. Press <SELECT> to access the desired menu. Use <UP> and <DOWN> buttons to scroll through the menus. <LEFT> menu button can be used as secondary <BACK> button and <RIGHT>... - Page 8 UNIVERSE SET Press <SELECT> button to access the Universe submenu. Press <UP> or <DOWN> to set the universe. Press <LEFT> or <RIGHT> to decline or confirm, <SELECT> to accept. DIRECTION Press <SELECT> to access the DMX Direction submenu. Press <UP> or <DOWN> to assign the port direction (OUT/ IN) for each DMX port. Press <SELECT>...
-
Page 9: Protocol Setup
PRIORITY Press <SELECT> to access the Priority submenu. Press <UP> or <DOWN> to set desired priority number (0-200). Press <LEFT> or <RIGHT> to decline or confirm, <SELECT> to accept. When signal is lost for the highest priority port, the DMX signal will be taken from the port with the next highest priority. - Page 10 Press <LEFT> to return to the home screen. When the "Hold values" (DEFAULT) setting is chosen, after the source DMX is lost, the ProPlex IQ Two 88 2x holds the last DMX values it has received and continues to output these values until incoming DMX has been restored.
- Page 11 DMX RATE Press <DOWN> or <UP> buttons to choose DMX refresh rate value. Press <SELECT> or <RIGHT> to set or <LEFT> to decline. Press <LEFT> to return to the home screen. The DMX refresh rate setting controls how many times per second the device outputs DMX over 5-pin XLR connectors.
-
Page 12: Network Setup
NETWORK SETUP Press <SELECT> or <RIGHT> to enter the Network Setup submenu or <LEFT> to return to the home screen. IP ADDRESS Press <UP> or <DOWN> to change value for each highlighted window. Press <LEFT> or <RIGHT> to navigate selection window. Press <DOWN>... -
Page 13: Node Setup
EASY IP Press <DOWN> or <UP> to turn the Easy IP ON or OFF. Press <SELECT> or <RIGHT> to set or <LEFT> to decline. Press <LEFT> to return to the home screen. This setting ensures that the software searches for all masks. Subnet mask cannot be changed if Easy IP is on. - Page 14 LCD/LED BRIGHTNESS Press <DOWN> or <UP> to choose the brightness of LCD display and LED state. Press <SELECT> or <RIGHT> to set or <LEFT> to decline. Press <LEFT> to return to the home screen. UNIVERSE FORMAT Press <DOWN> or <UP> to choose how Universe format for DMX ports will be displayed at the home screen.
-
Page 15: User Configuration
USER CONFIGURATION Press <SELECT> or <RIGHT> to record user desired configuration settings. It is possible to save two different configurations. Press <SELECT> in order to record the current configuration. Press <LEFT> to decline. By pressing Record, another window will pop up to confirm or decline recording. - Page 16 When recorded, user configuration can be: • Overwritten • Loaded • Deleted DEFAULTS Press <DOWN> or <UP> buttons to choose default settings for Output defaults (will reset all DMX port related settings) Protocol defaults (will reset all protocol related settings (sACN/ArtNet settings).
-
Page 17: Limited Warranty
(2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods. -
Page 18: Return Procedure
Please send returned merchandise prepaid and in the original packing. Freight call tags will not be issued for shipping the product to TMB, but TMB will pay the freight for return to the customer. Clearly label package with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will delay service. -
Page 19: Contact Information
CONTACT INFORMATION LOS ANGELES HEADQUARTERS 527 Park Avenue | San Fernando, CA 91340, USA Tel: +1 818.899.8818 | Fax: +1 818.899.8813 sales@tmb.com TMB 24/7 TECH SUPPORT US/Canada: +1.818.794.1286 Toll Free: 1.877.862.3833 (1.877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 techsupport@tmb.com LOS ANGELES +1 818.899.8818 LONDON +44 (0)20.8574.9700...
