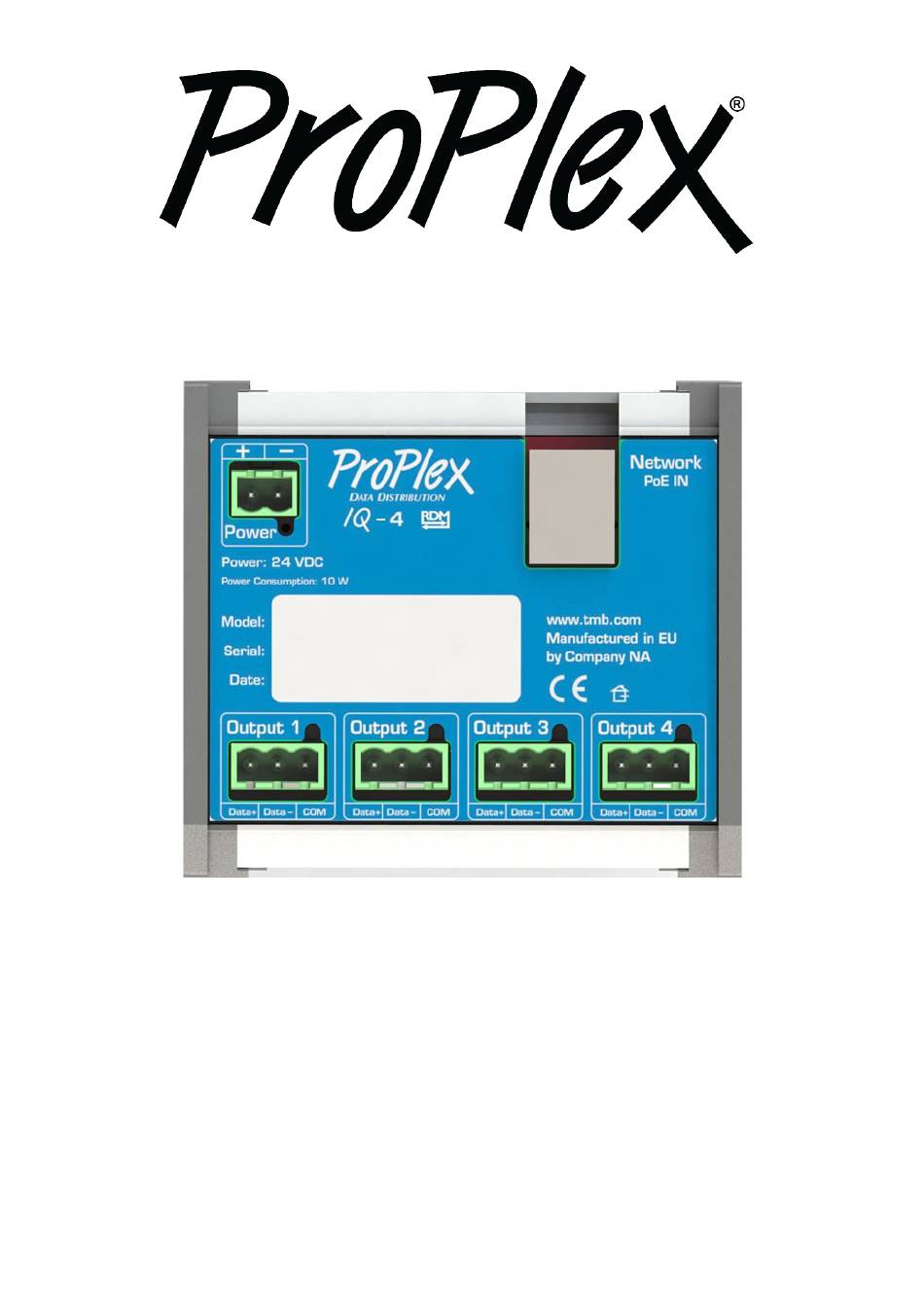

  • Page 1 D A T A D I S T R I B U T I O N ProPlex IQ–4 RDM DIN Rail Quick Start Guide...
  • Page 2 Setup ProPlex DIN Rail devices use a standard Phoenix MSTB screw terminal connector in various pin configurations. Please refer to the wiring diagrams below for correct hook up of your ProPlex DIN Rail product. 1. Connect the 24 VDC power to the power input located in left top corner.
  • Page 3 3. Connect the DMX signal cable to the IQ-4 DIN Rail DMX ports. These ports can be set up as inputs or outputs using the built-in web server or with the ProPlex IQ RDM Manager Software. The connector should be wired as follows: Connections ProPlex IQ-4 DIN Quick Start Guide, v1.2 14 June 2021...
  • Page 4 Dimensions and Connections ProPlex IQ-4 DIN Quick Start Guide, v1.2 14 June 2021...
  • Page 5 LED status information The Power LED has two states: ON and OFF. • ON: Unit is receiving power • OFF: Unit is not receiving power The DMX output LEDs have multiple states: RED, ORANGE (full), ORANGE (dim), BLUE (full), BLUE (dim), and GREEN. •...
  • Page 6 ProPlex IQ RDM Manager software and via a web browser. The ProPlex IQ RDM Manager software is available as a free PC download from www.tmb.com This software includes a full suite of configuration and monitoring features, and makes managing multiple nodes on a network extremely easy.
  • Page 7 Please see ProPlex IQ RDM Manager Software manual for information on how to configure the ProPlex IQ-4 DIN Rail. TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com ProPlex IQ-4 DIN Quick Start Guide, v1.2 14 June 2021...
  • Page 8 CONTACT INFORMATION LOS ANGELES HEADQUARTERS 527 Park Avenue | San Fernando, CA 91340, USA Tel: +1 818.899.8818 | Fax: +1 818.899.8813 sales@tmb.com TMB 24/7 TECH SUPPORT US/Canada: +1.818.794.1286 Toll Free: 1.877.862.3833 (1.877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 techsupport@tmb.com LOS ANGELES +1 818.899.8818 LONDON +44 (0)20.8574.9700...
