- Page 1 Instruction Manual...
- Page 2 The consignee must make all shipping claims. The DS216 fits into a standard 19" rack unit of space (1 3/4"). Allow at least an additional 4" depth for the connectors on the back panel. Be sure that there is enough air space around the unit for cooling and ventilation.

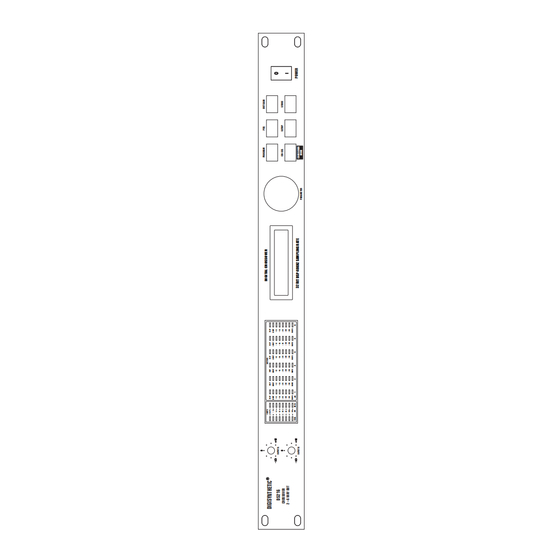

- Page 3 DS216 Digital Three Crossover Processor Operation Specification Front Panel PROGRAM OUT GAIN INPUTS OUTPUTS D 216 INPUT A CH-SEL SETUP STORE POWER INPUT B CROSSOVER PARAMETER MODE 1.INPUTA&INPUTB--input level adjustable range:- ~ +12dB 2. INPUT-- input level indicator. 3. OUTPUT-- output level indicator.
- Page 4 Pressing the Encoder again, to enter into the Filter parameter "F" (Frequency) selection. Users are able to select 24 ISO frequencies (rang:100Hz~20kHz) by rotating the Encoder clockwise or anti-clockwise. if pressing the Encoder again, to enter into the Filter parameter "G" (Gain) adjusting. Users are able to adjust "G"...
- Page 5 If press the key second time, enter into LOW-PASS Filter type setting, users are able to select 3 kinds of Filter curve types ("-12dB", "-18dB", "-24dB") by rotating Encoder clockwise or anti-clockwise(show as Fig.4c), At this time, if press Encoder, able to select the cut frequency(Rang:20Hz~20kHz) (show as Fig.4d).
- Page 6 PR:1 M1:2X2W+2S CH:1 GN:MUTE ON Fig.5b Notice: All of channels are mute when you have finished adjusting proceeding or mode every time. Press the button OUT GAIN, can resume one-off to all of channels output; press the button again, resume volume adjustment and mute key function. 11.STORE-- parameter store setting.
-
Page 7: Block Diagrams
Block Diagrams DS216 2X2 WAY+MSUM X-OVER PEQS GAIN GAIN MUTE OUTPUT1 INPUT A (X3) HIGH PEQS GAIN MUTE OUTPUT2 (X3) PEQS GAIN GAIN MUTE OUTPUT 3 INPUT B (X3) HIGH PEQS GAIN MUTE OUTPUT 4 (X3) Msub PEQS MUTE GAIN... - Page 8 DS216 4 W AY X-OVER +2 PEQS GAIN GAIN GAIN GAIN MUTE MUTE OUTPUT1 OUTPUT1 INPUT A INPUT A (X3) (X3) Lo Mid PEQS GAIN GAIN MUTE MUTE OUTPUT2 (X3) (X3) Hi Mid PEQS GAIN GAIN GAIN GAIN MUTE MUTE...
- Page 9 APPENDIX FOR DS216 Default X-over setting and names for all formats X-over output 1 output 2 output 3 output 4 output 5 output 6 2x2 Way+2S Low High High Msub 122Hz-1k8Hz 1k8Hz-20kHz 122Hz-1k8Hz 1k8Hz-20kHz 25Hz-122Hz 20Hz-20kHz 2x3 Way High High...
- Page 10 Specifications Two electronically balanced Inputs Impedance >10k ohms. CMRR 50dB 50Hz-10kHz. Six electronically balnaced. Outputs Source Imp <60ohms. 20Hz-20kHz, 1dB. Frequency Resp. Dynamic Range 100dB 20Hz-20kHz. 0.06% @1kHz, 0.775Vrms V Distortion Adjustable -40dB to +6dB in 1dB steps and mute. Output gain Parametric Equalization Filters...
