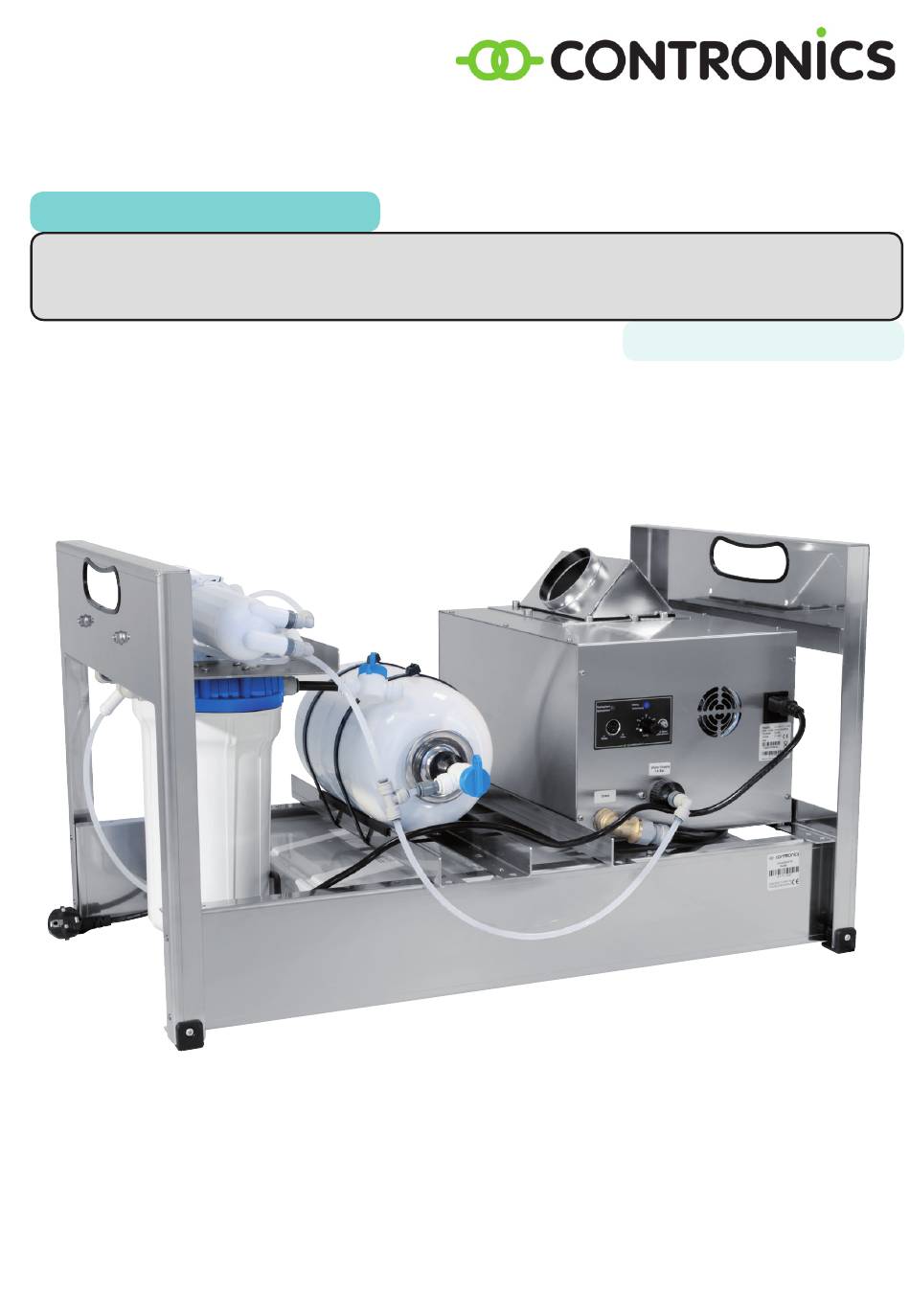

- Page 1 HUMIDIFIER SYSTEM HU-64OG-SYS USER MANUAL 01-03-2016 version 1.3...
- Page 2 HU-64OG-SYS Contronics Engineering B.V., Ambachtsweg 8, 5492 NJ Sint-Oedenrode, The Netherlands, hereby declares that the product HU-64OG-SYS produced and delivered by Contronics Engineering B.V., is in accordance with the following CE directives: EMC-Directive : 2014/30/EU Directive for low-voltage electrical installation...
-
Page 3: Table Of Contents
HU-64OG-SYS Table of contents 1. PREFACE ��������������������������������������������������������������������������������������������������������� 4 2. PREAMBLE ������������������������������������������������������������������������������������������������������ 5 3. SAFETY REGULATIONS ������������������������������������������������������������������������������ 6 4. PACKING ���������������������������������������������������������������������������������������������������������� 6 5. CONNECTIONS AND FUNCTIONS ������������������������������������������������������������ 7 6. INSTALLATION INSTRUCTIONS ���������������������������������������������������������������� 8 7. ELECTRICAL CONNECTIONS �������������������������������������������������������������������� 8 8. WATER CONNECTIONS AND FLUSHING CYCLE ��������������������������������� 9 9. -
Page 4: Preface
Through the construction, flushing programme and materials used, Contronics has ensured that the stimulation of bacterial growth is kept to the absolute minimum. In order to ensure the supply of pure water, it is strongly recommended that demineralised water is used (see the Contronics product range). -
Page 5: Preamble
This causes fresh products on show to lose quality quickly because they part with moisture into the dry ambient air. With a humidification system from Contronics you have the perfect solution for keeping your products fresh long-term. How do they work? Purified water is atomized by means of high frequency waves (ultrasonic). -
Page 6: Safety Regulations
2 minutes afterwards. Ensure that the water is always discharged via the outlet and ensure that this is never blocked. The humidifier may only be dismantled by authorized Contronics technicians. 4. PACKING The HU system is delivered in recyclable packaging that should be kept for re-shipping the unit for maintenance activities. -
Page 7: Connections And Functions
HU-64OG-SYS 5. CONNECTIONS AND FUNCTIONS Figure 1 Connections and functions Plug connection for HS-91, DZR-45, HTR-10 or HK-01 (external control 0-10 V). LED for flushing and alarm. Dial for setting the humidity. LED for humidity setting Dial for setting the airspeed. -
Page 8: Installation Instructions
HU-64OG-SYS 6. INSTALLATION INSTRUCTIONS IMPORTANT The guarantee will become void if the system is installed incorrectly or if it is handled in an improper manner. R.O. unit permeate drain drain unit water outlet water supply buffer tank Figure 2. Connections and functions 7. -
Page 9: Water Connections And Flushing Cycle
HU-64OG-SYS 8. WATER CONNECTIONS AND FLUSHING CYCLE IMPORTANT Thoroughly flush out the piping before connecting the humidifier in order to prevent installation debris from blocking the intake valve. Water supply The system has an integrated flow-reduction valve and can handle a water pressure from a minimum of 1 bar to a maximum of 6 bar. -
Page 10: Example Set-Up (Fresh In Fresh Out)
The horizontal part of the U pipe has holes out of which the humidified air streams. The longer vertical pipe contains the supply and drainage of water and electricity that is supplied from the ceiling. See also Fresh-in Fresh-out on www.contronics.nl IMPORTANT The connected pipes must be free from dust, dirt and oil residues. -
Page 11: Switching On And Starting Up/Functional Test
HU-64OG-SYS 11. SWITCHING ON AND STARTING UP/FUNCTIONAL TEST Switching on Check the following before the humidifier is switched on for the first time: The humidifier is positioned level. All pipes have been properly connected. The mains voltage is correct. The water discharge channel has been connected according to the instructions. -
Page 12: Ozone Generator
Contronics sets the timer to a default setting of 2 hours of ozone generation at night, between 2 a.m. and 4 a.m., while the humidifier is switched off. This setting can be changed (see “Applications”). - Page 13 The maintenance interval of the water reservoir will depend on the quality of the water and the purity of the air that is sucked in. Contronics advises al least 1 x year maintenance. The transducers must be replaced after approximately 20,000 operating hours (i.e. after about 2 years in the case of continuous use).
- Page 14 HU-64OG-SYS Checking the buffer tank If the buffer tank is not completely filled during the start-up procedure, it is possible that the pressure in the tank is too high compared to the pressure of the supplied water. In this case it is possible to release some of the (air) pressure step-by-step via the valve situated underneath the tank under a black cap, until the tank is filled.
- Page 15 Contronics. Drain unit The HU-64OG-SYS has a drain unit to catch the waste water and pump it away to the drain. The pump unit requires little maintenance. Only the XP STAYCLEAN has to be replaced annually. The XP STAYCLEAN deals with the disinfection in the drain unit.
-
Page 16: Malfunctions
HU-64OG-SYS 15. MALFUNCTIONS... -
Page 17: Technical Specifications
HU-64OG-SYS 16. TECHNICAL SPECIFICATIONS HU-64OG-SYS Transducer frequency 1,7 MHz Maximum capacity 0-4,0 kg/hour (adjustable) Service life of the transducers 10.000-20.000 hour Size op the water droplets 1-3 micron Diameter of outlet flange 1 x 80 mm Diameter of suction flange... -
Page 18: Options Lp-10Ws, Lp-10Wsg, Lp-10Wswsg, Lp-10Bp And Htr-10
HU-64OG-SYS OPTIONS LP-10WS, LP-10WSG, LP-10WSWSG, LP-10BP and HTR-10 This extra manual shows specific operation, installation and maintenance instructions for the LP-10WS, LP-10WSG and de LP-10WSWSG options. LP-10WS is an LP-10 combined with a permeate pump. The pump, that is water-powered, ensures that the rin sing water is used more efficiently. - Page 19 HU-64OG-SYS The LP-10BP is used when the water pressure is < 3 bar. See specifications page 21. Figure10. LP-10BP The HTR-10 is a room hygrostat and remote control for the HU-xxx series of air humidifiers. A very accurate air humidity sensor and temperature sensor are built-in.
-
Page 20: Workings Of Wsg Option
HU-64OG-SYS 18. WORKINGS OF WSG OPTION The Osmosis is working properly when the green LED lights up. When the yellow LED lights up, the membrane needs to be replaced during a service. When the red LED flashes, the membrane must be replaced immediately. If it is not replaced within 24 hours the red LED will light up and the humidifier will be switched off. -
Page 21: Specifications Options
HU-64OG-SYS 19. SPECIFICATIONS OPTIONS LP-10WS LP-10WSG LP-10WSWSG LP-10BP Electricity consumption (W) Mains voltage (V) Maximum switching capacity (W) Yield in respect to added water (%) 35 - 40 20 - 35 35 - 40 20 - 35 Dimensions LxWxH (cm) - Page 22 HU-64OG-SYS...
- Page 23 HU-64OG-SYS DISCLAIMER Contronics works continuously on the further development of its humidifiers. We there- fore reserve the right to modify the design, construction and technology of the product at any time. For this reason, no claims can be made based on the data, illustrations and description in this user manual.
- Page 24 HU-64OG-SYS P.O. Box 144 5490 AC Sint-Oedenrode The Netherlands Telephone: +31(0)413-487000 Telefax: +31(0)413-473903 Website: www.contronics.nl E-mail: info@contronics.nl...
