Assembly

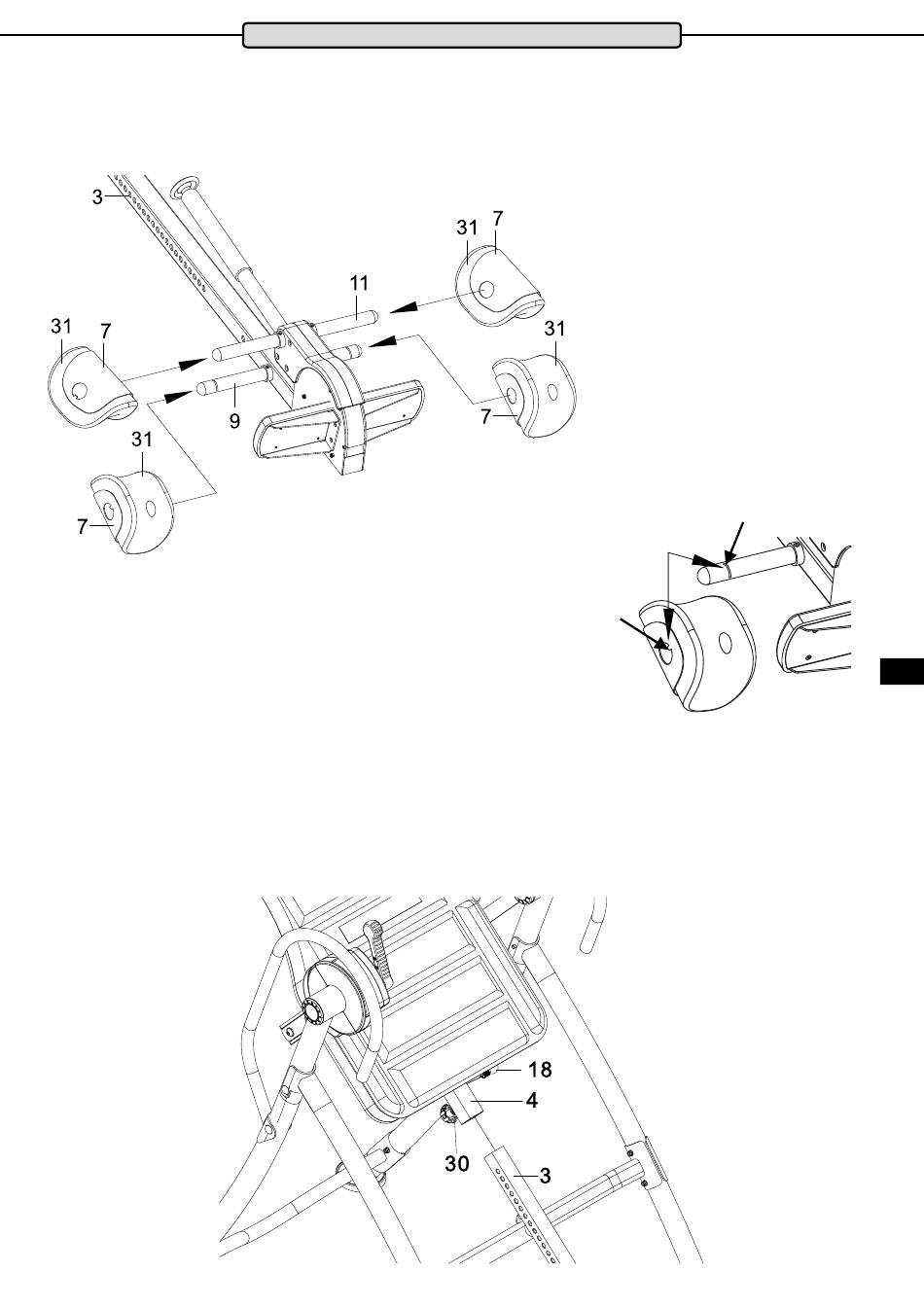

Step 5:
Slide the ankle holders (31) onto the front and rear rods of the leg holder (11 - top & 9 - bottom) as shown in
the illustration. Make sure that the opening with the locking tooth on the ankle holder (31) points outwards and
snaps into the locking hole on the rods (9 & 11).
Locking hole
Locking tooth
ENG
Step 6:
Loosen the knob (30) and pull the safety pin (18) out. Insert the guide tube of the leg frame (3) into the back
frame (4). Snap the safety pin into one of the adjustment holes. Make sure that the safety pin (18) is securely
engaged and tighten the knob (30) firmly.
9
