Summary of Contents for Progression Fitness PRO CLUB 30

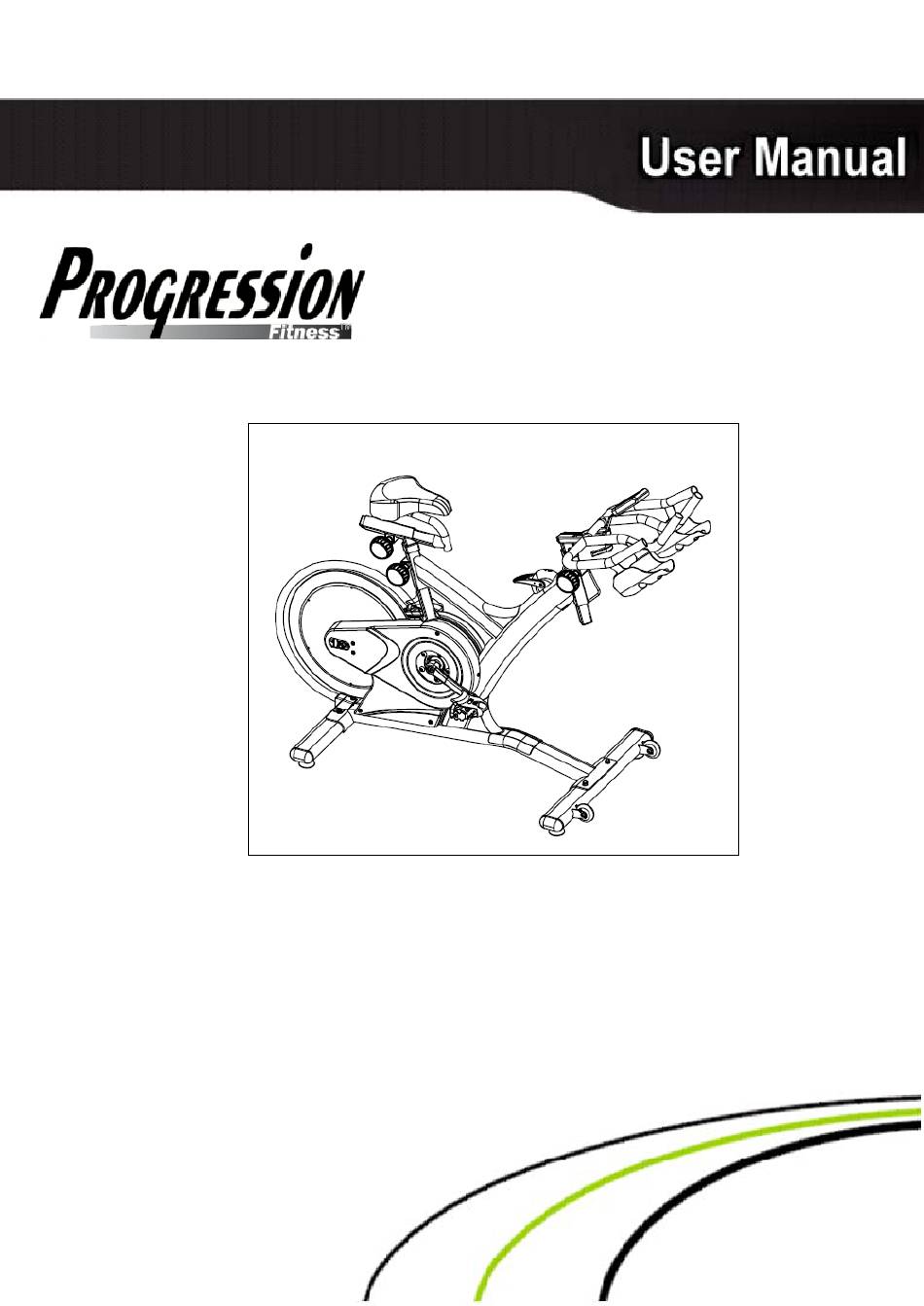

- Page 1 Rear Drive Spin bike w/console PRO CLUB 30 P-Code:EXBPROCLUB30...
-
Page 3: Assembly Drawing
Assembly Drawing... - Page 4 Assembly Step one Attach the front (18) and rear feet (14) to the frame using the nuts (8), washer (9) and bolts (10). Step two Attach the handlebar post (22) by inserting it into the head tube of the frame. Use the knob (6) to adjust and tighten the height to the desired position.
-
Page 5: Exploded Drawing
Exploded Drawing... -
Page 6: Part List
Part list Name Unit No. Name Unit Saddle BB bearing Alloy bind clamp ( L ) BB Axle with plate Spring for release lever Flywheel axle Alloy bind clamp ( R ) Fixed wheel nut Washer for knob Flywheel bearing Knob Flywheel security nut Crank bolt... -
Page 7: Instruction Use
Name Unit No. Name Unit Rubber cover for flywheel Adjuster cable guide Sensor cable Flywheel protection tube Bolt for protection tube Magnetic holder w/magnetic set SET Instruction Use 1) The bike is designed to be used as a “spin “ cycle in fitness studios and health clubs. It has a fixed wheel driven flywheel and should only be used under professional supervision. -
Page 8: Maintenance Chart
Maintenance Chart DESCRIPTION Daily Weekly Monthly Quarterly Annually Keep machine clean: Wipe machine down with clean & dry fabric to clear dirt & sweat. Wipe Anti-rust cream or similar on the seat post set, handlebar set Visual check Check security of handle bar post &... -
Page 9: Limited Warranty
Limited Warranty This product carries the following guarantee against manufacturing defects: * Frame is warranted for 2 years from the date of purchase. * Components are warranted for 1 year. * Warranty is only valid for the original purchaser. * Labor and freight charges are not included. * Normal wear, neglect, abuse, accidents, improper assembly or maintenance, or the installation of parts or accessories not compatible with the original intended use of the bike, as sold, are not... - Page 10 Rear Drive Spin bike w/console PRO CLUB 30 P-Code:EXBPROCLUB30...
