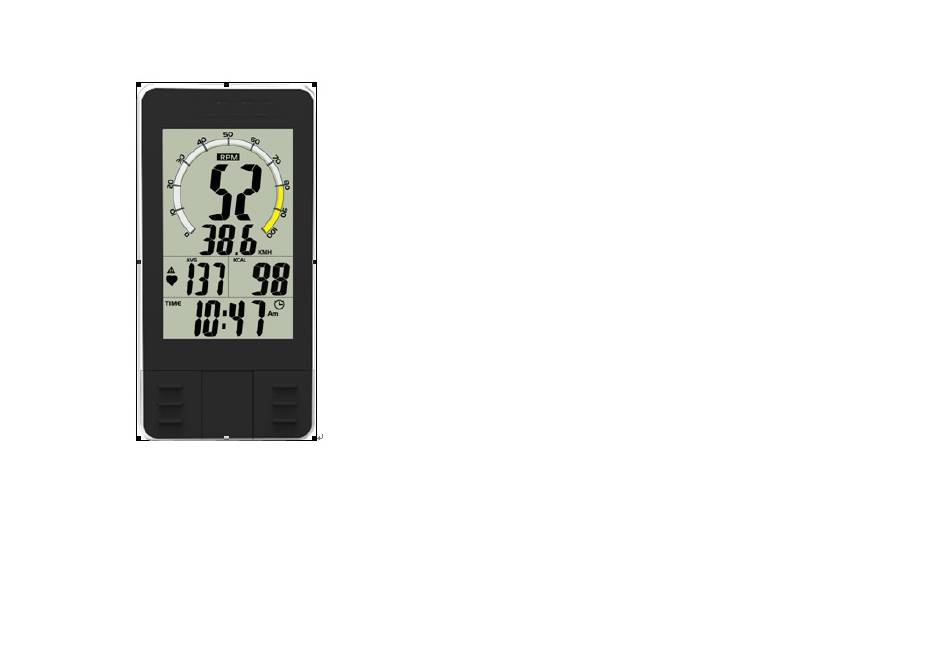

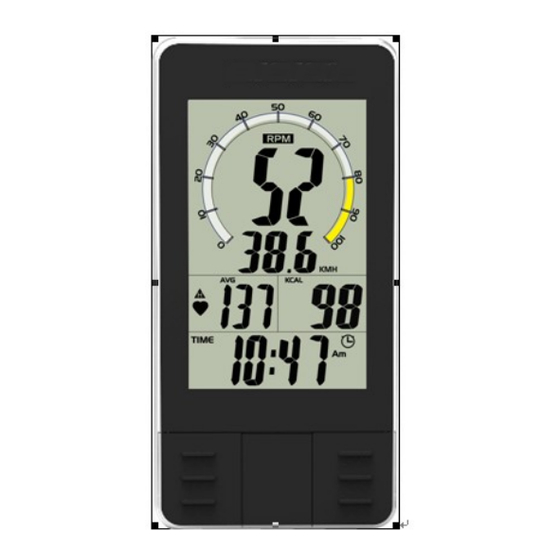

CYCLING CONSOLE
INSTRUCTION MANUAL

SPINNER BIKE CONSOLE SPECIFICATION

CADENCE BAR GRAPHIC: 0~199rpm per Bar
RPM : 0 ~ 199 RPM
SPEED : 0 ~ 99 KM/H
PULSE : 30 ~ 240 BPM
Time : Count down setting range 1~99 Minuets
Count up range
00:01~99:59

IMPORTANT SAFETY INSTRUCTIONS WARNING

BEFORE BEGINNING THIS OR ANY OTHER
EXERCISE PROGRAM, CONSULT A PHYSICIAN.
THE PHYSICIAN CAN HELP YOU BETTER
DETERMINE WHAT ACTIVITIES OR PROGRAMS ARE
MOST SUITED FOR YOU. IF AT ANY TIME DURING
THE WORKOUT YOU FEEL FAINT, OR CHEST PAINS,
OR SEVERE SHORTNESS OF BREATH, STOP
EXERCISING IMMEDIATLELY AND CONSULT A
PHYSICAN.
The Console assembly consists of a computer console, a
magnet, one chest belt (optional), and a speed sensor
transmitter. The sensor in the transmitter counts the number
of times the magnet (mounted on the belt pulley) passes
the sensor. The speed sensor transmitter will then transmit
a coded signal to the console, which contains the
measured value (Speed and Cadence).
Both the computer console and the speed sensor
transmitter use AAA type batteries. Please install the
supplied AAA batteries in the computer console and
speed sensor transmitter before using.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro Club 30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Progression Fitness Pro Club 30

  • Page 1 CYCLING CONSOLE IMPORTANT SAFETY INSTRUCTIONS WARNING BEFORE BEGINNING THIS OR ANY OTHER EXERCISE PROGRAM, CONSULT A PHYSICIAN. THE PHYSICIAN CAN HELP YOU BETTER DETERMINE WHAT ACTIVITIES OR PROGRAMS ARE MOST SUITED FOR YOU. IF AT ANY TIME DURING THE WORKOUT YOU FEEL FAINT, OR CHEST PAINS, OR SEVERE SHORTNESS OF BREATH, STOP EXERCISING IMMEDIATLELY AND CONSULT A PHYSICAN.
  • Page 2 ITEM Check List INSTALLATION OF THE CYCLING MONITOR Sensor Cable & Holder Transmitter This MONITOR can be installed onto most Group Cycling and Spin Style bike handlebars. Magnet Console Installation: Velcro Insert Console into the bracket of Handle bar. Use screw to fix it.
  • Page 3 count up or count down after 3 seconds. DISPLAY WINDOW CADENCE & SPEED Cadence is the measurement of how fast the cranks are rotating in RPM’s. The approximate speed of the bike can also be displayed (MPH/KPH) in the section. In addition to the MPH/KPH, the CADENCE will also display a bar graph that allows the rider to keep track of the approximate cadence that has been achieved.
  • Page 4 ALARM Setting (apply to HR featured models only) Under the TIME MODE, press the ‘SET’ key to select QUICK Start In Power Saving Mode, pressing any Key will bring the Alarm display. The heart rate symbol will also flash to the CONSOLE to ‘QUICK Start’...
  • Page 5 will sound for 3 seconds. Then TIME will change Press the ‘SET’ key to increase maximum heart rate limit. automatically from counting down to counting up from After setting the maximum heart rate, press the MODE 00:01. The user can go into TIMER setting from SPEED key to adjust the minimum heart rate limit.
  • Page 6 SPEED PAIR STAGE (Exclusive in Digital Coded Only) Note: All models will be paired right after production For commercial and maintenance purpose – press and Hold both ‘MODE’ and ‘’SET’ key for 3 seconds to go into the SPEED PAIR STAGE. The user will have to press the small ‘SPEED CONTROL PAIR KEY’...
  • Page 7 Relocate the bike away from any equipment that could potentially interrupt the radio frequency signal, such as a DVD player or television, etc. RPM or HR does not change Press ‘MODE key’ repeatedly to toggle between SPEED (SPD), DISTANCE (DIST), TIME (TIME) and CLOCK (CLK) values.
  • Page 8 CAUTION required to return the defective part. We reserve the right EXTERNAL INTERFERENCE MAY BE CAUSED BY to make changes and improvements in our products OTHER ELECTRONIC DEVISES, SUCH AS: without incurring any obligation to similarly alter products NEARBY TELEVISIONS, STEREO EQUIPMENT, previously purchased.
