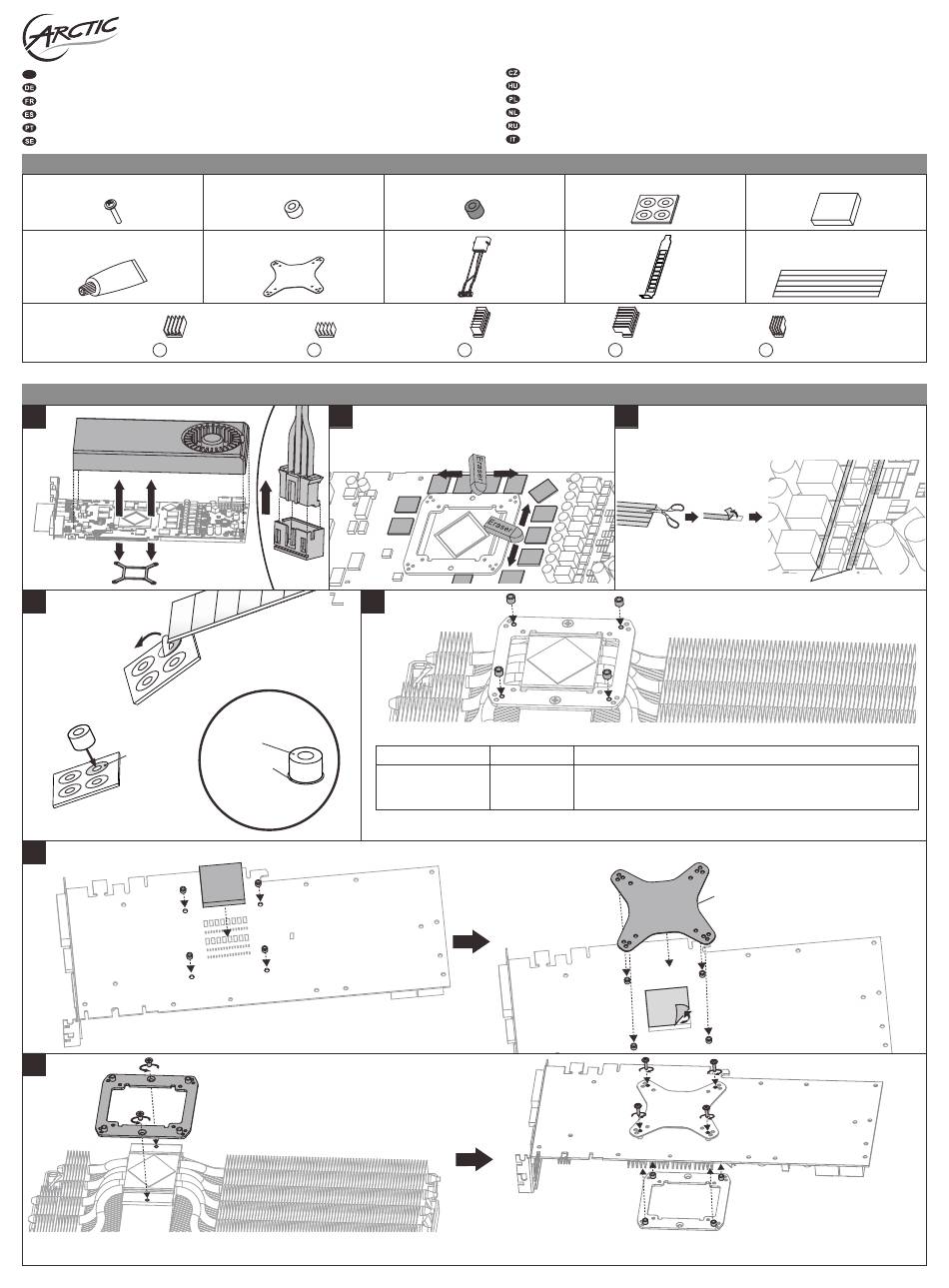

Installation Manual: www.arctic.ac/fileadmin/ax7970/manual_en.pdf
EN
Montageanleitung: www.arctic.ac/fileadmin/ax7970/manual_de.pdf
Guide d'installation: www.arctic.ac/fileadmin/ax7970/manual_fr.pdf
Manual de instalación: www.arctic.ac/fileadmin/ax7970/manual_es.pdf
Manual de Instalação: www.arctic.ac/fileadmin/ax7970/manual_pt.pdf
Installationsmanual: www.arctic.ac/fileadmin/ax7970/manual_se.pdf
Accessories
Screws (M2)
x 4
#Thermal Adhesive (3 g)
x 1
Heatsinks
x 12
A
# After opening the thermal adhesive, use it shortly thereafter. You may purchase additional heatsinks and thermal adhesives at ax7970.arctic.ac
Preparation
1
4
Protective Film
Spacer
Adhesive
Tape
6
Use the EVA foam to cover the back of GPU's circuit components which are densely embedded.
7
Remove the mounting plate from the cooler and fix it on top of your VGA card to the position of the mounting holes. Now you should be able to see the
exact position of the mounting plate occupied area to avoid the interference of the RAM heatsinks and mounting plate.
Spacers (3.0 mm)
x 4
GPU Back Plate
x 1
x 4
B
Not cleaning circuit components thoroughly
2
with an eraser leads to no adhesiveness
of the thermal adhesive at all.
5
Choose the right mounting hole and spacers:
Spacer
Mounting Hole
Adhesive
53.4 mm x 53.4 mm
53.4 mm x 53.4 mm
Tape
Please note this table is for reference only. Refer to your own VGA card holes position during installation.
The updated information is available at ax7970.arctic.ac.
Instalační příručka: www.arctic.ac/fileadmin/ax7970/manual_cz.pdf
Telepítési kézikönyv: www.arctic.ac/fileadmin/ax7970/manual_hu.pdf
Instrukcja montażu: www.arctic.ac/fileadmin/ax7970/manual_pl.pdf
Installatiehandleiding: www.arctic.ac/fileadmin/ax7970/manual_nl.pdf
Руководство пользователя: www.arctic.ac/fileadmin/ax7970/manual_ru.pdf
Manuale di installazione: www.arctic.ac/fileadmin/ax7970/manual_it.pdf
Spacers (3.5 mm)
x 4
4-pin Fan
Power
Adapter
x 1
x 6
C
Use Spacers
3.0 mm
Accelero Xtreme 7970
Adhesive Tape
x 2
VGA Bracket
x 1
x 4
D
Application of insulation tape on components as
Application of insulation tape on components as
3
it may cause short circuit by RAM and
it may cause short circuit by RAM and
VR heatsink interference.
VR heatsink interference.
Insulation Tape
Insulation Tape
Compatible Models
AMD Radeon:
AMD R9 280X, R9 280, HD 7970, 7970 GHz, 7950 Boost, 7950,
7870, 7850, 6970, 6950, 6870, 6850, 6750, 5870, 5850, 5830
Mylar film at the bottom
Installation Manual
EVA Foam
x 1
Insulation Tape
(0.5 cm x 10 cm each)
x 1
x 5
E
