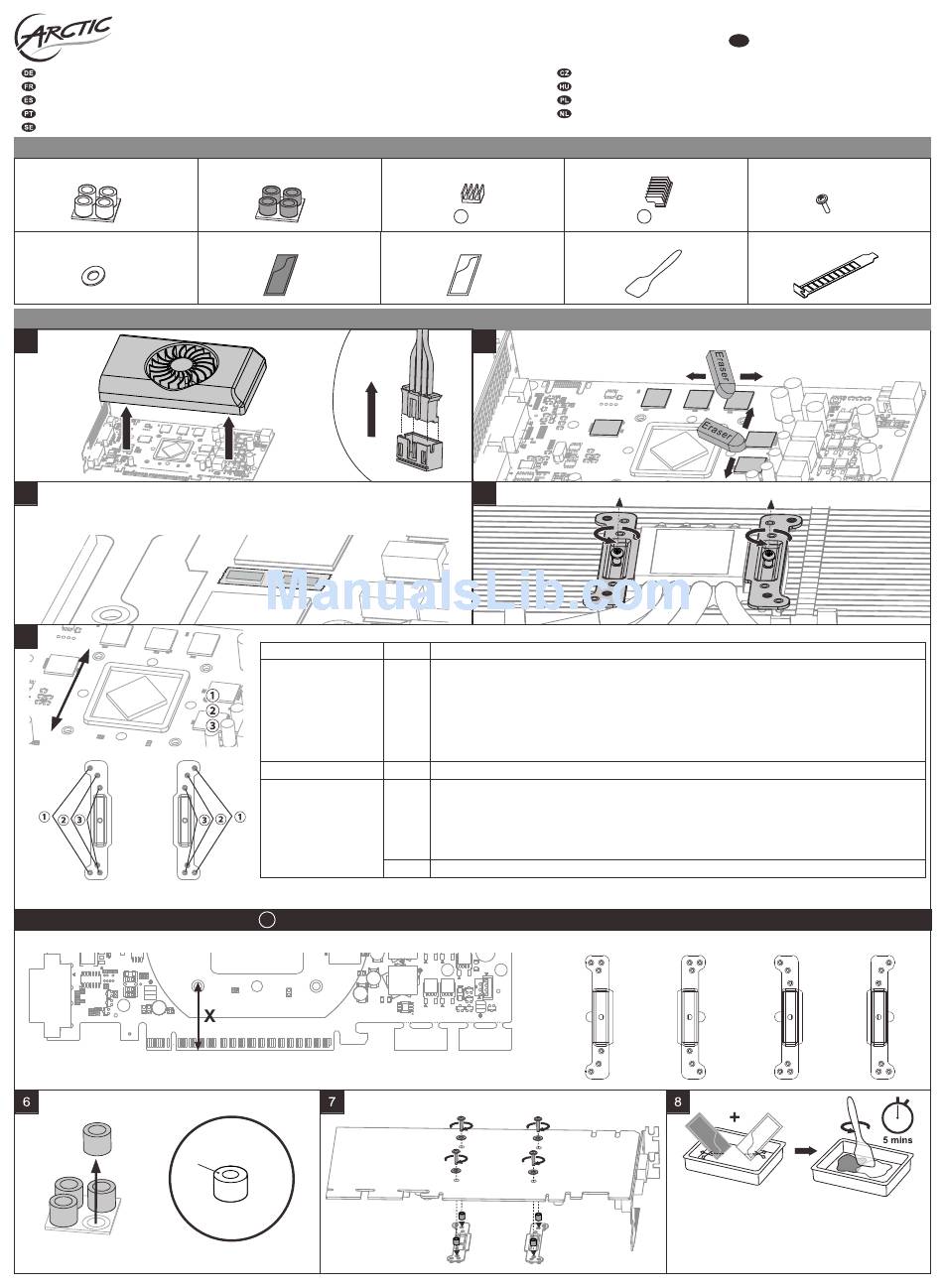

Arctic Accelero S1 PLUS Installation Manual

Montageanleitung: www.arctic.ac/fileadmin/as1p/manual_de.pdf
Guide d'installation: www.arctic.ac/fileadmin/as1p/manual_fr.pdf
Manual de instalación: www.arctic.ac/fileadmin/as1p/manual_es.pdf
Manual de Instalação: www.arctic.ac/fileadmin/as1p/manual_pt.pdf
Installationsmanual: www.arctic.ac/fileadmin/as1p/manual_se.pdf

Accessories

Spacers (4.0 mm) (white)
x 1
Washers
x 4

Preparation

1
Ensure there is no physical interference between the heatsinks and the Ensure there is no physical interference between the heatsinks and the
3
circuit components as it may cause short circuit. Use tape to cover the circuit components as it may cause short circuit. Use tape to cover the
circuit components when necessary. circuit components when necessary.
5
? ?
53.2 mm - use 53.2 mm - use
45.7 mm - use 45.7 mm - use
43.2 mm - use 43.2 mm - use
If your VGA card is using the 3 43.2 mm x 43.2 mm mounting hole
Measure the distance between the bottom mounting hole and the edge of the card. Measure the distance between the bottom mounting hole and the edge of the card.
If X > 25 mm, use mounting clip in Orientation A.
If X < 25 mm, use mounting clip in Orientation B.
Spacer
Spacer
Spacers (3.5 mm) (black)
x 1
G-1 (Grey Compound 1.5 g) x 1
x 1

Choose the right mounting hole:

Mounting Hole
① ① 53.2 mm x 53.2 mm
② ② 45.7 mm x 45.7 mm
③ ③ 43.2 mm x 43.2 mm
Please note this table is for reference only. Refer to your own VGA card holes position during installation.
The updated information is available at as1p.arctic.ac
x 4
Heatsinks
x 8
A
G-1 (White Compound 1.5 g) x 1
x 1
Not cleaning circuit components thoroughly with an eraser leads to Not cleaning circuit components thoroughly with an eraser leads to
2
no adhesiveness of the G-1. no adhesiveness of the G-1.
4
Spacer Compatible Models
3.5 mm
NVIDIA GeForce:
GTS 450, 250, 240 (OEM), 150 (OEM), GT 340, 330, 320, 130 (OEM), 9800 GTX+, 9800 GTX, 9800 GT,
9600 GT, 9600 GSO 512, 9600 GSO, 9500 GT (not LP), 8800 GTS 512 (G92), 8800 GTS (G92), 8800
GT, 8800 GS (9600GSO), 8600 GTS, 8600 GT GDDR3, 8600 GT DDR2, 7950 GT, 7900 GTX, 7900 GT,
7900 GS, 7800 GTX 512, 7800 GTX, 7800 GT, 7600 GT
AMD Radeon:
HD 6870, 6850, 6790, 5850, 5830, 4870, 4850, 4830, 3870, 3850, 3690, X1950 XTX, X1950 XT, X1950
Pro, X1950 GT, X1900 XTX, X1900 XT, X1900 GT, X1800 XT, X1800 XL, X1800 GTO
4.0 mm NVIDIA GeForce: GT 440
4.0 mm NVIDIA GeForce:
GTX 650 Ti, GT 240, GT 220 (not LP), 9400 GT (not LP), 8500 GT (not LP), 7600 GS, 7200 GS (TC)
AMD Radeon:
HD 7790, 6770, 6750, 6670, 6670 (LP), 6570, 5770, 5550 (OEM), 4770, 4730, 4670, 4650, 4550,
4350 (LP), 3650, 3470, 3450, 2600 XT, 2600 Pro, 2400 XT, 2400 Pro, X1650 XT, X1650 Pro,
X1600 XT,X 1600 Pro, X1550, X1300 XT, X1300 Pro, X1300
3.5 mm
NVIDIA GeForce: GTX 650, GT 640
Accelero S1 PLUS
