CONTROLS

The TransCube is designed and built
with components that allow for easy
and convenient transporting, filling
and transferring fuel. Each operator
should be trained in TransCube opera-
tion before using and the controls on
the unit. They must also be required
to know all the legal and regulatory
regulations relating to the transporting
and handling of fuel.
Review the controls on the unit prior
to using and as a part of the regular
training program:
1. Pump ON/OFF:
This lever controls the power to
the transfer pump on the top of the
tank. Move the lever up to turn
the pump ON and down to turn
OFF.
2. Nozzle:
NOTE
The power cord must be connect-
ed or attached to a power source
for the pump to run.
NOTE
Depress the trigger on the hand-
held nozzle when transferring
fuel.
This hand-held nozzle is used to
transfer fuel. Depress the trig-
ger on the nozzle to transfer fuel.
The pump must be connected
to a power supply and turned on
before transferring fuel.

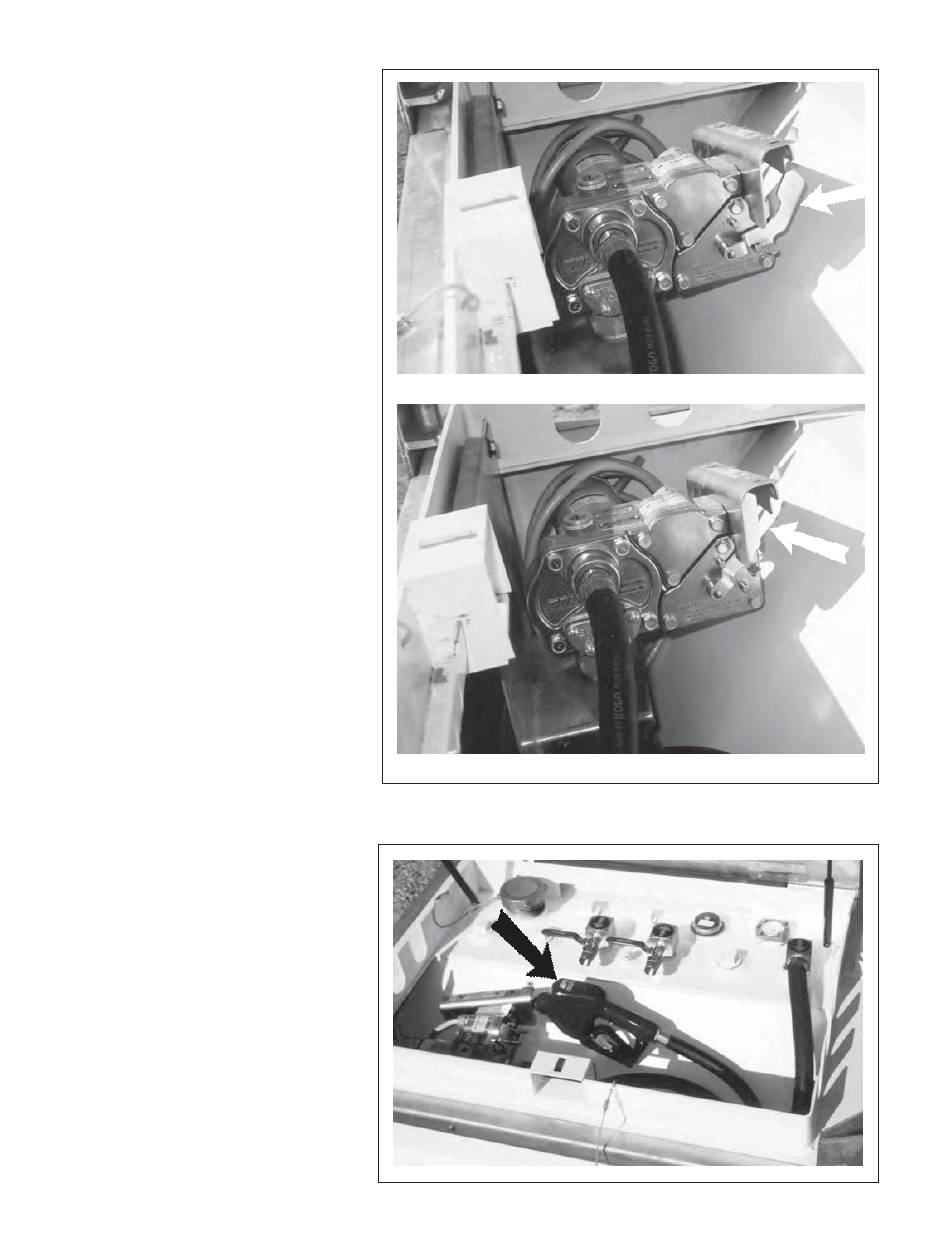

Fig. 2 UNDER LID
Fig. 3 NOZZLE
Pump OFF
Pump ON
