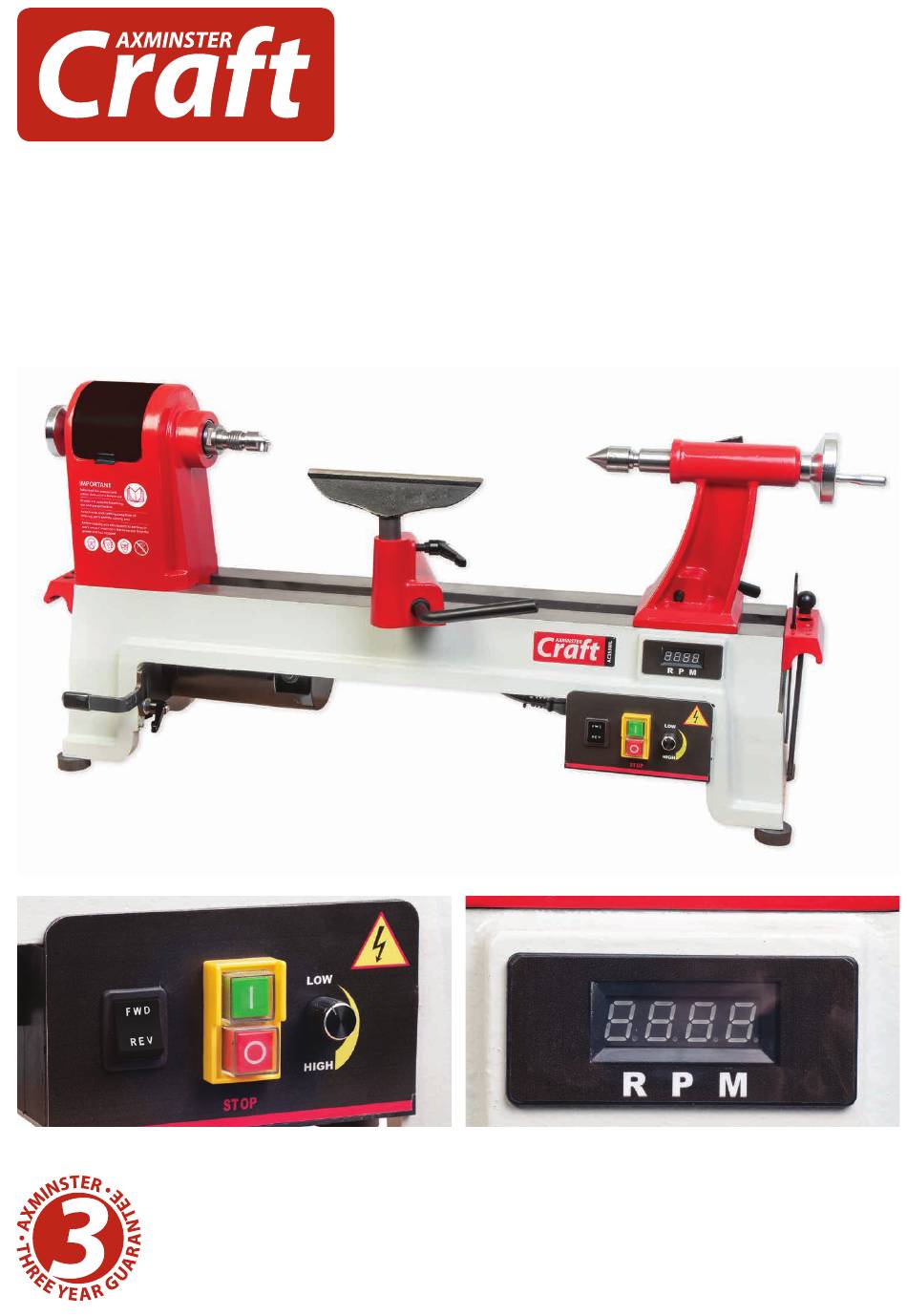

- Page 1 Code 104792 Original Instructions AC355WL Woodturning Lathe AT&M: 02/07/2019 BOOK REF : 007295...
- Page 2 06/42/EC - Annex I/05.2006 Type Woodturning Lathe Model AC355WL and conforms to the machinery example for which the EC Type-Examination Certificate No AM 50387407 has been issued by Laizhou Planet Machinery Co., Ltd. Signed at: Yutai West StreetLaizhou, Shandong 261400 China and complies with the relevant essential health and safety requirements.
-
Page 3: What's Included
What’s Included Quantity Item Part Model Number AC355WL Woodturning Lathe 204mm Tool Rest 100mm Faceplate Spanner Push Rod Axminster 4 Prong Drive Centre (Code 340106) Axminster Standard 60˚ Live Centre (Code 340203) Power Cable Instruction Manual... -
Page 4: General Instructions For 230V Machines
General Instructions for 230V Machines • Carry out a final check e.g. check the cutting tool The following will enable you to observe good working practices, keep yourself and fellow workers safe and maintain is securely tightened in the machine and the correct your tools and equipment in good working order. -
Page 5: Specification
Specification Code 104792 Model AC355WL Rating Craft Power 750W 230V 50Hz 1ph Speed 250-3,550rpm Spindle Thread T38 M33 x 3.5mm Taper Tailstock Distance Between Centres 510mm Max Diameter over Bed 355mm Tool Rest Stem Diameter 25.4mm Overall L x W x H... - Page 6 Assembly 3. Inset the tool rest (B) into the machined hole on the banjo arm and secure using the lift and shift handle lock, see fig 06. Fig 06 5. Locate the power cable and insert the connector into the three pinned socket to the side of the control box, see fig 09.
-
Page 7: Illustration And Parts Description
Illustration and Parts Description Headstock wheel Headstock access panel Tailstock Tailstock barrel operating handle 4 Prong drive centre 60˚ Live centre Lift & shift handle Banjo arm lock Motor handle lock Control box Motor operating handle Tool holder/carrying handle 24 Indexing stops Drive belt Spindle pulley with a 24 indexing stop facility Spindle speed digital indicator... - Page 8 Illustration and Parts Description Forward/Reverse switch to change the spindle’s direction (A) Variable speed control knob (DO NOT operate this switch while lathe is in motion) 250-3,550rpm ON/OFF NVR switch (B) Handle (A) to raise/lower the motor for drive belt position Tool holder/carrying handle Motor lock (B) on either end of lathe bed...
- Page 9 Illustration and Parts Description DO NOT USE THE INDEX PIN TO LOCK THE SPINDLE WHEN REMOVING OR MOUNTING THE FACEPLATE. Tailstock barrel scale Indexing pin Headstock Tailstock Tool rest Lathe bed Banjo arm Control box with heat sink DC brush motor Motor brush access port Tailstock lock handle Lathe foot...
- Page 10 Operating Instructions Fig 13-14 DISCONNECT THE LATHE FROM THE MAINS BEFORE CONTINUING! Indexing Facility The indexing facility is useful for fluted columns, clock faces and accurate hole positioning. The index pulley has 24 positions, see fig 10-11. Fig 10-11 Access panel Indexing slot Panel handle Removing the Drive &...
- Page 11 Operating Instructions Fig 17 Fig 19 Hex key Tailstock travel Locking handle Fig 20 DISCONNECT THE LATHE FROM THE MAINS BEFORE CONTINUING! Mounting the Faceplate DO NOT USE THE INDEX PIN TO LOCK THE SPINDLE WHEN REMOVING OR MOUNTING THE FACEPLATE. NOTE: LOOSEN THE TWO GRUBSCREWS SUFFICIENTLY WHEN MOUNTING OR REMOVING THE FACEPLATE.
- Page 12 Operating Instructions Changing the Lathe Speed DISCONNECT THE LATHE FROM THE MAINS BEFORE CONTINUING! 1. Open the access panel, see fig 10-11. Loosen the four screws holding the motor pulley access plate (A) and remove, see fig 21-22. Fig 21-22 Fig 25-26-27 2.
- Page 13 Operating Instructions MAKE SURE THE BELT IS INSERTED CORRECTLY INTO THE PULLEY GROOVES! SPINDLE 2. Select ‘Forward or Reverse’ on the selector switch, DO NOT change direction while in operation, see fig 30. 3. Make sure the work piece is secure and all tools are clear of the work area.
-
Page 14: Optional Accessories
Optional Accessories Code 104794 Floor stand assembly The floor stand for the Axminster Craft AC355WL wood turning lathe is made from box section steel and simple to assemble and sturdy enough to hold the lathe securely. It is adjustable in height from 610mm-875mm to create a comfortable working height. -
Page 15: Maintenance
Maintenance NOTE: Take careful note of the 3. If they are in good condition, re-fit. Motor Brushes orientation of the brushes, remember If they were worn to the ‘Line’ replace that they have bedded themselves to with new brushes, see fig 35. For after the profile of the commutator in that sales enquires, call 03332 406406. - Page 16 Exploded Diagrams/Lists...
- Page 17 Exploded Diagrams/Lists PART NO DISCRIPTION SET SCREW M8X10 FOOT TAILSTOCK LOCK LEVER BELT TENSION LOCK LEVER TAILSTOCK CLAMP BOLT FLAT WASHER TAILSTOCK CLAMP HDCAP SCREW M6X16 NUT M12 CAP SCREW M8X16 C-RING C-RING BELT DOOR ADJUSTING HANDLE HEX HEAD SCREW M5X10 TOOL REST CLAMP BOLT HD SCREW M8X12 PHLP HD SCREW M4X8...
-
Page 18: Wiring Diagram
Wiring Diagram... - Page 19 Notes...
- Page 20 The Axminster guarantee is available on Craft, Trade, Engineer, Air Tools & CNC Technology Series machines Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminster.co.uk/3years The packaging is suitable for recycling.
