- Page 1 Code 105118 Original Instructions AC240WL Woodturning Lathe AT&M: 22/05/2019 BOOK REF : 105760...
-
Page 2: Eu Declaration Of Conformity
06/42/EC - Annex I/05.2006 EN 61000-3-2:2014 Woodturning Lathe Type EN 55014-2:2015 AC240WL Model and conforms to the machinery example for which the EC Type-Examination Certificate No AM 50380718, AM 50361061, AE 50354995 has been issued by Laizhou Chunlin Machinery Co., Ltd. -
Page 3: What's Included
What’s Included Quantity Item Part Model Number AC240WL Woodturning Lathe 80mm Faceplate (Fitted to Headstock) 140mm Tool Rest (Fitted in Banjo) Banjo Arm (Fitted to lathe bed) Tailstock Operating Wheel Handle Axminster 4 Prong Drive Centre Code 340106 Axminster Standard 60˚ Live Centre... -
Page 4: Specific Safety Instructions For Woodturning Lathes
General Instruction for 230V Machines The following will enable you to observe good working • Leave machine unplugged until work is about to practices, keep yourself and fellow workers safe and commence. • Always disconnect by pulling on the plug body maintain your tools and equipment in good working order. -
Page 5: Specification
Specification Code 105118 Model AC240WL Power 375W Speed (5) 760-3,200rpm Spindle Taper Spindle Thread 1” x 8tpi (Ref T04M) Taper Tailstock Distance Between Centres 440mm(17”), 965mm(38”) with Centres extension Max Diameter over Bed 240mm Overall L x W x H... -
Page 6: Illustration And Parts Description

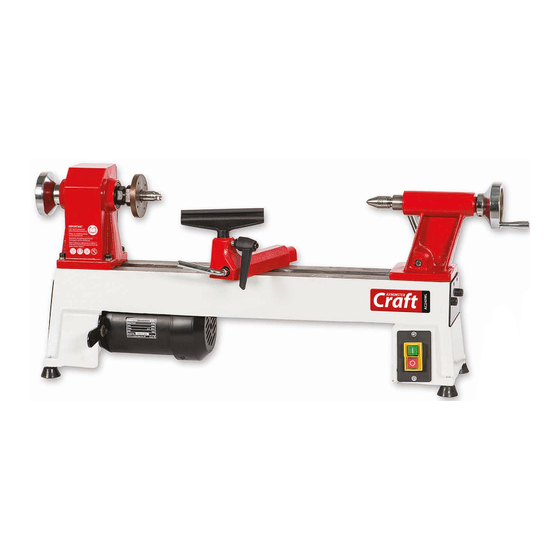

Illustration and Parts Description Faceplate Headstock Drive centre spindle wheel Headstock Tailstock handle Tailstock Live centre Banjo Lathe bed Banjo lock Motor On/off Switch Shaped handle... - Page 7 Illustration and Parts Description Tailstock barrel lock Toolrest lock Toolrest Motor Tailstock lock Access plate Motor pivot bolt...
-
Page 8: Removing Drive/Live Centres
Removing Drive/Live Centres To remove the Drive and Live Centres, locate the push rod (H), while holding the Live Centre insert the push rod through the centre hole of the ailstock wheel and push the Live Centre out, see fig 4. Repeat the procedure for the Drive Centre in the headstock. -
Page 9: Cover Plate 1
Changing the Spindle Speed Access plate DISCONNECT THE MACHINE FROM THE MAINS SUPPLY! Star knob Note. The lowest speed pulley combination is furthest from the faceplate, i.e. smallest motor pulley diameter to largest spindle pulley diameter. 1. Loosen the ‘star knobs’ that secure the access plates on the headstock assembly, see figs A-B. - Page 10 Exploded Diagrams/Lists...
- Page 11 Exploded Diagrams/Lists Hex. Socket Set Screw M6 PART NO DESCRIPTION x 10 Motor Pulley Flat Head Screw Semicircle Head Screw Motor Plate Retaining Plate Motor Handwheel Hex. Socket Head Screw M8 Tailstock x 20 Lock Lever Ring Retaining 12 Eccentric Axis Tool Rest Tail Axis Tool Rest Base...
- Page 12 The Axminster guarantee is available on Craft, Trade, Engineer, Air Tools & CNC Technology Series machines Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminster.co.uk/3years The packaging is suitable for recycling.
