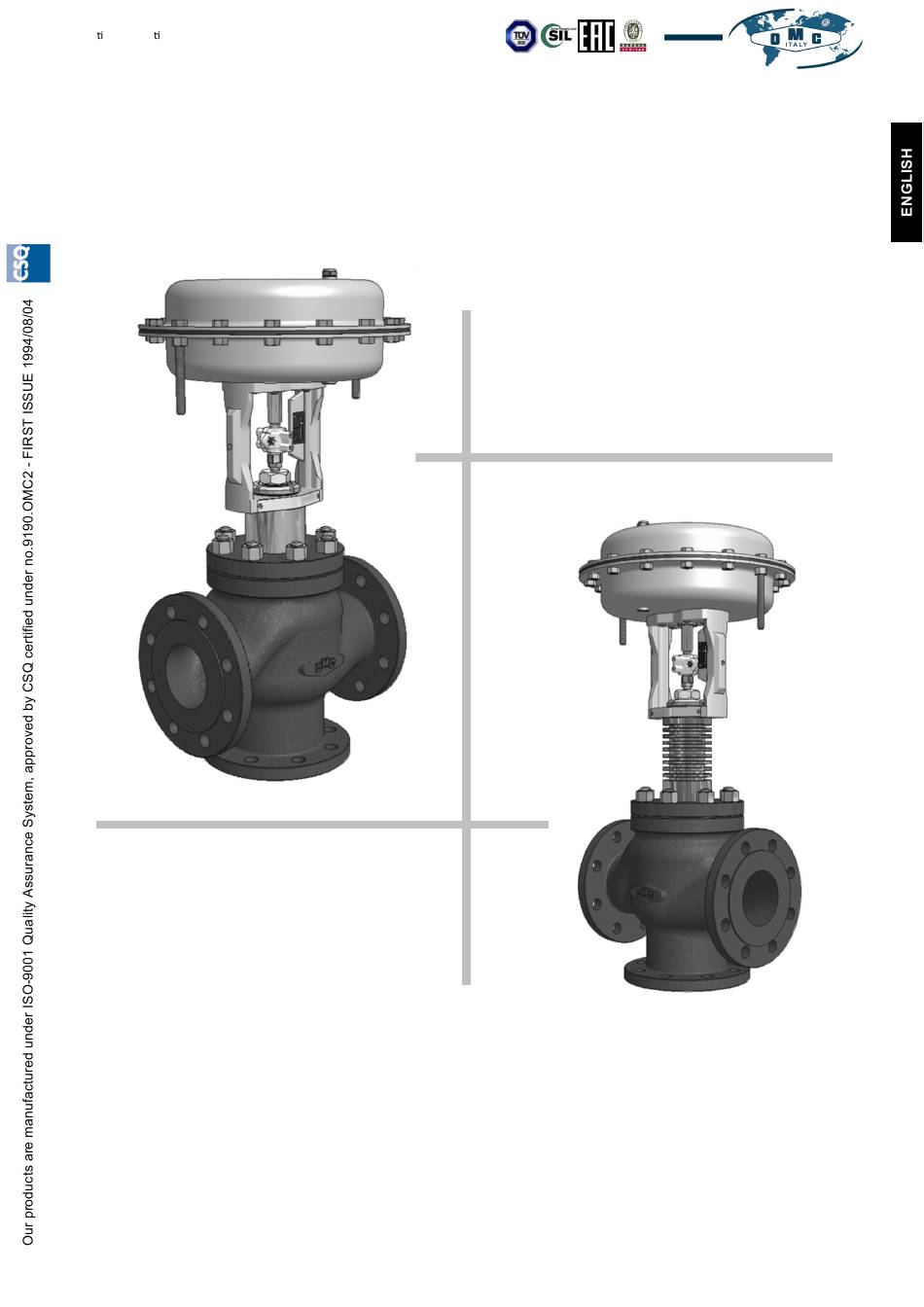

Installa on, Opera on and Maintenance Manual TD10/...‐en Rev.03/2018
INSTALLATION, OPERATION AND
MAINTENANCE MANUAL
Three-way valves
Diverter valves Series AD10 - TD10
Mixing valves Serie AM10 - TM10
OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD10 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OMC AD10 Series

Summary of Contents for OMC AD10 Series

  • Page 1 INSTALLATION, OPERATION AND MAINTENANCE MANUAL Three-way valves Diverter valves Series AD10 - TD10 Mixing valves Serie AM10 - TM10 OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468 Page 1...

  • Page 2: Table Of Contents

    6.0 SIZES OF PLUG CONNECTION 7.0 PERIODICAL OPERATIONS 8.0 AVAILABLE SPARE PARTS 9.0 PRESSURE/TEMPERATURE REPORT OMC-TUV-00 Rev.03/2018 Page 2 OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468...

  • Page 3: Safety Information

    (0 bar) and at ambient temperature. OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468 Page 3...

  • Page 4: Tools And Consumable Parts

    Page 4 OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468...

  • Page 5: Installation

    Pic. 2 Tightening sequence OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468 Page 5...

  • Page 6: Actuator Connection

    3.02 CONNECTION OF ELECTRIC ACTUATOR For the connection of the electric actuator refer to its specific manual. Page 6 OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468...

  • Page 7: Maintenance

    Pic. 5 Valves DN15 ÷ 100 / 1/2” ÷ 4” Pic. 6 Valves DN125 ÷ 200 / 6” ÷ 8” OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468 Page 7...
  • Page 8 Attention: when the plug is being replaced it is required to replace also the packing gland (see next paragraphs). Pic. 7 Diverter valve Page 8 OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468...
  • Page 9 Attention: when the plug is being replaced it is required to replace also the packing gland (see next paragraphs). Pic. 8 Mixing valve OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468 Page 9...
  • Page 10 Attention: it is always recommended to replace also the packing gland (see next paragraphs). Pic. 9 Diverter valve with bellows Page 10 OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468...
  • Page 11 Attention: it is always recommended to replace also the packing gland (see next paragraphs). Pic. 10 Mixing valve with bellows OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468 Page 11...

  • Page 12: Replacement Of The Stem Packing Gland

    Pic. 14 “EcoPack 1” Pic. 15 “LP400” Pic. 16 “SP400” Pic. 17 “HP400” Pic. 18 “EcoPack 2” Page 12 OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468...

  • Page 13: Tightening Torques

    DN50 2” DN65 2” 1/2 DN80 3” DN100 4” DN125 5” DN150 6” DN200 8” Pic. 19 OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468 Page 13...
  • Page 14 Pic. 20 Valves DN15 ÷ 100 / 1/2” ÷ 4” Pic. 21 Valves DN125 ÷ 200 / 6” ÷ 8” OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468 Page 14...
  • Page 15 Pic. 23 Valves DN65 ÷ 100 / 2”1/2” ÷ 4” Closed plug Closed plug Pic. 23 Valves DN125÷ 200 / 5”÷4” Closed plug OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468 Page 15...

  • Page 16: Periodical Operations

    The actual use of the valve depends on the combination of the materials of which it is made up. Page 16 OMC s.r.l. Via G. Galilei, 18 - 20060 - Cassina de Pecchi (MI) - ITALY - www.omcsrl.com - Tel.: (+39) 02.95.28.468...
