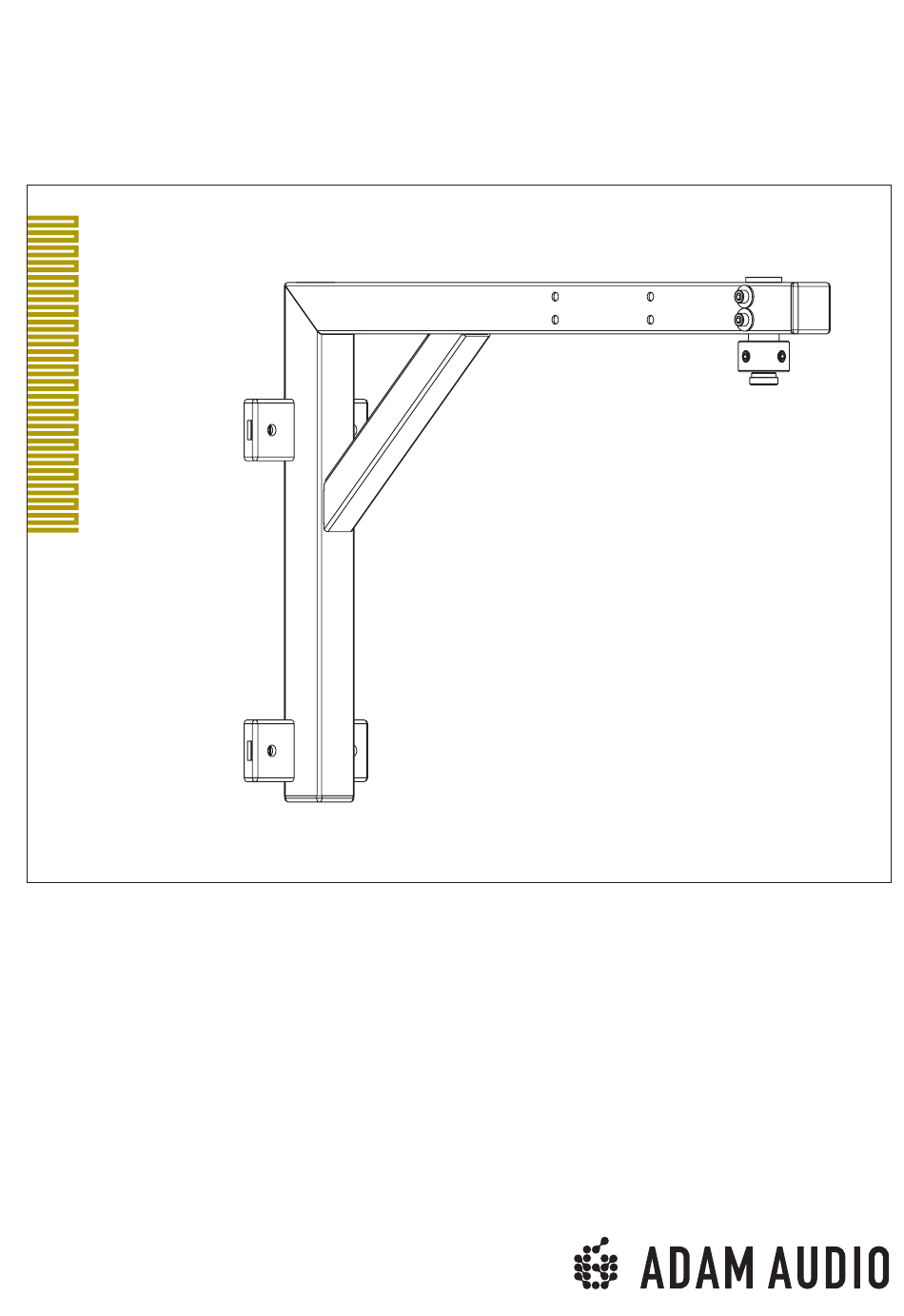

- Page 1 USER MANUAL WALL MOUNTING Order No. 31102600 GERMAN AUDIO ENGINEERING...
-
Page 2: Important Notes
→ Read the operating instructions for the speaker system, which is to be mounted on this mounting device, and follow its installation notes. → Only use accessories and spare parts from the ADAM Audio range. → Observe all relevant regional, national and international regulations and guidelines when installing. - Page 3 On page 10 of this user manual and in the download area of www.adam-audio.com you will find a schematic illustration as an aid for mounting ADAM Audio’s accessories. Only use those fastening materials shown in this illustration. Parts List: 1 x Wall mounting...
- Page 4 DANGER! Dropping the speaker system may cause injury to personnel and or property damage. There is a risk that the speaker system could fall down until it and the mounting are attached to cylindrical bracket B. As long as this installation has not yet been carried out, the speaker system must be held by another qualified specialist.
- Page 5 Observe all assembly and safety instructions. → Do not move the monitor to the desired angle of inclination until it is fully connected to the ADAM Audio mounting hardware and firmly attached to the wall mount. → Tighten all supplied bolts and nuts with a torque of 20 Nm.
- Page 6 Attach the monitor connected to the ADAM Audio mounting kit to the cylindrical bracket B. Follow the instructions below (see figs. 2 to 7). WALL MOUNTING...
- Page 7 INSTALLING → Slide the retaining ring upwards. Tighten one of the 4 hexagon socket head screws so that the locking ring can not slide off. → Attach the mounting hardware already attached to the speaker system to the cylindrical bracket B. Follow the three steps shown in Figures 3, 4 and 5.
- Page 8 → Tighten all four hexagon socket screws F with a torque of 15 Nm. The speaker system is now securely attached to the cylindrical bracket B. → Move the monitor to the desired vertical position (tilt angle). WALL MOUNTING...
- Page 9 3,1 kg (6.7 lbs) Dimensions (H x W x D): 410 mm x 565 mm x 126 mm (16.1″ x 22.2″ x 5″) Max. load: 37 kg (81.6 lbs) Warranty Our current warranty conditions may be found at www.adam-audio.com. WALL MOUNTING...
-
Page 10: Mounting Accessories
MOUNTING ACCESSORIES Article Description Order No. MOUNTING BRACKET FOR S2V 31102100 31102200 MOUNTING BRACKET FOR S3H 31102300 MOUNTING BRACKET FOR S3V 31102400 ADAPTER PLATE FOR MOUNTING BRACKET CEILING MOUNT 31102500 31102600 WALL MOUNTING TELESCOPIC BOOM FOR CEILING MOUNT 31102700 WALL MOUNTING... - Page 11 WALL MOUNTING...
- Page 12 OFFICIAL REQUIREMENTS: THE FOLLOWING SHOULD BE STRICTLY ADHERED TO 1. At least every 3 months, check that the wall mount, mounting hardware, all cables and their connectors, as well as the monitor itself, are in serviceable condition. Check that all screws are tightened.
- Page 13 © ADAM Audio GmbH 2018 Even if all efforts have been made to ensure the correctness of the information contained herein, the ADAM Audio GmbH cannot be held responsible for potential errors or missing information. All specifications are subject to change without notice.
- Page 14 ADAM AUDIO GMBH ADAM AUDIO UK BERLIN, GERMANY EMAIL: UK-INFO@ADAM-AUDIO.COM ADAM AUDIO USA INC. T +49 30-863 00 97-0 F +49 30-863 00 97-7 EMAIL: USA-INFO@ADAM-AUDIO.COM INFO@ADAM-AUDIO.COM WWW.ADAM-AUDIO.COM...
