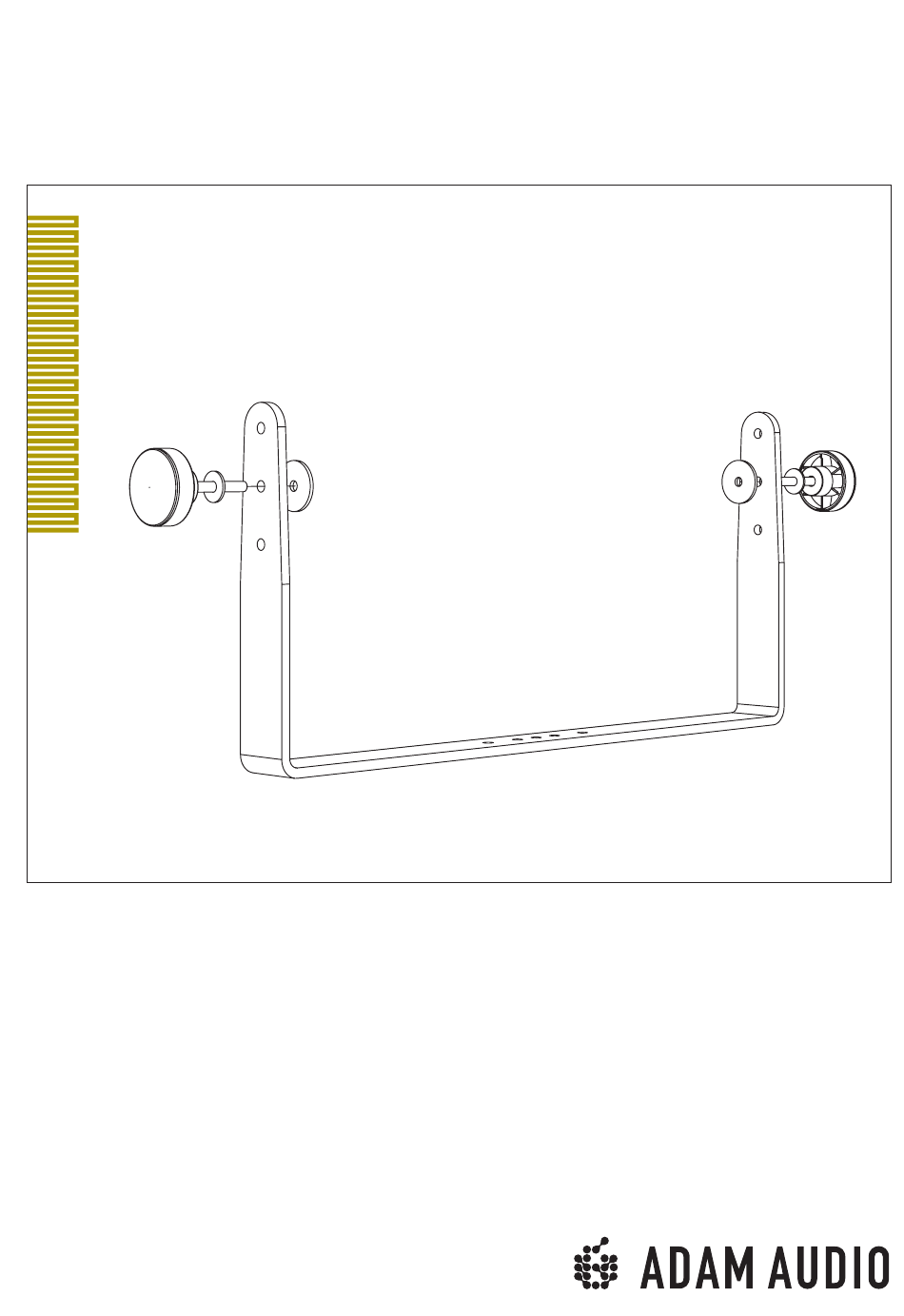

- Page 1 USER MANUAL MOUNTING BRACKET FOR ADAM S3H Order No. 31102200 GERMAN AUDIO ENGINEERING...
-
Page 2: Important Notes
→ Read the operating instructions for the speaker system, which is to be mounted on this mounting device, and follow its installation notes. → Only use accessories and spare parts from the ADAM Audio range. → Observe all relevant regional, national and international regulations and guidelines when installing. - Page 3 On page 8 of this user manual and in the download area of www.adam-audio.com you will find a schematic illustration as an aid for mounting ADAM Audio’s accessories. Only use those fastening materials shown in this illustration. DANGER! Dropping the speaker system or its mounting accessory(ies) may result in injuries to personnel and damage to property.
- Page 4 If you use screws other than the original screws B, there is a risk that the speaker system or mounting accessories may fall down. Only use the original screws when attaching the mounting bracket to a monitor. MOUNTING BRACKET FOR ADAM S3H...
- Page 5 → You may attach the bracket to the top or bottom of the speaker system. → If you wish to use the speaker in a hanging position, attach the mounting bracket on the top of the speaker. MOUNTING BRACKET FOR ADAM S3H...
- Page 6 → If necessary, attach additional mounting accessories from ADAM Audio (see graphic design overview on page 8) to the mounting bracket. Always refer to these assembly and safety instructions, which are enclosed with the accessories.
- Page 7 Dimensions (H x W x D): 290 mm x 607 mm x 50 mm (11.4″ x 23.9″ x 2″) Max. load: 28,6 kg (63 lbs) Warranty Our current warranty conditions may be found at www.adam-audio.com MOUNTING BRACKET FOR ADAM S3H...
-
Page 8: Mounting Accessories
MOUNTING ACCESSORIES Article Description Order No. MOUNTING BRACKET FOR S3H 31102200 31102400 ADAPTER PLATE FOR MOUNTING BRACKET 31102500 CEILING MOUNT WALL MOUNTING 31102600 TELESCOPIC BOOM FOR 31102700 CEILING MOUNT MOUNTING BRACKET FOR ADAM S3H... - Page 9 MOUNTING BRACKET FOR ADAM S3H...
- Page 10 4. Ensure that at all times the monitor, the tripod and /or supporting beam are prevented from tipping over. Should you deviate from any of the above installation and safety instructions, or should any of the items become damaged, you must immediately uninstall the entire system. MOUNTING BRACKET FOR ADAM S3H...
- Page 11 © ADAM Audio GmbH 2018 Even if all efforts have been made to ensure the correctness of the information contained herein, the ADAM Audio GmbH cannot be held responsible for potential errors or missing information. All specifications are subject to change without notice.
