Digital Photo
Frame
DPF-E710
Operating Instructions
Before operating this unit, please read this manual thoroughly and
retain it for future reference.
© 2010 Sony Corporation
4-208-677-12 (1)
For your safety
Let's get the photo
frame ready
Let's view an image
Try using various functions
Troubleshooting
Additional information
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sony S-Frame DPF-E710
Summary of Contents for Sony S-Frame DPF-E710
-

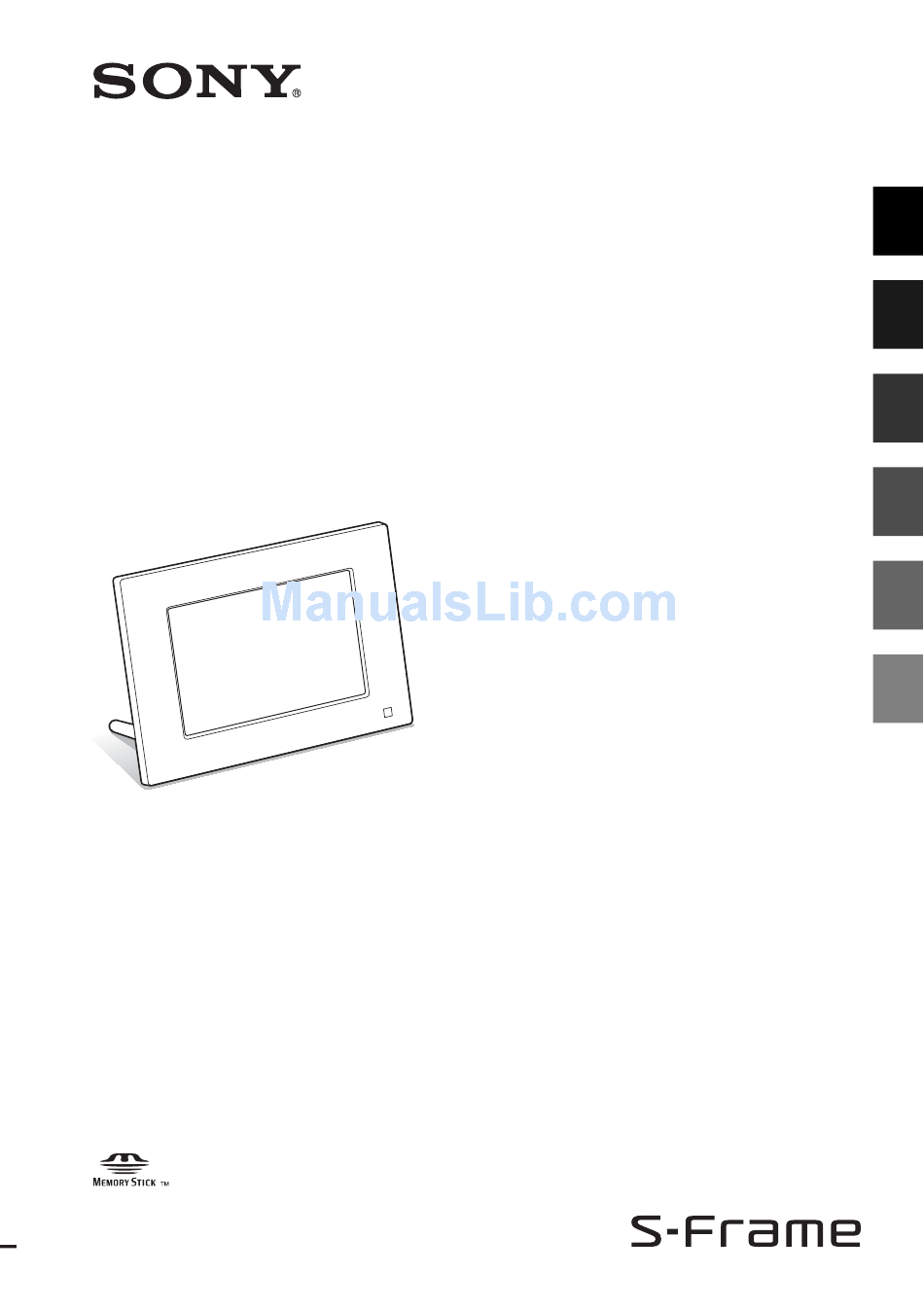

Page 1: Digital Photo Frame
Digital Photo Frame DPF-E710 Operating Instructions Before operating this unit, please read this manual thoroughly and retain it for future reference. © 2010 Sony Corporation 4-208-677-12 (1) For your safety Let’s get the photo frame ready Let’s view an image... - Page 2 Notice for the customers in the countries applying EU Directives The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
-
Page 3: Read This Before Using
CONNECTION WITH THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein may also be governed by the terms of a separate user license agreement. -
Page 4: Table Of Contents
Table of Contents Read this before using ...3 For your safety Checking included items ...6 Identifying the parts ...7 Digital photo frame ... 7 Remote control ... 8 Let’s get the photo frame ready Remote control ...9 Stand ...9 To display the photo frame on the wall ... 10 Turning the photo frame on ...11... - Page 5 Troubleshooting If an error message appears ... 21 If trouble occurs ... 21 Additional information Precautions ... 23 Installation ... 23 Cleaning ... 23 Restrictions on duplication ... 23 Disposing of the photo frame ... 23 Specifications ... 24 On trademarks and copyrights ... 25...
-
Page 6: For Your Safety
(.page 11) The supplied CD-ROM contains the Digital Photo Frame Handbook that explains operations and setups of the digital photo frame in detail. To view the handbook, insert the CD-ROM into the computer and double-click the Handbook icon. (To display the... -
Page 7: Identifying The Parts
Identifying the parts x Digital photo frame Front Rear Direction (v/V) buttons Direction (B/b) buttons VIEW MODE button (.page 14) 1 (on/standby) button USB mini B connector (.page 20) Memory card slot (.page 13) Holes for hanging unit on the wall DC IN 5 V jack (.page 11) -
Page 8: Remote Control
x Remote control SLIDE-SHOW ( ) button CLOCK ( ) button MENU button BACK button SELECT DEVICE button ROTATE ( ) button About descriptions in this manual The operations described in this manual are based on remote control operation. When an operation is performed differently, for example, with the remote control and the buttons on the photo frame, it will be explained in a tip. -
Page 9: Let's Get The Photo Frame Ready
In this case, replace the battery with a Sony CR2025 lithium battery. Use of another battery may present a risk of fire or explosion. -
Page 10: To Display The Photo Frame On The Wall
PNotes • Use screws suitable for the quality of the material of the wall. The screws may be damaged, depending on the type of material used in the wall. Set the screws in a pillar or stud in the wall. •... -
Page 11: Turning The Photo Frame On
Turning the photo frame on Insert the plug of the AC adaptor into the DC IN 5 V jack on the rear of the photo frame. Connect the AC adaptor to the wall outlet. The photo frame is automatically turned on. To the DC IN 5 V jack DC plug... -
Page 12: Operations In An Initial State
zTips x If the photo frame is not operated If the photo frame is not operated for 10 seconds, the demo mode is displayed. x Releasing the demonstration mode If any other button than the power button is pressed, the screen returns to the initial display. -
Page 13: Let's View An Image
Let’s view an image Inserting a memory card Insert a memory card firmly into the corresponding slot with its label side facing toward you (when you are facing the back side of the photo frame). SD memory Card (Slot A) “Memory Stick”... -
Page 14: Changing The Display
PNote If you do not operate the photo frame for a certain period of time, the style indicated by the cursor is automatically selected. z Tip Style descriptions: .CD-ROM (Handbook) page 17 to page 20 Changing the display Press the button corresponding to view mode you want to select. -
Page 15: About The Information Displayed On The Lcd Screen
About the information displayed on the LCD screen The following information is displayed. Display type (In the Single view mode) – Entire image – Fit to screen – Entire image (with Exif) – Fit to screen (with Exif) Ordinal number of the displayed image/Total number of images Input media indication for the displayed image is shown as follows:... -
Page 16: Try Using Various Functions
Try using various functions z Tips x Importing The number of images to be saved in the internal memory: • Resize: approx. 250 images • Original: the number of images may vary, depending on the original image file size. x Exporting Any memory card that is not recognized by this photo frame is shown in gray and you cannot select... -
Page 17: Specifying The Playback Device
Specifying the playback device Press SELECT DEVICE. Press v/V to select the playback device, and then press (ENTER). Adjusting image size and orientation (Zoom in/Zoom out/Rotate) Enlarging/Reducing Press (zoom in) or (zoom out) on the remote control. Saving an enlarged or a reduced image (Crop and save) •... -
Page 18: Changing The Settings Of The Auto Power On/Off Function
z Tips x During operation The power is turned off automatically at the time you set for [Power-OFF timer]. x During the standby mode The power is turned on automatically at the time you set for [Power-ON timer]. Changing the settings of the auto power on/off function Press MENU, B/b to select the Press v/V to select [Auto Power ON/OFF], and press... -
Page 19: Changing The Settings
Press V to select [Time setting] Press v/V to select the desired period after which you want to turn the photo frame off automatically: 2 hours, 4 hours, or OFF. Then press (ENTER). Press MENU. Changing the settings Press MENU, then B/b to select the Press v/V to select the item and setting value, and then press (ENTER). -
Page 20: Connecting To A Computer
P Notes • Use a mini B-Type USB cable.* * When you use a commercially- available USB cable, use a USB cable with a mini B-type plug (for the USB mini B connector of this unit, frame- side connector type) shorter than 3 meters. -
Page 21: Troubleshooting
Troubleshooting If an error message appears Error message Cannot delete a protected file. Memory card is protected. Remove protection then try again. Error reading the Memory Stick. / Error reading the SD Memory Card. /Error reading the iternal memory. Write error on the Memory Stick. / Write error on the SD Memory Card. - Page 22 Replace the battery. (.Digital Photo Frame Handbook, page 9) c Insert a battery in the proper orientation. (.Digital Photo Frame Handbook, page 9) c Point the top end of the remote control towards the remote sensor on the photo frame.
-
Page 23: Additional Information
Additional information Precautions Installation • Avoid placing the photo frame in a location subject to: – vibration – humidity – excessive dust – direct sunlight – extremely high or low temperatures • Do not use electrical equipment near the photo frame. -
Page 24: Specifications
Specifications x Photo frame LCD screen LCD panel: 18cm/7inch, TFT active matrix Total number of dots: 336,960 dots (480 × 3(RGB) × 234) dots Effective display area Display aspect ratio: 16:10 LCD screen area: 16.3cm/6.4inch Total number of dots: 295,218 dots (426 ×... -
Page 25: On Trademarks And Copyrights
Design and specifications are subject to change without notice. : Baseline JPEG with 4:4:4, 4:2:2, or 4:2:0 format : RAW files of a Sony DSLR camera are displayed as thumbnail preview. : 17 bits or more are required both vertically and horizontally. - Page 26 Memo...
- Page 27 Memo...
- Page 28 Printed using VOC (Volatile Organic Compound)-free vegetable oil based ink. Sony Corporation Printed in China...
