- Page 1 MADE IN GERMANY Instruction Manual Soundbox Series...
- Page 2 This instruction manual shall not be reproduced, copied and distributed, neither in parts nor completely, without the manufacturer's written permit. All rights reserved. The instruction manual is based on the technical and product-specific parameters. The manufacturer reserves the right to add supplementary information to the instruction manual.
-
Page 3: Table Of Contents
CONTENTS Notes on this instruction manual ____________________________________________ 2 Target groups ______________________________________________________________ 2 Conventions _______________________________________________________________ 2 Designated use ____________________________________________________________ 3 Safety ____________________________________________________________________________ 3 Safety devices ______________________________________________________________ 3 Hazards from accessories __________________________________________________ 3 Authorised operator _______________________________________________________ 3 User _______________________________________________________________________ 4 Safety instructions _________________________________________________________ 4 Construction ____________________________________________________________________ 5 Transport and installation ____________________________________________________ 6 Transport __________________________________________________________________ 6... -
Page 4: Notes On This Instruction Manual
Notes on this instruction manual This instruction manual is part of the product. It contains all important information on how to transport, install, operate, store and dispose of the device from AERIAL properly and safely. Therefore keep this instruction manual in a safe place. -
Page 5: Designated Use
SAFETY In this box you find tips and information concerning the use of the device. Designated use The soundbox VP6 is designed for conveying air and non-explosive gases and gas/air mixtures as pressure or vacuum pump. The soundbox VP6 is designed exclusively for use at atmospheric pressure. Operating the device within the limits of designated use also involves observing the specified operating conditions (refer to page 6). -
Page 6: User
SAFETY For all activities on the device the responsibilities must be clearly defined and observed. Unclear competences are a safety risk. User The user must make the instruction manual accessible to the operator, make sure that the operator has read and understood the instruction manual. ... -
Page 7: Construction

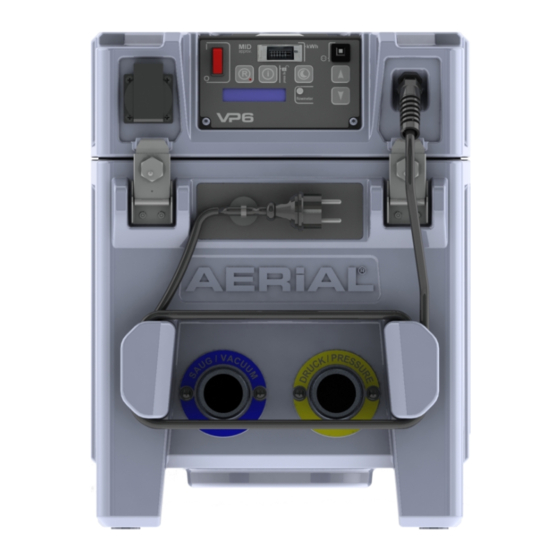

CONSTRUCTION Construction Fig. 1: AERIAL soundbox series VP6 - overview On / Off switch Tube connector, pressure side Unit socket Power cable Tension lock Operating panel Tube connector, intake side The soundbox VP6 is equipped with a multi-stage adjustable turbine. -
Page 8: Transport And Installation
TRANSPORT AND INSTALLATION Transport and installation Risk of injury due to loss of stability The soundbox is heavy. Loss of stability or uncontrolled Moments may WARNING cause serious injuries and material damage. When moving or transporting the device always use the transport handles or recessed grips. -
Page 9: Scope Of Delivery
TRANSPORT AND INSTALLATION Scope of delivery Soundbox VP6 One instruction manual Operating conditions The soundbox VP6 is intended for use in screed and insulation layer drying and hollow space drying. It works without problems in the temperature range from 0 °C to +35 °C. Installation The devices can be stacked, and are provided with fixing points for a belt... - Page 10 TRANSPORT AND INSTALLATION Fig. 3: Aercube with soundbox VP6 Fig. 4: Aercube with soundbox VP6 in vacuum mode in pressure mode Soundbox VP6 Water separator VT2 Hepa filter HF2 Sound absorber SD2 with prefilter 6005-0007 or Hepa filter HF2 The soundbox VP6 must be operated with a suitable air filter system on the intake side. We recommend to use our HF2 filter system.
-
Page 11: Operation And Operator Control
OPERATION AND OPERATOR CONTROL Operation and operator control Danger of injury and damage to appliance Inadmissible ambient conditions and improper operation of the device may CAUTION constitute a risk. Read the instruction manual before commissioning the soundbox VP6. Operating elements Fig. -
Page 12: Selection Of The Motor Stage
OPERATION AND OPERATOR CONTROL Fig. 6: Display Bar diagram to display the Motor stage counter-pressure Selection of the motor stage Selection of the right motor stage is important for efficient drying. The values in the table below relate to the room size. Stage Room size up to 15 m²... - Page 13 OPERATION AND OPERATOR CONTROL Language setting Sprache Press briefly deutsch Change language Language DE, GB, FR, IT, S, NO, FI, NL, PL Keep pressed English Change language Language Keep pressed DE, GB, FR, IT, S, NO, FI, NL, PL English saved Save new language setting Press briefly...
-
Page 14: Commissioning And Operator Control
OPERATION AND OPERATOR CONTROL Counter-pressure display Turbine in normal mode Turbine at power limit Turbine overloaded After 15 seconds of overload: Overload Turbine off, cooling air fan remains active flashes LED flashes When red LED flashes press "Reset", turbine on Commissioning and operator control Connect the soundbox VP6 electrically, s. -
Page 15: Maintenance And Service
MAINTENANCE AND SERVICE Maintenance and service Maintenance work Dust hazard During cleaning with compressed air dust is released into the WARNING atmosphere. Clean foam filter from outside and inside with a vacuum cleaner, if necessary wash and dry it. ... - Page 16 MAINTENANCE AND SERVICE Danger of burns due to contact with hot components of the cooling circuit and with the turbine respectively the channel CAUTION compressor Repairs or maintenance work may only be carried out by the manufacturer or personnel authorised by the manufacturer. Damage to appliance Cleaning agents can cause damage to surfaces.
- Page 17 MAINTENANCE AND SERVICE Fig. 9: Coarse filter intake socket Visual inspection: Coarse filter (see fig. 8, arrow) in intake socket. If the coarse filter is soiled turn out the intake socket and clean the filter. Clean casing on the outside with a moist cloth. ...
-
Page 18: Troubleshooting
TROUBLESHOOTING Troubleshooting If problems arise with the soundbox VP6 please check the following points. Should the fault not be located please contact your technical advisor. Danger of injury by electric shock and risk of material damage WARNING The device may only be repaired by trained specialised staff. Within the warranty period, any work on the soundbox shall only be carried out by the manufacturer or persons commissioned by the manufacturer. -
Page 19: Fault Messages
Replace clogged filters by new ones. LED flashes red. Press the Reset button. Voltage Voltage too low Turbine switches automatically off too low Contact the Aerial Service Voltage Voltage too high Turbine switches automatically off too high Contact the Aerial Service Motor Motor blocked... -
Page 20: Shutdown, Storage And Disposal
SHUTDOWN, STORAGE AND DISPOSAL Shutdown, storage and disposal Shutdown If you do not need the soundbox VP6 for a longer period of time you can shut it down for some time. To do so proceed as follows: Switch off the soundbox via the On/Off switch (page 5, Fig. -
Page 21: Specifications
SPECIFICATIONS Specifications General data Power supply 230 V/50 Hz Protection class IP 44 Fusing RCCB to be installed by user Operating conditions 0 °C to +35 °C Type Unit Step 1: 80 Volume flow rate Step 2: 140 m³/h (free-blowing) Step 3: 190 Step 4: 250 Max. -
Page 22: Ec Declaration Of Conformity
Product / Article Soundbox Type VP-6 Project number Aerial VP-6 Funktion The soundboxe VP-6 is designed for conveying air and non- explosive gases and gas/air mixtures as pressure or vacuum pump. The soundbox VP6 is designed exclusively for use at atmospheric pressure. - Page 23 EC DECLARATION OF CONFORMITY 2014/30/EU Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast) Published in L 96/79 of 29.03.2014 Reference to the harmonised standards used, as referred to in Article 7 (2): EN ISO 12100:2010-11...
