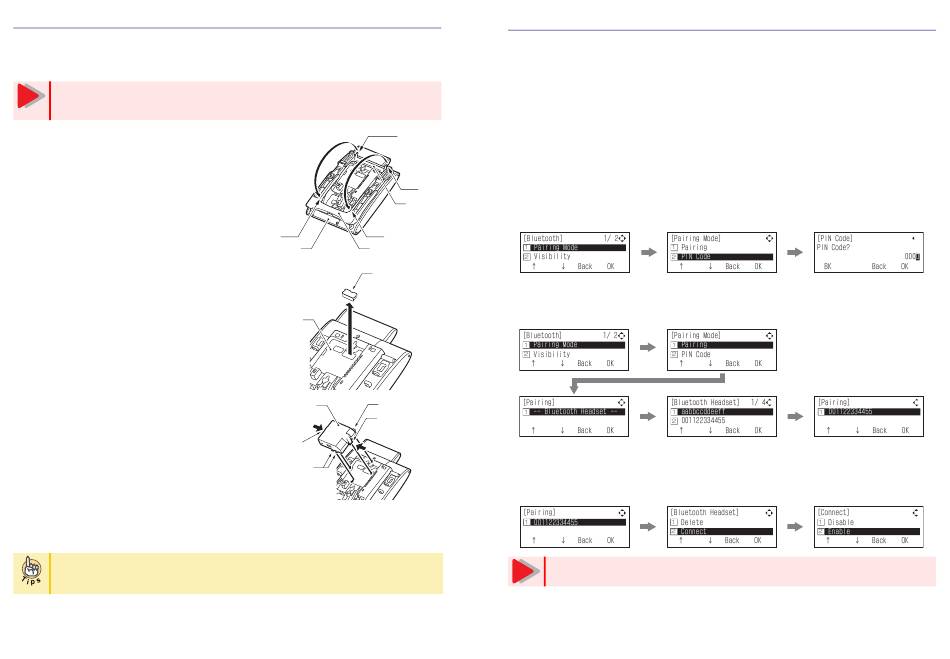

Mounting Procedure
Follow the steps below to attach the IP3NA-BCH ADAPTER( ) to the bottom-unit connector on the back
of the multifunctional telephone. If the telephone is furnished with various cables, remove these cables
first.
・Only one IP3NA-BCH ADAPTER( ) can be mounted per telephone.
Caution
・The IP3NA-BCH ADAPTER( ) cannot be mounted on the economy multifunctional telephone (IP3NA-
2TH TEL(BK)) and the cordless terminal (IP3NA-12TXH(BT) TEL(BK)).
1
Turn over the telephone.
2
Lower the tilt legs to the first level.
3
Release lugs a and b on the stopper
from grooves A and B in the tilt legs
and widen the tilt legs.
4
Remove the connector cover (rubber)
from the bottom unit connector.
5
Position the IP3NA-BCH ADAPTER( )
with its lower claws, and then attach it
to the telephone connector while push-
ing the right and left claws.
The upper claw clicks.
6
Replace the tilt legs in original position.
The installation of the IP3NA-BCH ADAPTER( ) is complete.
Removing the IP3NA-BCH ADAPTER( )
Lift the IP3NA-BCH ADAPTER( ) from the upper claw while pressing the upper claw and the right and left
claws.
2
b
a
Stopper
B
A
Multifunctional
Tilt leg
telephone
Connector cover
Multifunctional
telephone
Upper claw
BHA-L UNIT
Right claw
Left claw
Lower claws
®
Pairing a Bluetooth
Device with a Multifunctional Telephone with Each Other
®
Invoke the Bluetooth
screen from a multifunctional telephone menu and register the Bluetooth
set with the IP3NA-BCH ADAPTER( ).
For more details on working with the menu, refer to the user's guide or other documentation that comes
with your system.
®
< Invoking the Bluetooth
Device Setup Screen >
®
Invoke the Bluetooth
screen in one of the following methods:
Digital multifunctional telephone
・ If the IP3NA-BCH ADAPTER( ) is connected to an Aspire X:
Press menu keys > [5. Optional Devices] > [1. Bluetooth].
・ If the IP3NA-BCH ADAPTER( ) is connected to a PBX (other than Aspire X):
Press menu keys > [3. Setup] > [5. Optional Devices] > [1. Bluetooth].
<Entering a PIN Code>
®
In pairing a Bluetooth
device having a PIN Code other than 0000, enter a string of 4 to 16 digits to suit
that device.
<Pairing>
®
Up to 8 Bluetooth
devices located around the IP3NA-BCH ADAPTER( ) are located, among which
select a device want to pair with the device.
It takes approximately one
minute for locating.
<Connecting to the Paired Device>
®
Enable the Bluetooth
device. Select [2. Enable] in the connection screen.
®
After pairing a Bluetooth
device, be sure to configure its connection to enable it. If connected setting is
Caution
®
not done,the Bluetooth
device that does the pairing cannot be used.
®
head-
3
