Quick-start
This is not a substitute for reading the relevant sections of the manual but is
included to emphasise some important and useful points.
If the grow room is to be operated at high humidity for long periods (e.g. during
cutting/rooting stage) it is preferable to mount the controller outside the grow room.
This is easily done as the grow room sensors are supplied with a long 5m (15ft) cable
and if necessary this can be replaced with a longer cable. If this is done then data
cable such as CAT5 computer network cable should be used. This should be
stranded cable (rather than solid core) to avoid breakages.
Note that one sensor unit (to measure temperature, RH and light) is supplied as
standard and a second optional sensor unit may be attached. This is useful in larger
grow rooms or where increased security is required. Control will normally be based
on the average readings from the two sensors but should one sensor fail, control will
automatically revert to the working sensor. The optional outside temperature sensor
is useful in very cold and very warm climates.
Outside
temp sensor
Fan2 or aircon
Fan1
Ballas
ts
If you intend injecting CO
recommended and if you are in a warm climate then an air conditioner
and humidifier should also be considered. Together, these will allow longer
periods of CO
2
to significant improvement in growth rates with lower use of expensive CO
SAFETY NOTE: If you do inject CO2 into the grow room always do the following
before entering.
1) Disable CO2
©2018 Autogrow Systems Ltd V4.5
1 or 2 environment sensors
connecting to IntelliClimate.
Each measures temperature, RH
and light level
Heater

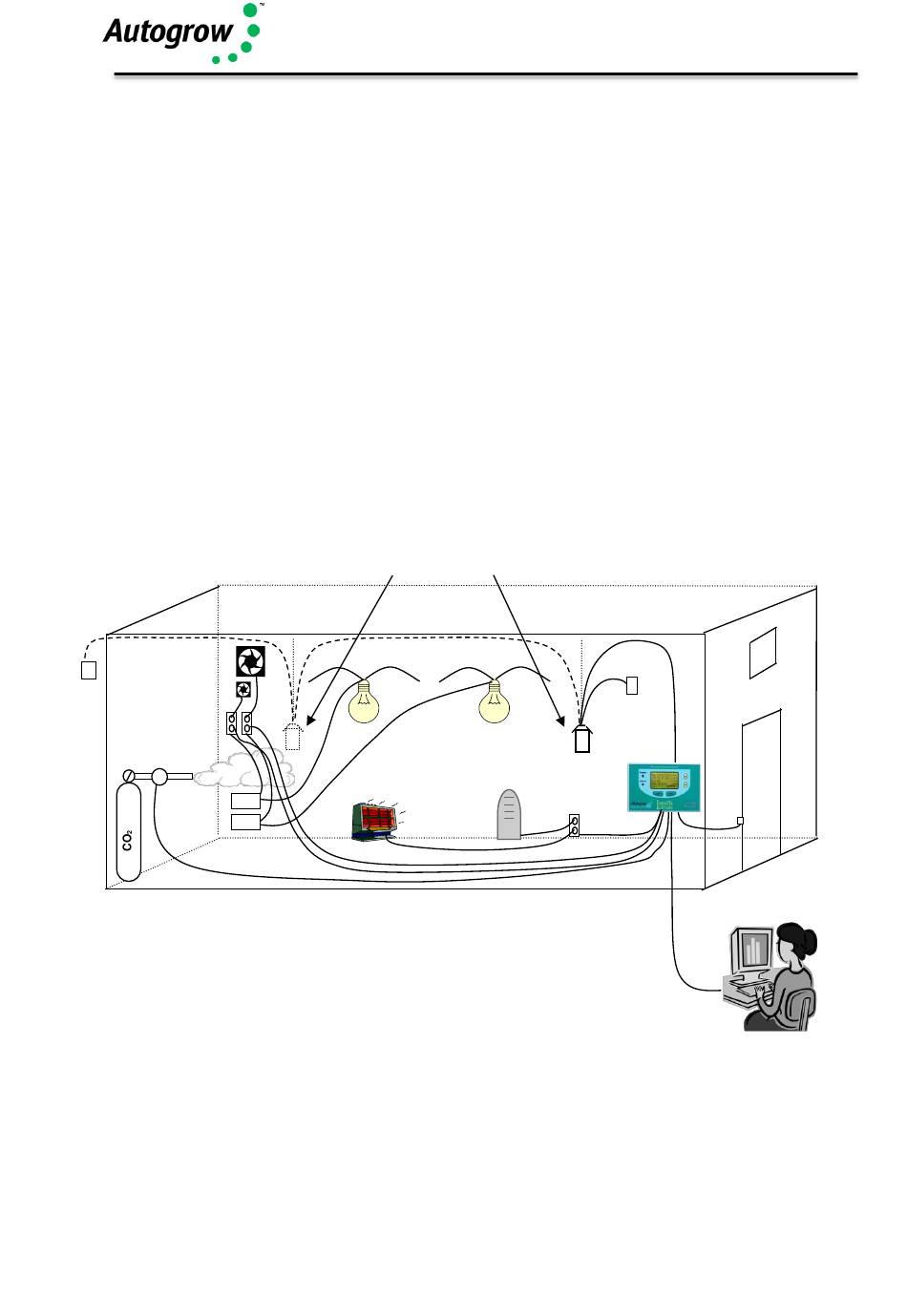

Typical grow room layout
