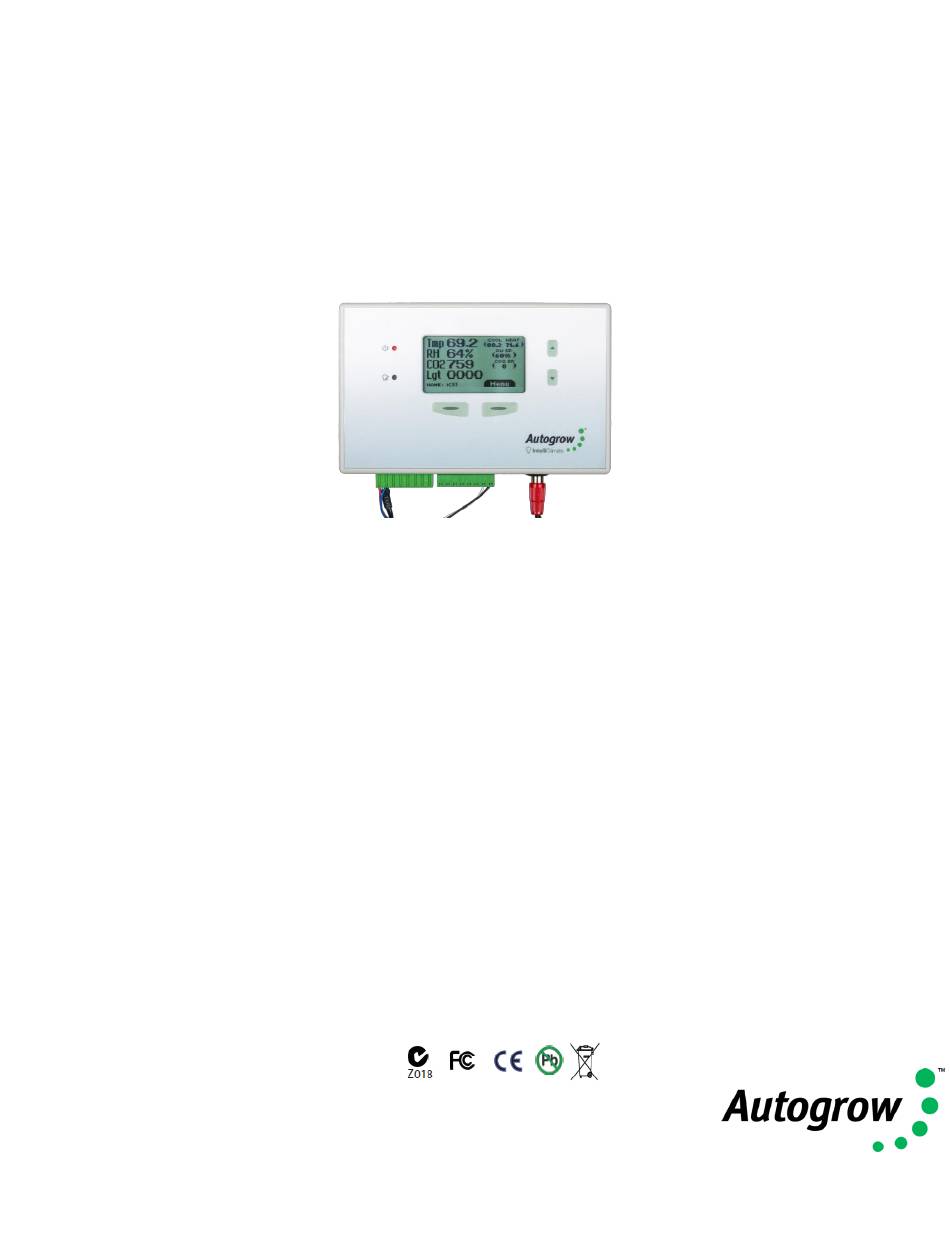

IntelliClimate
Installation and User Guide
•
USB connection to PC or Mac
•
Advanced cloud connectivity enabled as standard (using gateway software)
•
Integrated control of all grow room parameters
- 2 banks of lights
- cooling fan
- second cooling fan or AC
- heater
- dehumidifier
- humidifier (or fogger)
- CO2 injection
•
Measurement of all relevant grow room parameters
- Air temperature
- Relative Humidity
- Light level
- Second sensor set optional
- CO2 level (0.5000ppm) optional
- Outside temperature (optional)
- Intruder detect
- Lamp over-temperature detect (optional)
•
Extensive fail-safe features
•
Settings can be scheduled to automatically change to match plant growth
stage
•
Autolearn – self learning automatically adjust CO2 cycle times to minimise
wastage
©2018 Autogrow Systems Ltd V4.5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Autogrow IntelliClimate
Summary of Contents for Autogrow IntelliClimate
- Page 1 - Lamp over-temperature detect (optional) • Extensive fail-safe features • Settings can be scheduled to automatically change to match plant growth stage • Autolearn – self learning automatically adjust CO2 cycle times to minimise wastage ©2018 Autogrow Systems Ltd V4.5...
- Page 2 The end user of this product should be aware that any changes or modifications made to this equipment without the approval of Autogrow Systems Ltd could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.
- Page 3 Section G Warranty Disclaimer: Suggested settings are made in good faith and with care and consideration. However, Autogrow can accept no responsibility for the accuracy or appropriateness of suggestions or the outcome resulting from their use. ©2018 Autogrow Systems Ltd V4.5...
-
Page 4: Quick Start
CO SAFETY NOTE: If you do inject CO2 into the grow room always do the following before entering. 1) Disable CO2 ©2018 Autogrow Systems Ltd V4.5... -
Page 5: Section A - Introduction To The Intelliclimate
The IntelliClimate is, without doubt, the most advanced and user-friendly grow room environment controller on the market. It has a wide range of possible applications which we will discuss briefly in this section. To keep the user interface as simple as possible, only the readings and settings relevant to the selected features are displayed on the controller’s LCD and on the computer. - Page 6 You may select either degrees C or degrees F for temperature. CO concentration is measured in ppm and for the more advanced user VPD is measured in kPa/m2. The date format is selectable between mm/dd/yy and dd/mm/yy formats ©2018 Autogrow Systems Ltd V4.5...
- Page 7 For humour, we have a selection of alarm sounds including regular, fun and adult. These can be selected on IntelliGrow under setup. Please head to our online Help, found here: help.autogrow.com/intelligrow. Outputs The outputs voltages are all dependent on the power supply adapter used. A 24V DC power is normally provided with the unit in which case all outputs will be 24V DC.
- Page 8 IntelliClimate Manual How to use this manual The IntelliClimate has a number of advanced modes of operation and so we have divided this manual into sections, each of which represents a particular feature. For installation advice, go to the installation section at the back of this manual and then start by reading sections B and C.
-
Page 9: Section B - Software Overview
After changing any settings, click the 'Save' button at the bottom-right of IntelliGrow. Once you've selected all the installed and working devices, you can select whether you want to use Autoset (scheduling), Autoset (growth stage) or manual settings. Please head to our online Help, found here: help.autogrow.com/intelligrow ©2018 Autogrow Systems Ltd V4.5... - Page 10 This allows you to enter fixed settings just like in “the good ole days”. Advanced settings and rules These settings and rules are preset to typical values that will suit the majority of grow rooms, however, expert users may wish to alter them to achieve optimal performance. ©2018 Autogrow Systems Ltd V4.5...
- Page 11 CO . Depending on your exact setup you may need to alter this to achieve what you desire. Advanced Rules Each rule is listed below with a brief description and a suggested initial value ©2018 Autogrow Systems Ltd V4.5...
- Page 12 The last rule is for a system that is injecting CO2 on a cycle timed basis. If checked, this rule will modify timings to try to avoid CO2 wastage and will completely abort CO2 injection if it is uneconomic. This uses the Autolearn feature of the IntelliClimate Lighting rule This rule specifies the minimum gap between light bank1 switching on and light bank 2.
- Page 13 (50J) and the controller will switch to the alternative bank and trip the alarm if enabled. NB: Finally there is a button that allows you to restore all advanced settings to their factory default values. ©2018 Autogrow Systems Ltd V4.5...
- Page 14 Note that the dates in the table are relative to the specified start date. This means that a schedule that was created for a start date of say, 15 January can easily be reused starting from any other date. ©2018 Autogrow Systems Ltd V4.5...
-
Page 15: Section C - Installation
Connection to Enviro sensors and optional outside temperature sensor A single cable is run from the IntelliClimate to the first enviro sensor which then loops from the first enviro sensor on to the second sensor (if fitted) and on to the outside temperature sensor (if fitted). - Page 16 Shown with CO2 sensor installed secured with locking “Y” clip Use the plug-in wiring supplied or hard wire if preferred ES Intelli “Modern-louvred” model ©2018 Autogrow Systems Ltd V4.5...
- Page 17 IntelliClimate Manual Power +ve Power –ve (Black) ASL Signal (White) Ultra-edition must be hard-wired ES Intelli “Ultra” model ©2018 Autogrow Systems Ltd V4.5...
- Page 18 (when cool) and open when over- temperature. It is preferable to use the type that stay open once tripped and need to be manually reset. Note that the over-temperature switch can only be connected to enviro sensor 1. ©2018 Autogrow Systems Ltd V4.5...
- Page 19 The anchors supplied are self drilling and so there is no need to pre-drill the wall. Just position them, give them a light tap to get started and then turn to drill/screw in with a Phillips or Pozi screw driver. Use the ©2018 Autogrow Systems Ltd V4.5...
- Page 20 The black wire is the common, the red is for the upper socket outlet and the white is for the lower socket outlet. Example connection of a relay box to operate Light1 and Fan1 ©2018 Autogrow Systems Ltd V4.5...
-
Page 21: Section D - Software Installation
Finally, double check all other settings and readings to be absolutely sure that the peripheral in question should be ON. ©2018 Autogrow Systems Ltd V4.5... -
Page 22: Section G - Warranty
The warranty on the controller and environment sensor is limited to 2 years – return to factory. Before returning the unit for service you must call Autogrow Systems Ltd for a return authorization and the preservice check sheet must be completed. - Page 23 HARD CALIBRATION A SOFT CALIBRATION MUST ALSO BE CARRIED OUT. Place the sensor box outside in fresh air and connect to an IntelliClimate controller. Navigate to, and enter, the Configure Menu. Navigate and enter “CO2 configuration” then move down and enter “Open air configuration” then press edit and a screen with instruction will appear.
-
Page 24: Appendix 2 - Specification
Appendix 2 – Specification Power supply adapter The unit is normally supplied with a universal input (100V to 240V 50/60Hz) power adapter which provides the IntelliClimate with a safe, low voltage supply of 24V DC at 2.5Amps Outputs 8 outputs that have the same voltage as the supply (normally 24V DC) Ratings of individual outputs are 3Amps but of course the total draw from all 8 outputs must not exceed the rating of the supply adapter. - Page 25 IntelliClimate Manual Thank you for your purchase. Get the most out of your IntelliDose or IntelliClimate control systems with IntelliGrow. IntelliGrow is a cloud-based solution allowing you to access, set, monitor and manage your growing operation - anywhere, anytime. Start your 14 day free trial at intelligrow.autogrow.com Better growing control, more freedom.
- Page 26 IntelliClimate Manual ©2018 Autogrow Systems Ltd V4.5...
- Page 27 IntelliClimate Manual ©2018 Autogrow Systems Ltd V4.5...
- Page 28 IntelliClimate Manual In the box: HCTR-IC-001-01 1 x IntelliClimate controller 1 x Mounting hardware 1 x Instruction manual HKIT-IC-001-01 1 x IntelliClimate controller 1 x 24V DC 2.5A power supply with universal plug 1 x EnviroSensor (temperature, humidity, light, CO2)
