S1, S2, S3, S5, S6, S7, S8, S12 and S13
Installation and Maintenance Instructions
Printed in the UK
IM-P023-55 ST Issue 8
Separators
1. Safety information
2. General
3. Installation
4. Commissioning
5. Operation
6. Maintenance
7. Spare parts
IM-P023-55
ST Issue 8
product information
© Copyright 2008
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spirax Sarco S1

Summary of Contents for Spirax Sarco S1

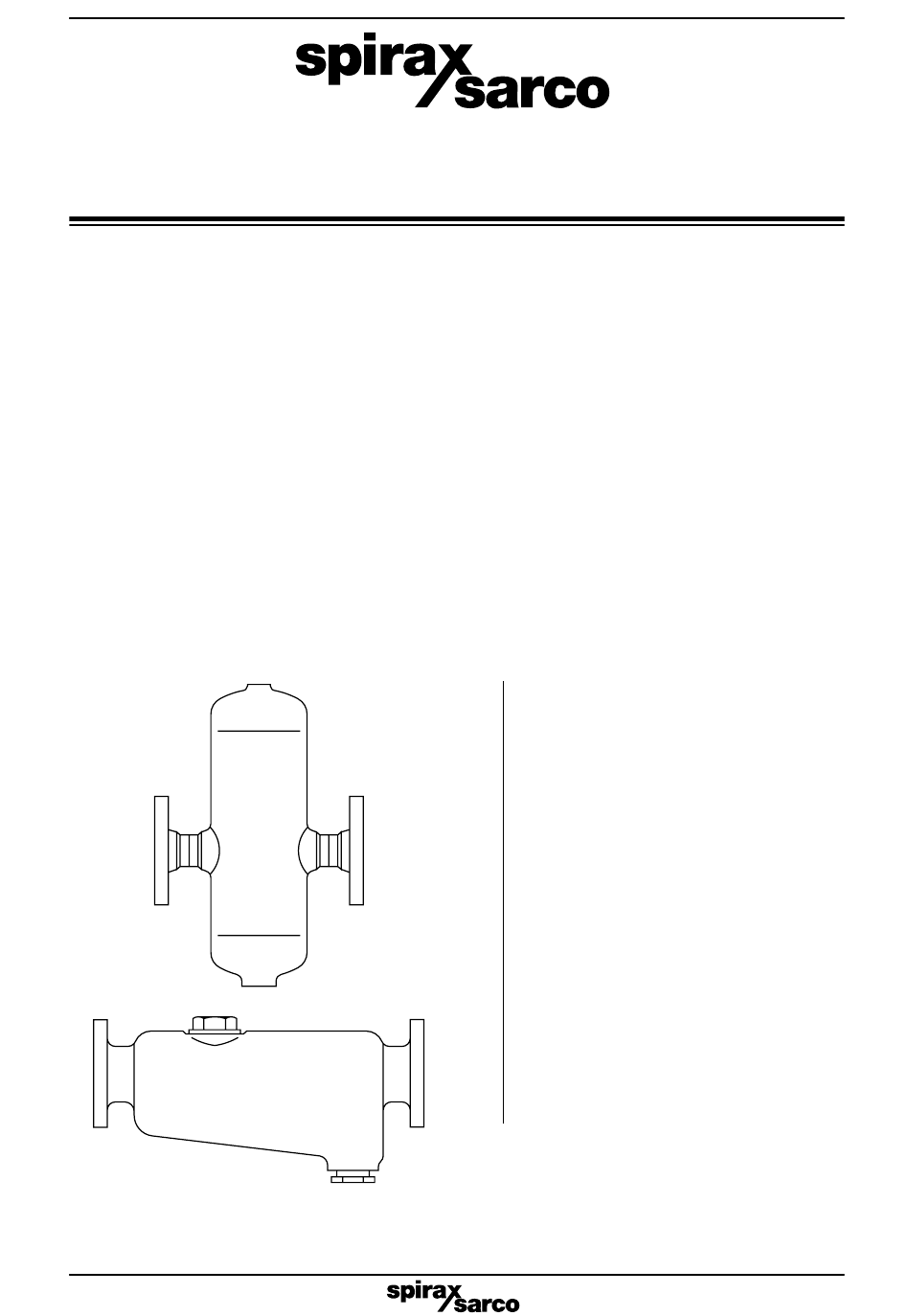

  • Page 1 0231150/8 IM-P023-55 ST Issue 8 S1, S2, S3, S5, S6, S7, S8, S12 and S13 Separators Installation and Maintenance Instructions 1. Safety information 2. General product information 3. Installation 4. Commissioning 5. Operation 6. Maintenance 7. Spare parts Printed in the UK ©...
