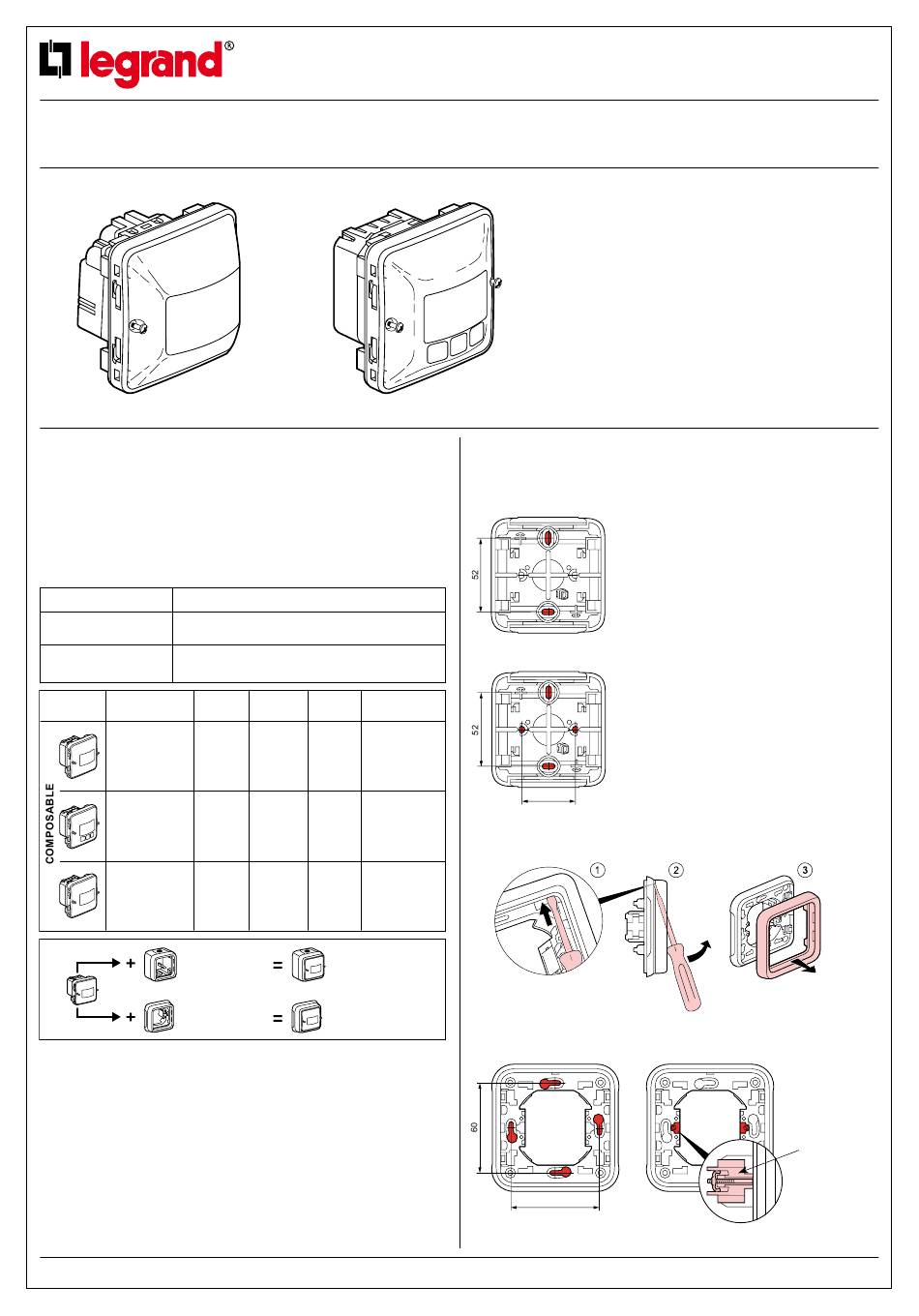

1. TECHNICAL CHARACTERISTICS

Weatherproof wiring system designed for residential and professional
technical locations (garages, cellars, car parks, workshops and indus-
trial kitchens, etc) as well as for outdoor applications (patios, gardens,
camp sites, etc).
Automatic switches with or without neutral with infrared detection.

2. RANGE

Cat. No.
695 xx
Composable
696 xx
697 xx Complete surface mounting
698 xx Complete flush mounting
Description Cat. No.
Automatic switch
695 00
without neutral
grey/white
2 wires
without override
Automatic switch
695 01
without neutral
grey/white
2 wires
with override
Automatic switch
695 02
with neutral
grey/white
3 wires
without override
GREY
696 51
696 81
Technical data sheet: F00339EN/02
CONTENTS
2 versions : grey and white
Connection
Weight (g) Characteristics
method
230 V - 50 Hz
Screw 80 g
300 W max
110 V - 50 Hz
150 W max
230 V - 50 Hz
screw 83 g
400 W max
230 V - 50 Hz
screw 81 g
1000 W max
WHITE
696 89
696 92
Updated: 09/05/2011
87045 LIMOGES Cedex
Telephone: + 33 5 55 06 87 87 - Fax: + 33 0 5 55 06 88 88
Cat. No(s): 695 00/01/02
695 01
3. INSTALLATION
3.1 fSurface mounting
- by screwing back box onto support using two Ø 3 mm - Ø 4 mm
max. screws.
- to replace former Plexo 55 series
38
3.2 Flush mounting
- unclip plate
- With screws
on flush mounting box
60
CONTENTS
1. Technical characteristics . . . . . . . . . . .1
2. Range. . . . . . . . . . . . . . . . . . . . . . . . . .1
3. Installation . . . . . . . . . . . . . . . . . . . . 1-3
4. Overall dimensions. . . . . . . . . . . . . . . .3
5. Operation . . . . . . . . . . . . . . . . . . . . . 3-4
6. General characteristics. . . . . . . . . . . 4-5
7. Maintenance. . . . . . . . . . . . . . . . . . . . .5
- With claws
on flush mounting box
Claws can be fitted:
Cat. No. 849 00
or Cat. No. 849 01
(long claws)
