OUMAN TMW 50 Installation And Connection

Installation and connection
2.
3.
OUMAN OY
www.ouman.fi

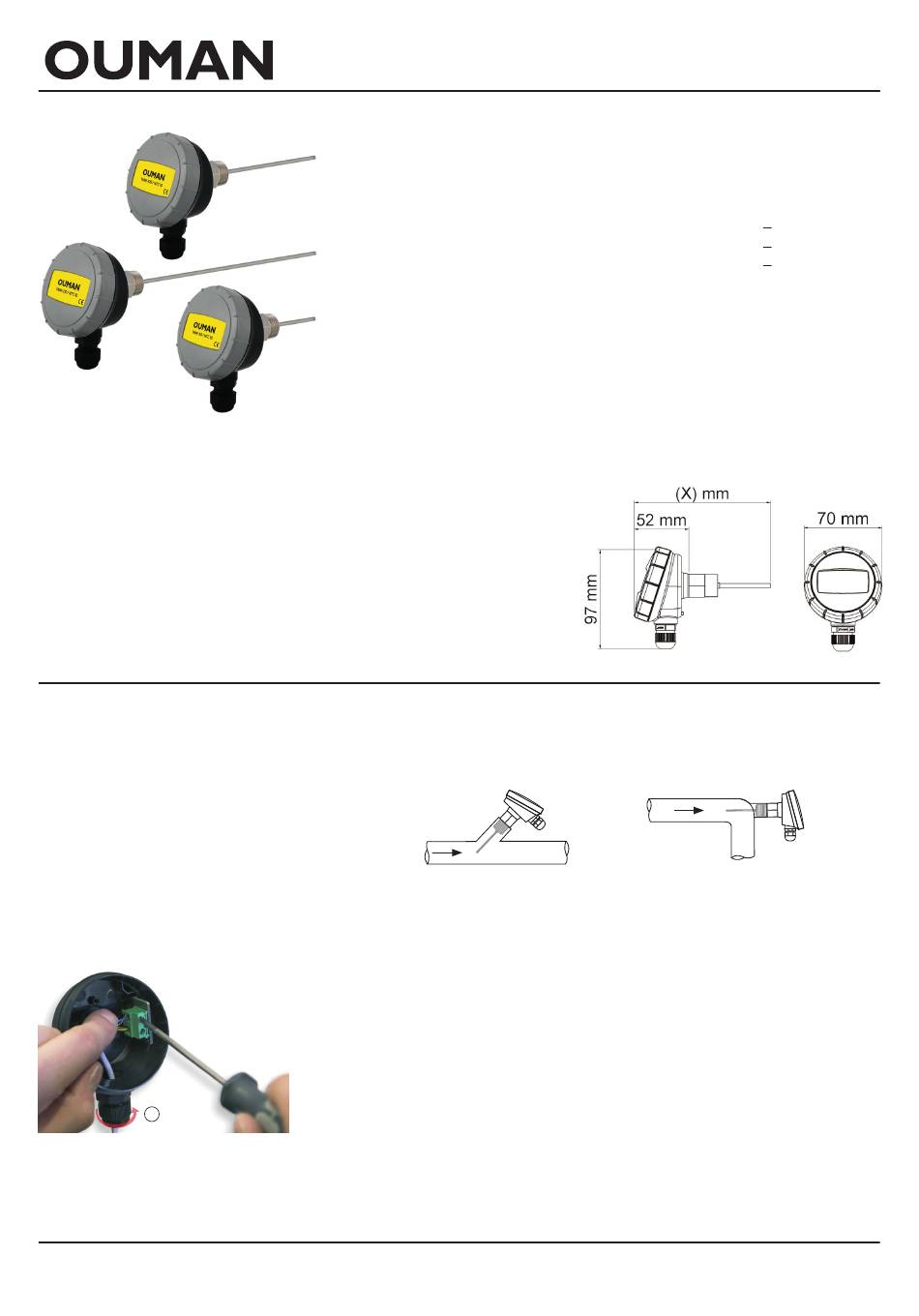

Water sensor
The water sensors (TMW) installed on the water pipes are suitable for heat-
ing and domestic hot water control. The water sensors come with immersion
sensor of different lenghts as follows (Ø 4 mm):
Type code
TMW-(50, 100, 210) / NTC10
TMW-(50, 100, 210) / Pt1000
TMW-(50, 100, 210) / Ni1000
Technical information
Materials
- Case
- Immersion pipe and nipple
Range of use
Protection class
Seal
Pressure class
Time constant
Thread
Wrench size
Dimensions:
Install the water sensor on the bend of the water-supply pipe so that the
immersion sensor faces opposite the direciton of flow.
The sensor should be positioned at a point where the water is well mixed.
With heating control install the supply water sensor approx. 1 m from the
mixing point and with hot water temperature control install the supply water
sensor less than 0,5 m from the mixing point
1. Screw the sensor on a welded pipe fitting or T-piece using proper sealing
methods. The case can be turned clockwise at the end of the rst pocket
until the cable's bushing seal goes down.
2. Open the screw-off lid and connect the sensor to the controlling device as
a two-wire connection using weak current cable. The polarity of the cable
is irrelevant.
3. Tighten the bushing seal so that it acts as a seal and repels water.
Meas. element
NTC 10
Pt 1000
Ni 1000 LG
Cover PC, base PBT, seal PA
RST AISI 304 EN 1.4301
-50 °C...+130 °C (water, cooling liquids)
IP 54
M16 x 1,5
PN 16
< 3 s
R ½", cross-knurling
22 mm
X = 130 mm, 180 mm, 290 mm
TMW
Meas. accuracy
+ 0,2 °C (0-70 °C)
+ 1 °C (0-70 °C)
+ 1 °C (0-70 °C)
