1. Short description

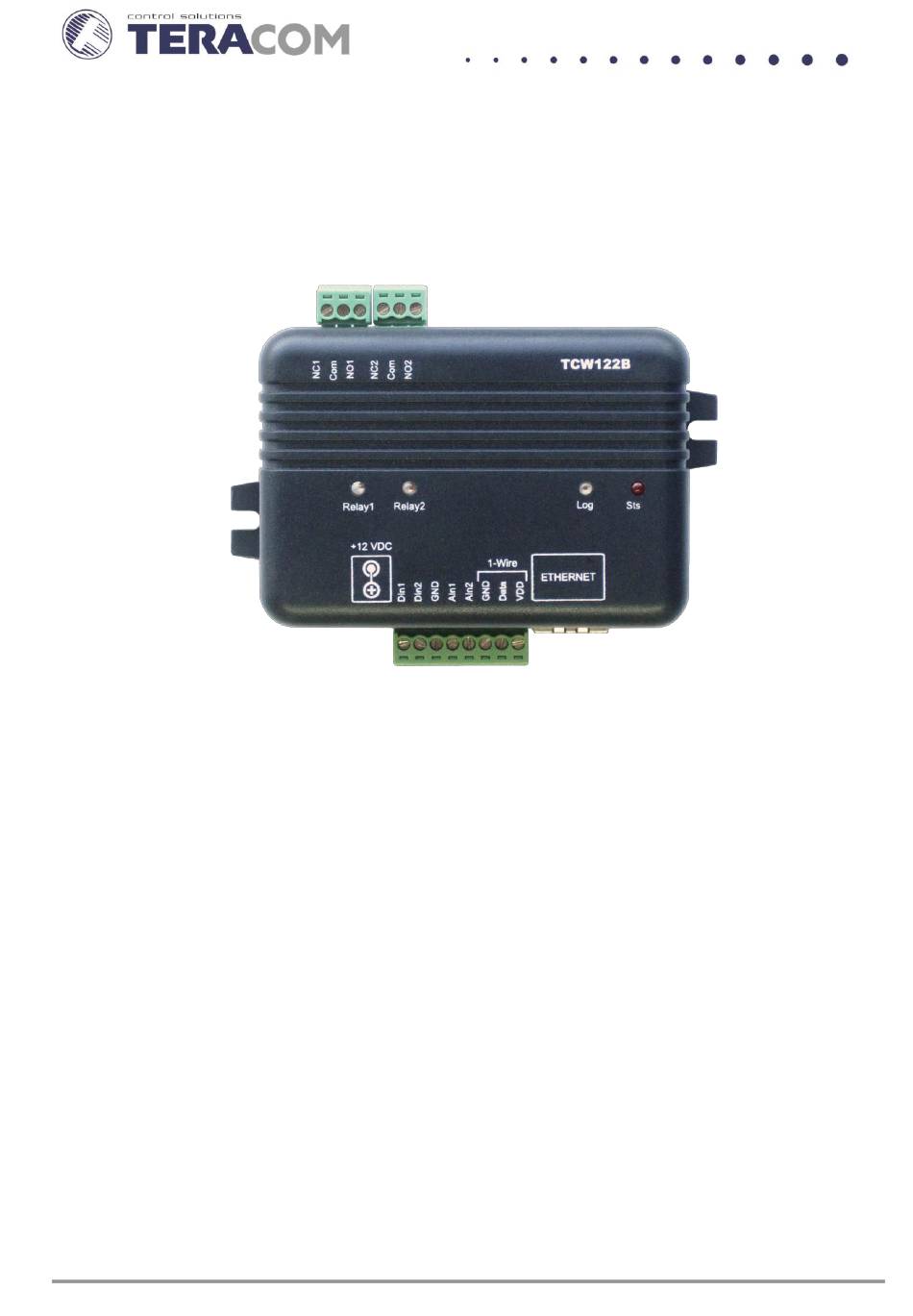

TCW122B-WD is an Ethernet controller, based on TCW122 hardware. It has 2 digital and 2 analog
inputs, 1-Wire interface for up to 2 temperature/humidity sensors and 2 relays with NO/NC contacts. It is
stand-alone device, can be managed by WEB interface and/or SNMP programs
TCW122B-WD is suitable for IP watchdog monitoring, environmental monitoring of server rooms
as well for – building automation, remote control, alarm systems etc.
2. Features
10 Mb Ethernet connectivity;
Password protected, web based configuration and control;
2 digital inputs with " dry contact" and "logic level" modes;
2 analog inputs with 0 to 60VDC range;
2 relays with NO and NC contacts;
Long 1-Wire support for up to 2 temperature (TST1XX) or temperature/humidity (TSH2xx)
sensors;
SNMP v.1 support, SNMP trap alerts;
VLAN, MAC address filtering;
ICMP watchdog monitoring;
Remote firmware update.
TCW122B-WD_R2
( Firmware version 2.xx )
Ethernet controller
(Firmware version 2.xx)
User manual
TCW122B-WD
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCW122B-WD and is the answer not in the manual?

Questions and answers

Summary of Contents for Teracom TCW122B-WD

  • Page 1 User manual 1. Short description TCW122B-WD is an Ethernet controller, based on TCW122 hardware. It has 2 digital and 2 analog inputs, 1-Wire interface for up to 2 temperature/humidity sensors and 2 relays with NO/NC contacts. It is stand-alone device, can be managed by WEB interface and/or SNMP programs TCW122B-WD is suitable for IP watchdog monitoring, environmental monitoring of server rooms as well for –...
  • Page 2: Technical Parameters

    3. Technical parameters Supply voltage, VDC 12±2 Maximum current consumption (with both relays ON), mA Weight, g Dimensions, mm 107 x 72 x 32 Operating temperature, °C 0 to +40 Maximum humidity in 0 to 31°C range, %RH Maximum humidity at 40°C (linear slope between 31-40°C), %RH Minimum high level input voltage for digital inputs, VDC +2.5 Maximum low level input voltage for digital inputs, VDC...
  • Page 3: Environment Information

    Joint part with external component shall have space for attachment/removal of the cable after installation. Teracom does not guarantee successful operation of the product if the product was used under conditions deviating from the product specifications.
  • Page 4: Maintenance

    Installation consists of mounting the device, connecting to an IP network, connecting inputs and outputs, providing power and configuring via a web browser. TCW122B-WD can be wall or flat, not flammable surface mounted, in a clean and dry location room. Ventilation is recommended for installations where ambient air temperature is expected to be high.
  • Page 5 The controller supports one active session – only one user can operate the device. If another user tries to login, the message “Someone’s logged in” appears: The active session will be terminated automatically, if the current user stays inactive for 2 minutes. 11.2 Monitoring page After successful authorization, the “Monitoring”...
  • Page 6 For temperature, humidity and analog value MIN, MAX and HISTERESYS values can be set. These values arranged windows for monitored parameter. Every going out of range generates SNMP trap (if enabled). Leaving range is considered when the parameter goes lower than MIN values or higher than MAX. Coming back in the range is considered when the parameter goes higher than (MIN + HISTERESYS) or lower than (MAX –...
  • Page 7 Relay can be activated manually or automatically in function of ping: When manual activation is selected, “Pulse” and “ON/OFF” buttons on “Monitoring” page are active. The duration of pulse for relay activation can be set from 1 to 253 seconds. Automatic monitoring page refresh interval can be set from 1 to 253 second.
  • Page 8 Authentication details for WEB access to TCW122B-WD can be set in the last section. Only one user is supported. 11.5 SNMP Setup page TCW122B-WD supports SNMP v.1. This enables the device to be part of large monitoring and control networks. The possible settings for “SNMP” section are: ...
  • Page 9: Application Examples

    12.1 Watchdog TCW122B-WD device is set to send periodic ping to AP (Local network) and remote server (Internet). If there is no answer in “Ping time out for restart”, the corresponding relay is activated in order to reset particular network equipment.
  • Page 10 We guarantee proper operation only with our 1-Wire sensors series TST1XX and TSH2XX. 14. Control and monitoring using SNMP TCW122B-WD can be configured and monitored through SNMP (Simple Network Management Protocol). This could be done using every SNMP v.1 compatible program. Parameters that can be changed, are grouped according to their functions in the tables below.
  • Page 11 14.5 Setup -> SNMP Name Access Description Syntax x.2.4.1.0 snmpConfiguration read-write SNMP Configuration INTEGER { disabled(0), enabled(1) } x.2.4.2.0 trapEnabled read-write TRAP messages ENABLED/DISABLED INTEGER { no(0), yes(1) } x.2.4.3.0 trapReceiverIPAddress read-write TRAP receiver IP address IpAddress x.2.4.4.0 trapCommunity read-write TRAP community String (SIZE (0..13)) x.2.4.5.0 trapInterval...
  • Page 12: Monitor And Control

    14.13 Setup -> watchdog1 Name Access Description Syntax Watchdog 1 Mode - Incomming or INTEGER { disabled(0), x.2.10.1.0 wdg1Mode read-write Outgoing Ping incomingPing(1), outgoingPing(2) } x. 2.10.2.0 wdg1OutgoingPingInterval read-write Watchdog 1 Outgoing Ping Interval INTEGER { 1..253 } x. 2.10.3.0 wdg1PingTimeOutForRestart read-write Watchdog 1 Ping Time out for restart INTEGER {2..65000}...
  • Page 13: Factory Default Settings

    15. Factory default settings TCW122B-WD can be restored to its original factory default settings, following the steps below:  Turn off the power supply;  Press and hold the RESET button then turn on the power supply;  The LED’s STS and LOG will flash 14 times, after that they will turn on. In this moment the RESET button should be released.
  • Page 14 Appendix A Fig.1 Fig.2 TCW122B-WD_R2 ( Firmware version 2.xx ) Page 14...
