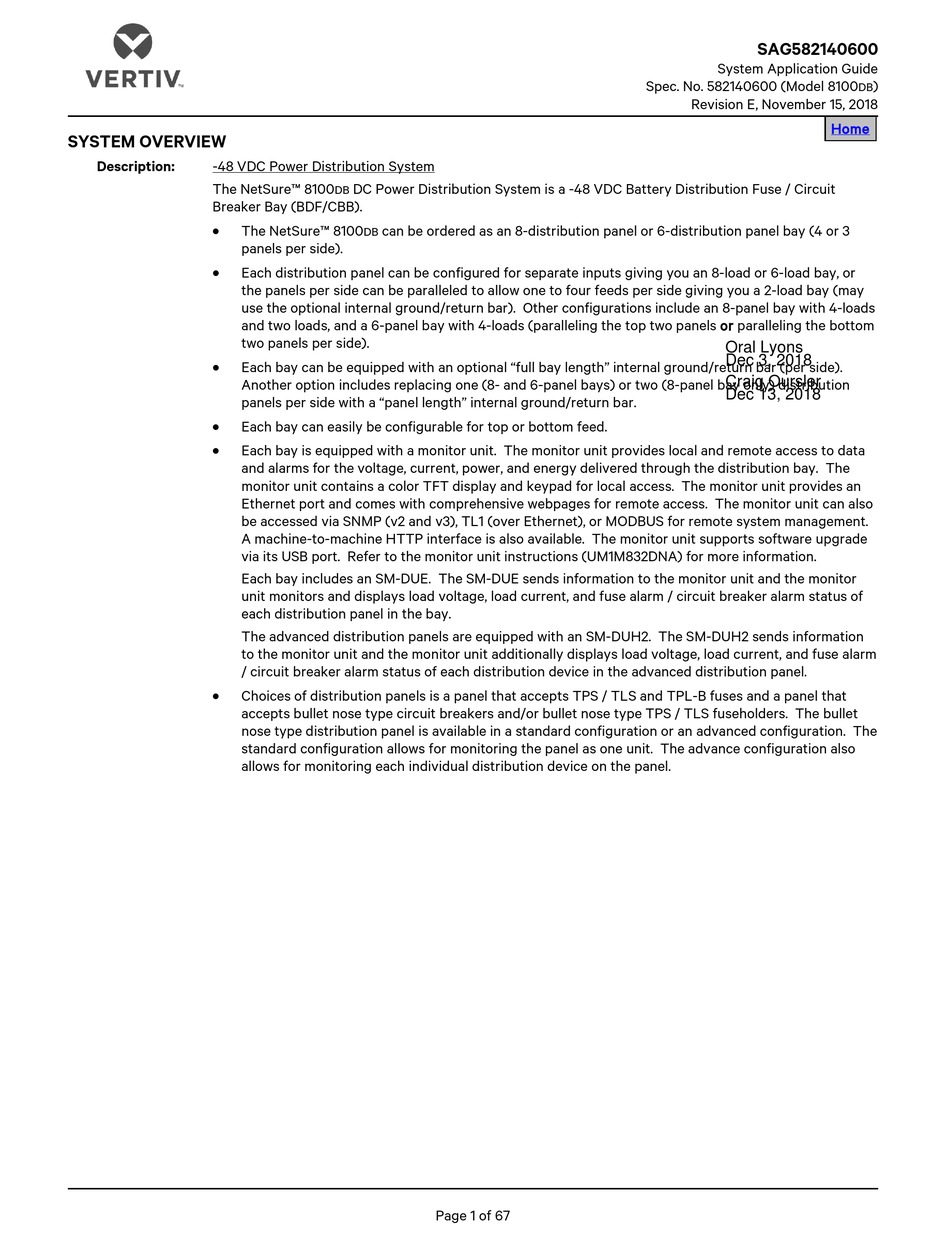

SYSTEM OVERVIEW

Description:
-48 VDC Power Distribution System
The NetSure™ 8100
Breaker Bay (BDF/CBB).
•
The NetSure™ 8100
panels per side).
•
Each distribution panel can be configured for separate inputs giving you an 8-load or 6-load bay, or
the panels per side can be paralleled to allow one to four feeds per side giving you a 2-load bay (may
use the optional internal ground/return bar). Other configurations include an 8-panel bay with 4-loads
and two loads, and a 6-panel bay with 4-loads (paralleling the top two panels or paralleling the bottom
two panels per side).
•
Each bay can be equipped with an optional "full bay length" internal ground/return bar (per side).
Another option includes replacing one (8- and 6-panel bays) or two (8-panel bay only) distribution
panels per side with a "panel length" internal ground/return bar.
•
Each bay can easily be configurable for top or bottom feed.
•
Each bay is equipped with a monitor unit. The monitor unit provides local and remote access to data
and alarms for the voltage, current, power, and energy delivered through the distribution bay. The
monitor unit contains a color TFT display and keypad for local access. The monitor unit provides an
Ethernet port and comes with comprehensive webpages for remote access. The monitor unit can also
be accessed via SNMP (v2 and v3), TL1 (over Ethernet), or MODBUS for remote system management.
A machine-to-machine HTTP interface is also available. The monitor unit supports software upgrade
via its USB port. Refer to the monitor unit instructions (UM1M832DNA) for more information.
Each bay includes an SM-DUE. The SM-DUE sends information to the monitor unit and the monitor
unit monitors and displays load voltage, load current, and fuse alarm / circuit breaker alarm status of
each distribution panel in the bay.
The advanced distribution panels are equipped with an SM-DUH2. The SM-DUH2 sends information
to the monitor unit and the monitor unit additionally displays load voltage, load current, and fuse alarm
/ circuit breaker alarm status of each distribution device in the advanced distribution panel.
•
Choices of distribution panels is a panel that accepts TPS / TLS and TPL-B fuses and a panel that
accepts bullet nose type circuit breakers and/or bullet nose type TPS / TLS fuseholders. The bullet
nose type distribution panel is available in a standard configuration or an advanced configuration. The
standard configuration allows for monitoring the panel as one unit. The advance configuration also
allows for monitoring each individual distribution device on the panel.
DC Power Distribution System is a -48 VDC Battery Distribution Fuse / Circuit
DB
can be ordered as an 8-distribution panel or 6-distribution panel bay (4 or 3
DB
