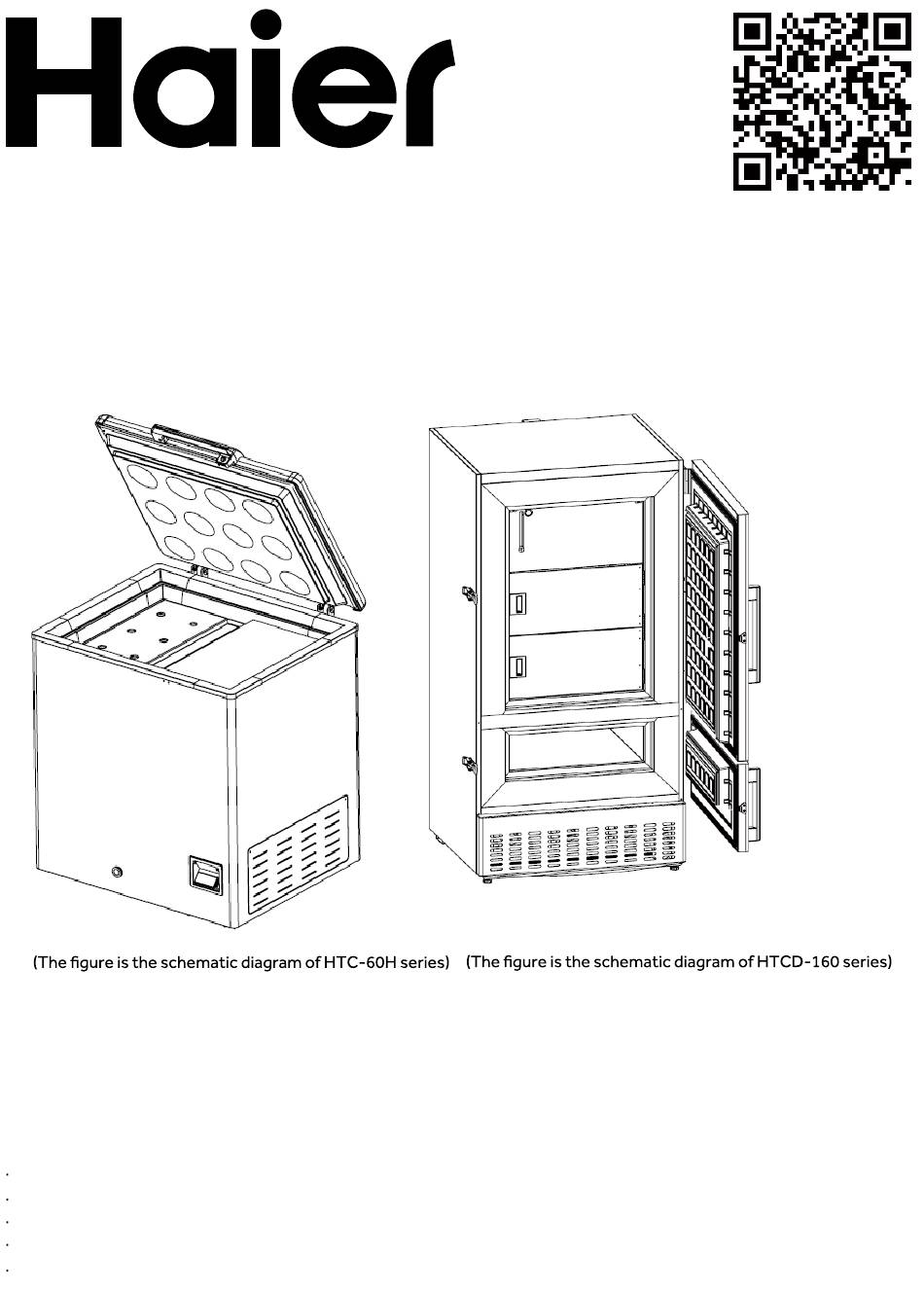

Solar Vaccine Refrigerator
Operation Manual
Read carefully the manual before use
The company reserves the right to interpret the manual
Appearance of product in kind prevails
Keep the manual along with invoice after reading in a proper manner
Product may be subject to technical or software upgrading without further notice
Model:
HTC-60H
HTCD-160
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Haier HTC-60H
Summary of Contents for Haier HTC-60H
- Page 1 Solar Vaccine Refrigerator Operation Manual Model: HTC-60H HTCD-160 Read carefully the manual before use The company reserves the right to interpret the manual Appearance of product in kind prevails Keep the manual along with invoice after reading in a proper manner...
-
Page 3: Product Feature
Equipped with USB charge jack, it can be used to charge devices such as cellphones. We apologize that the Haier solar energy product provided for you may be a little different from the figure in the manual due to product improvement. The manual may be subject to changes without... -
Page 4: Table Of Contents
Content: Product Feature..............Content................. Safety Precautions............... Precautions for Use.............. Product Installation............... Component Names.............. Application method.............. Cleaning and Maintenance..........Circuit Diagram..............Specification................ -
Page 5: Safety Precautions
Safety Precautions Dear Haier User: Thanks for using Haier solar product. In order to use the product better, please make sure to read safety notes in this manual carefully. Does Don’t The solar panel shall be equipped with a lightning conductor;... - Page 6 Please hold the door handle to close the door cover of the product to prevent from finger injury. Do not connect the product to the ground via coal gas pipeline, water supply pipeline, telephone line or lightning rod. Otherwise, electric shock or other dangers might be caused. It is strictly forbidden to connect the cathode and anode of the storage battery in the wrong way, if the product is equipped with an auxiliary battery.
-
Page 7: Precautions For Use
Precautions for Use • For product with batteries, disconnect the switch of battery connecting lines if the product will be out of service for long time. Reconnect the battery switch when it is put into operation again. • Make sure the temperature inside the product has reached the set value and then put into the articles. -
Page 8: Product Installation
Product Installation Installation environment Ambient temperature: 5°C to 43°C, air conditioning system is required as necessary. Ambient humidity: below 85%Rh. Avoid excessive dust. Avoid mechanical swing or vibration. The product shall operate at an altitude lower than 2000m. Normal operation will be impossible for product if it is installed in environments Caution other than those described above as it is sensitive to ambient temperature. - Page 9 Preparation Before Use 1.Remove the packaging materials and strings Remove all packaging materials and strings for transport. The plastic packaging bags shall Caution be out of reach of children. 2.Count refrigerator accessories accompanied Check the articles inside the refrigerator against the packing list;...
- Page 10 6.Cable Selection Please refer to the table below for the selection of appropriate cable diameter and length if necessary. 24VDC 12VDC(Applicable for HTC-60H only) Specification Specification Maximum Length Maximum Length Cross Cross Section Section (mm²)[ Gauge] (Inch) (mm²)[ Gauge] (Inch) 7.Solar Panel Cable Connection...
- Page 11 Upper limit Lower After injection, tighten the water plug. 10.Battery Cable Terminal Connection (for HTC-60H only) This terminal shall be connected only if the product is equipped with an auxiliary Caution battery.
- Page 12 11.Main Power Switch The main switch button is on the external side of the electric control cabinet. After all harnesses and terminals are connected well, you can press the button “ON” of the main power switch after the product is kept silent for 2h above when the product is switched on for the first time. The button “ON of the switch has been pressed.
- Page 13 14.Selection of Installation Position of Solar Panel The solar panel shall face towards the equator, i.e. towards south on the Northern Hemisphere or north on the Southern Hemisphere. The dip angle of the solar panel shall depend on the terrestrial latitude of the installation location. See the picture below for the general dip angle of the solar panel.
- Page 14 Initial power-on Observe the rules below for initial start-up and continuous operation: When the refrigerator is empty, connect the product to appropriate solar panel or power supply. After power-on, the audible alarm may ring and this is normal. Press the buzzer to stop alarming.
-
Page 15: Component Names
Component Names Component Names HTC-60H Foam door Door handleD oor lock Drain holeT emperature controller... - Page 16 HTCD-160 Temperature display panel Door handle Door lock Foam door Door handle Door lock Foot Wheel...
- Page 17 Solar Vaccine Refrigerator System 1.Solar Vaccine Refrigerator 2.Solar Power Supply System (Optional) Solar panel Solar panel mounting bracket Ground rod, ground wire Wires connecting the solar panel and product Solar panel installation tool Caution...
-
Page 18: Application Method
Application method Refrigerating Compartment Controller (applicable for HTC-60H) Display panel introduction Refrigerating/heating indicator: During refrigerating output, this sign turns on; during heating output, this sign flickers; Power indicator: When the output power of the temperature controller is lower than 8.5VDC, this sign flickers and alarms. - Page 19 Parameter Setup The user can adjust high temperature alarm AH1 and low temperature alarm AL1 only. The operation procedure is described below: 1.Press the key SET for 3s. Then, the parameter code “PS” (password) is displayed on the display panel; 2.Use “△”...
- Page 20 Alarm Function Introduction （only for afer-sales service） Code Description Display Code Display Code Code Description Er1I ce storage sensor failure Ice storage low temperature alarm Refrigerating sensor failure Refrigerating high temperature alarm Freezing sensor failure Refrigerating low temperature alarm Ambient temperature sensor failure Freezing high temperature alarm Freezing low temperature alarm Ice storage high temperature alarm...
-
Page 21: Cleaning And Maintenance
Cleaning and Maintenance Component Cleaning Warning Before cleaning the product, turn off the main switch and cut off the power supply. The detergent for cleaning the product must be distilled. Otherwise, plastic parts or the casing surface color will be changed. If you want to stop using the product for a long time, the switch shall be off and the power supply shall be cut off and also the refrigerator shall be emptied. - Page 22 Solar Panel Maintenance Remove dust from the solar panel once per week or according to the actual demand. After the product is installed, tighten all screws again two weeks later; then, tighten them once per year afterwards. In order to avoid hidden hazards like fire, electrical connection and elements shall be checked and cleaned at least once per year.
- Page 23 About Product Scrapping Treatment The sign can be found on products, packages and documents delivered together with the products. It means the used electronic and electrical products and batteries shall not be mixed with household waste. In order to process, recycle and reuse old products and old batteries reasonably, please deliver them to the specified recycling place according to relevant national regulations of the country where the product is used and Decree 2002/96/EC &...
-
Page 24: Circuit Diagram
Circuit Diagram Circuit Diagram（HTC-60H）... - Page 25 Circuit Diagram（HTCD-160）...
-
Page 26: Specification
Specification Specification At a solar radiation reference period of : 3.5kWh/m²/day. Solar Vaccine Refrigerator Name Parameter HTC-60H HTCD-160 Ambient temperature(℃) +5 - +43 +5 - +43 +2 - +8 +2 - +8 Refrigerating ambient temperature range (℃) Freezing ambient temperature range (℃) - Page 27 Packing List HTCD-160 HTC-60H Part Name Introduction Manual Handle component Water injector Antiseptic substance Defrosting shovel...
- Page 28 Wearing Parts HTC-60H...
- Page 29 Model Part & Component Name Remarks Upper ice box 0270200225 Storage basket 0270100797 Hot water accumulator 0270200780 Heat strip 0270400367 0270102219A Door handle 0070814623 Including door lock Door hinge 0070816334 Internal fan 0074000329 Insulation panel 0270200490 Evaporator 0270700084 Ice pack 0070203825 Condenser 0270700395...
- Page 30 HTCD-160 Sensor of refrigeration control + 0274000358 Sensor of refrigerator sensor of display are inclusive Sensor of freeze control + 0274000357A Sensor of freezer sensor of display are inclusive 0274000353 Ice layer sensor...
- Page 31 Part & Component Name Model Remarks Lock catch 0070106913 Handle 0270801098 Lower handle（0270801098A） Temperature display panel 0274000357 Excluding sensors Fake hinge 0270200160 Hinge 0070107087 Heat conductor 0270700401A Evaporator 0270700400 Substratum evaporator ( 0270700400A) Internal door handle 0070204110 Upper hinge of internal door 0070106965A Internal door 0270200712...
- Page 32 Manufacturer: Haier Medical and Laboratory Products Co., Ltd. Address: Haier Industrial Park, Economic Technology Development Zone. Qingdao 266510.P.R.China Web:www.haiermedical.com Version:1st,2016 Dedicated code:0270501122 V13026...
