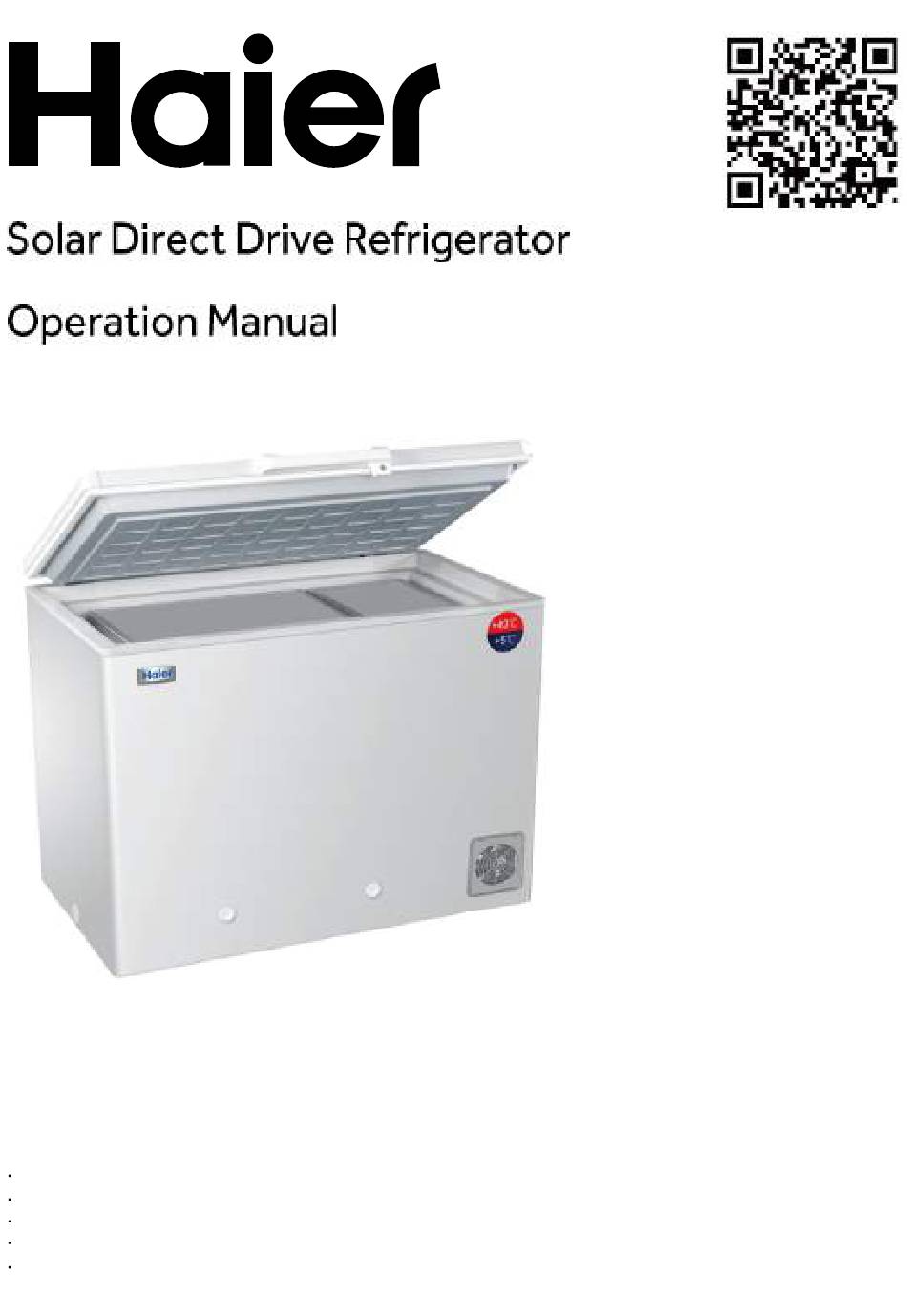

Haier HTC-40 Operation Manual

Solar direct drive refrigerator
Hide thumbs

Advertisement

Table of Contents

Please read the operation manual carefully before using your appliance.
The company reserves the interpretation right to this instruction.
The appearance of the refrigerator (freezer), please in kind prevail.
Please appropriately keep this manual with the invoice.
The technique or software of the refrigerator (freezer) will be updated without prior notice.
Model:
HTC-40
HTC-110
HTCD-90

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTC-40 and is the answer not in the manual?

Questions and answers

Related Manuals for Haier HTC-40

Summary of Contents for Haier HTC-40

  • Page 1 Model: HTC-40 HTC-110 HTCD-90 Please read the operation manual carefully before using your appliance. The company reserves the interpretation right to this instruction. The appearance of the refrigerator (freezer), please in kind prevail. Please appropriately keep this manual with the invoice.

  • Page 3: Product Feature

    This refrigerator (freezer) is applicable to the drug store, the pharmaceutical factory, the quarantine station, the health center, the hospital and other locations to store the biological products and other i tems to be stored at the temperature of 2-8℃ or to be frozen. Microprocesser control and the digital temperature display.

  • Page 4: Table Of Contents

    Content: Product Feature..............Content................. Safety precautions..............Application guidelines............Product Installation............... Component name..............Application method............... Cleaning and maintenance..........Circuit diagram..............Specification................

  • Page 5: Safety Precautions

    Safety Precautions Dear users, Thank you for choosing Haier solar refrigerator (freezer), please make sure you have carefully read and observed the contents with following signs in the manual, for better understanding of this manual and better use of this product, so as to prevent personal injuries and refrigerator damage.
  • Page 6 Do not connect the refrigerator (freezer) onto the ground via the gas pipeline, water supply pipeline, phone line, lighting rod or etc. Otherwise, there is the risk of electric shock or others. Do not connect the anode and cathode of solar panel reversely. Do not place or operate the refrigerator (freezer) in the open air.

  • Page 7: Application Guidelines

    Application guidelines: Please check if the inner temperature reaches the setting value before placing the goods into the refrigerator (freezer). Then, place a few items into the former in batches. The displayed temperature value of the refrigerator (freezer) refers to the temperature of the temperature sensing probe in the display box.

  • Page 8: Product Installation

    ℃ ℃ ℃ ℃...
  • Page 9 Preparation before use 1.Take off the packing material and the packaging tape Take off all packing materials and packaging tapes for transportation. keep the plastic bag away from the children. Caution 2.Check of accompanying accessories Please check the box contents as per the packing list. If there is any mistake, please contact the after-sales department timely.
  • Page 10 6.Cable selection If the user prefers to choose the cable on his option, please refer to the table below for the appropriate cable diameter and cable length. 24VDC Specification Maximum Length Cross section area (mm²)[ Gauge] (Inch) 7.Preliminary refrigeration verification (1) Directly connect the solar panel connection wire to that of the refrigerator (freezer).
  • Page 11 (2) Pour the complete bottle of corrosion inhibitor into the water tank of the refrigerator. (3) Place the purified water container (about 50L) in the higher location (higher than the water tank) on one side of the refrigerator (freezer). (4) Insert the suction hole of the water suction device into a water container and insert the water outlet into the water tank.
  • Page 12 Recommended installation angle of solar panel Caution The solar panel installed near the equator shall face the equator and the installation angle shall be 10°-15°. In such way, the solar panel surface can be washed by the rainwater. 10.Installation of solar panel Please attach the importance to the following items for the installation of solar panel: (1).The solar panel rack shall be fixed on a firm and flat ground in such a way that it is accessible to the maintenance staff and the security is guaranteed;...
  • Page 13 12.Equipment operation (1).Check if the compressor and the fan are functional when the equipment is powered on and operated. The cooling time of each refrigerator (freezer) varies due to the service environment. Generally, the inner temperature of the refrigerator can be dropped to (+2℃ to +8℃) in 4-5 days. The vaccine can be stored in the refrigerator at such temperature and the vaccine must be loaded in the vaccine basket (or the rack).Cover the internal and the external door.
  • Page 14 Initial power-on Please follow the regulations below for the first start and the continuous operation: Please connect the refrigerator (freezer) to the solar panel or the power supply of appropriate specification when the storage box is empty. The temperature controller screen will be illumed after being connected to the power supply. Corresponding parameters of this refrigerator (freezer) have been set before the deliver.

  • Page 15: Component Name

    Component Name HTC-40/110 Door HandleS olar energy input wire Internal door Hinge Condenser Basket Draining hole cap HTCD-90 Door Handle Condenser Cover plate of water box Internal refrigerator door Internal freezer door Eye ring Solar energy Hinge input wire Draining hole cap...
  • Page 16 Solar Direct Drive Vaccine Refrigerator 1.Vaccine Refrigerator 2.Solar power supply system (optional) Solar panel Solar panel mounting bracket Ground rod and ground lead Cable connecting solar panel and refrigerator (freezer) Installation kits forsolar panel...

  • Page 17: Application Method

    Usage Temperature controller Enter Control and display Control and display Upper and Lower screen of refrigerator screen of freezer This controller is installed in the electric cabinet for control the work of compressor, fan and heater strip. The parameters have been set before the delivery, which cannot be changed by the user. Introduction to alarm function (for reference of after-sales maintenance) Display code Code description...
  • Page 18 Temperature displayer ℃ ℃ Refrigerator Freezer Light Temperature Light receiving area display area receiving area REFRIGERATOR---display the temperature of the vaccine storage area; FREEZER---display the temperature of the ice raft refrigerating area; (applicable to HTCD-90) This displayer has the solar energy power supply function that the additional circuit connection is not required.

  • Page 19: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning part Turn off the main switch and disconnect the power supply before cleaning the device. Be sure to dilute the detergent of the product. Otherwise, the plastic component or the housing surface may be faded. Please turn off the switch, disconnect the power supply and empty the storage box if the product will not be used for a long period.
  • Page 20 Disposal treatment of refrigerator (freezer) A symbol, indicating the used electric and electronic products and the used batteries cannot be deemed as the general household garbage, will be given on the refrigerator (freezer), the package as well as the accompanying documents. To reasonably treat, recycle and reuse the disused productsA, please observe the related national regulations, 2012/19/EC and 2006/66/EC and return these disused products to the specified recycling stations.

  • Page 23: Specification

    ℃ ℃ ℃ ㎡...
  • Page 24 Packing list Model HTC-40 TC-110 TCD-90 Operation Manual Handle kits Water injector Corrosion inhibitor Ice scraper...
  • Page 25 Spare parts HTC-40 Including the refrigerating control Refrigerator sensor 0274000358 sensor and the display sensor Ice layer sensor 0274000353...
  • Page 27 HTC-110 Including the refrigerating control Refrigerator sensor 0274000358 sensor and the display sensor Ice layer sensor 0274000353...
  • Page 29 HTCD-90 Including the refrigerating control sensor and 0274000358 Refrigerator sensor the display sensor Including the freezing control sensor and the 0274000357A Freezer sensor display sensor 0274000353 Ice layer sensor...
  • Page 31 Manufacturer: Haier Medical and Laboratory Products Co., Ltd. Address: Haier Industrial Park, Economic Technology Development Zone. Qingdao 266510.P.R.China Web:www.haiermedical.com Version:1st,2016 Dedicated code:0270501122 V13026...
