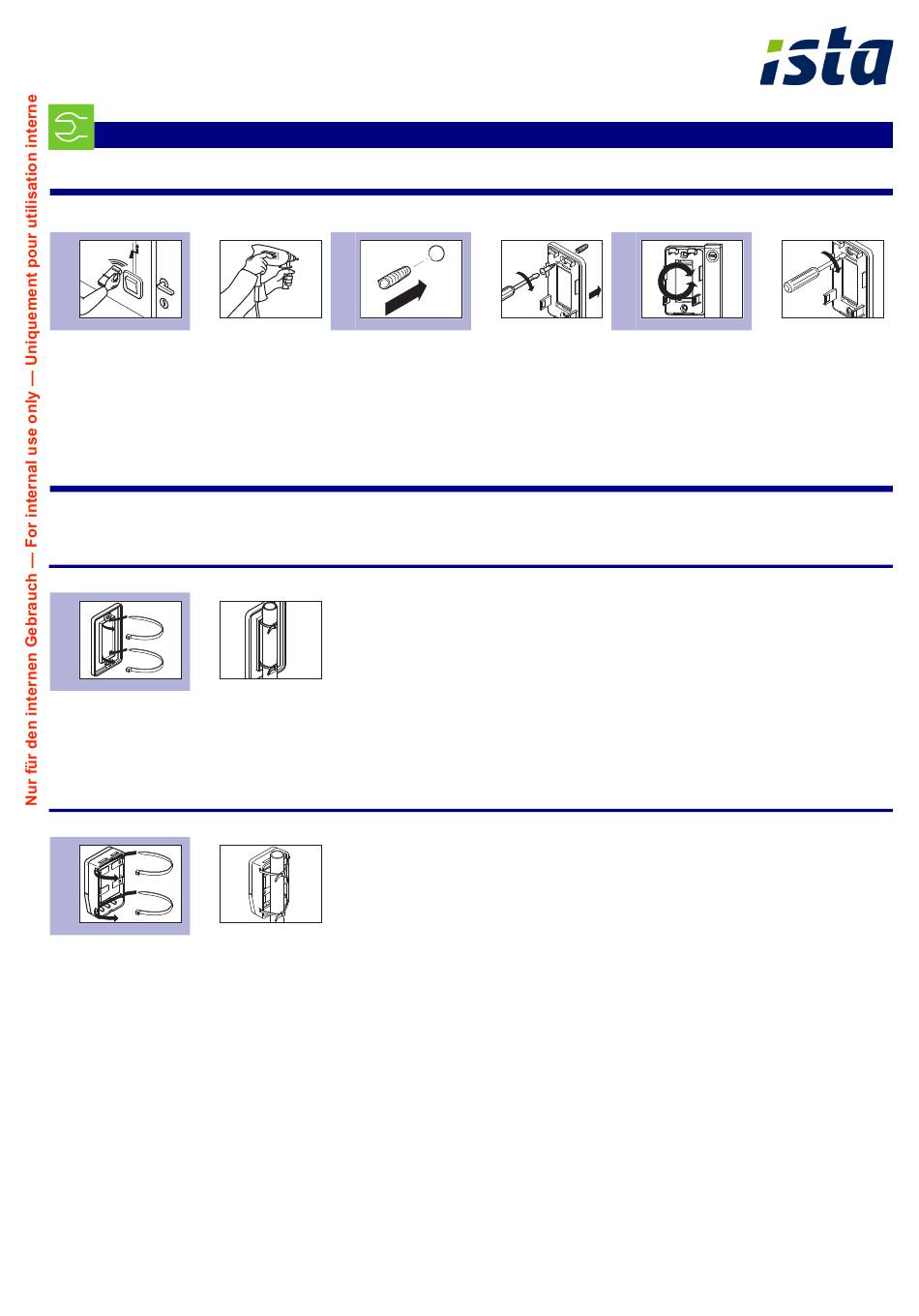

Installation

3.1

Screwed installation

1 2
1. Prior to drilling, check that there are no electricity cables,
gas or water pipes below the surface at the installation site.
2. Drill a hole (6 mm)
with a mounting plate for determining the hole distance.
3. Insert dowels.
3.2

Installation with cable ties

3.2.1 With mounting plate

1 2
1. Connect cable ties to the mounting plate.
2. Fasten the mounting plate with cable ties (e.g. with a pipe).

3.2.2 Without mounting plate

1 2
1. Connect cable ties to optosonic u 3 radio net .
2. Fasten the optosonic u 3 radio net with cable ties (e.g. with
a pipe).
Device Manual
2.4-Y optosonic u 3 radio net
3 4
4. Attach the mounting plate to the wall.
5. Align the mounting plate vertically
6. Tighten screws firmly.
5
using spirit level.
Continue with "Final steps", step 1.
Continue with "Final steps", step 1.
Continue with "Final steps", step 2.
6
