Placement Options

TABLETOP MOUNTING

The Studio Advance comes with extra riser feet (two per side) that magnetically attach to the Studio
Advance to raise it as much as 15.2 mm (5/8") off the tabletop so the Studio Advance will clear the
TV's protruding table stand.

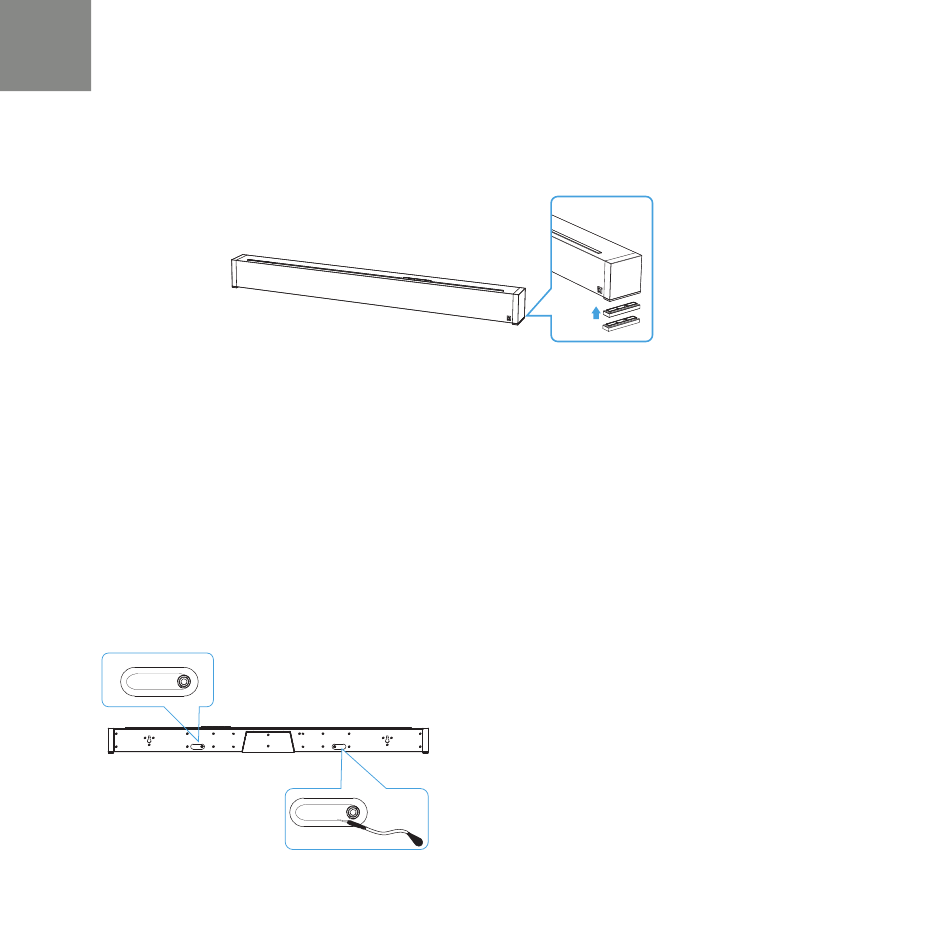

Attach magnetic feet: Peel off the protective cover and expose the magnets. Attach the feet to
the bottom edge of the Studio Advance.
NOTE: The Studio Advance could block your TV's remote "eye", making it impossible to control
the TV via remote control, so we supply an IR flasher. Plug the flasher into the Studio Advance IR
output and position it in front of the TV's eye.
IR INPUT
IR INPUT
812.8 mm
IR OUTPUT
812.8 mm
[32"]
IR OUTPUT
For custom installations: the IR input is more
likely to be used with a home automation system,
like Crestron or Control 4. This is often just an
electrical connection to a piece of equipment.
[32"]
