Radio Priority:
select the same antenna in both radios.
PTT Control & Force TX: You can use the PTT to control one of the following
options:
o Avoid Hot-switching: So the antenna will not be changed when the Radio
is in TX.
o Force TX: When the Radio changes to TX, a defined antenna will be
automatically activated. So you can use an antenna for TX and any
another for RX.
Control Radio A/B: You can use Band data (Yaesu, K3) or Band Voltage (Icom)
for automatic antenna selection.
Auxiliary Output: On models with 2x6 or 2x8 this output can be used to select a
band pass filter. In case you want to disabled this feature, you can disabled the
output.
Buzzer: The Buzzer is activated when the same antenna is selected on both
Radios. You can disabled the buzzer with this option.
4.5: Antenna configuration based on Band Data

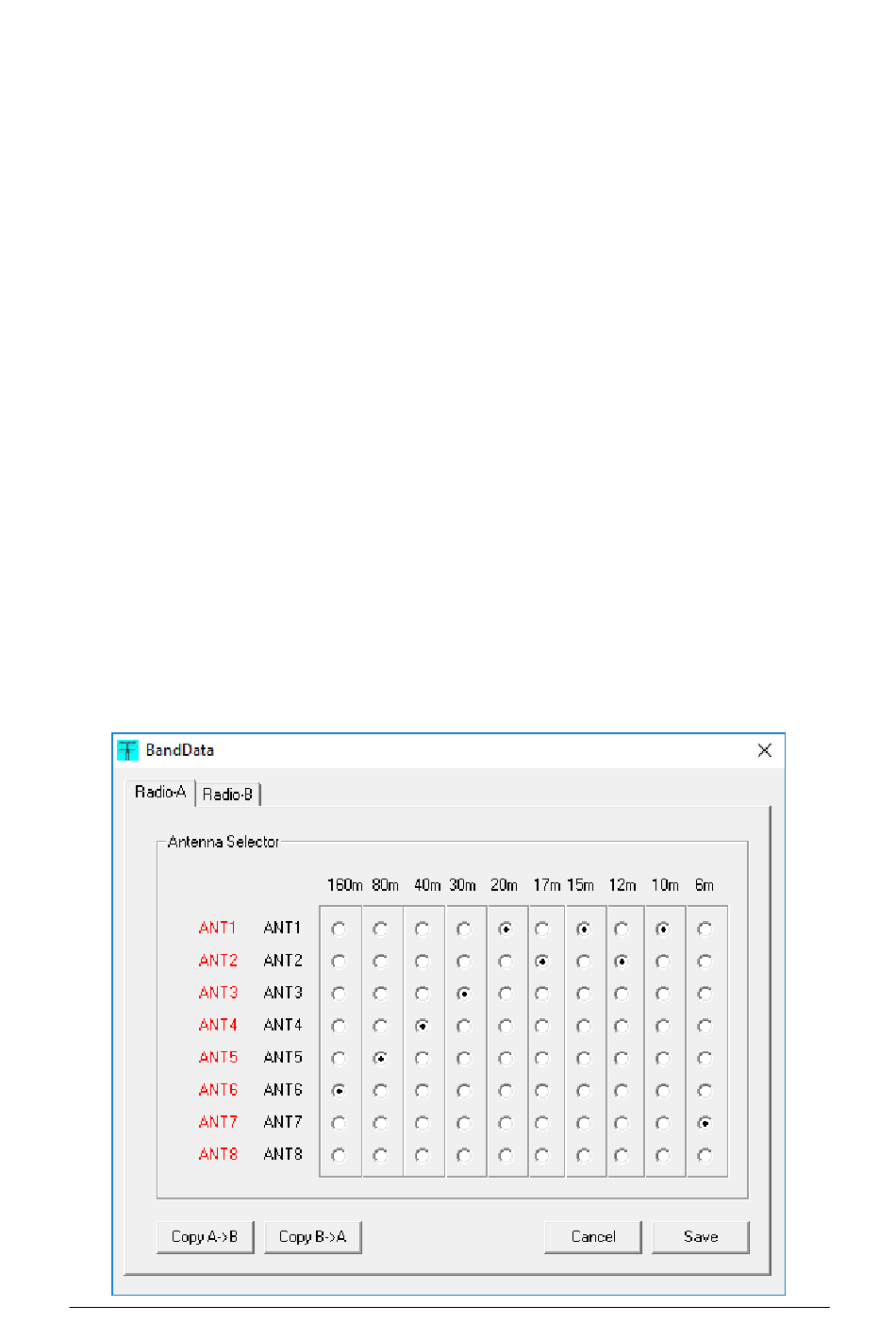

This is the matrix or true table that will assign the ANT1 and ANT2 outputs based on
the band for each Radio (A or B).
In this way, when it detect that the Radio A is on 10-15-20m will select ANT1.
This information can be read via: Band Data, Band Voltage Input (Icom) or
networking messages (Win-Test or N1MM)
Hardware Reference and Operational Manual: RemoteBox
You can select the priority for the Radios in case you try to
Page 21
