The pins (fork) receive acoustically the 32 kHz frequency of the quartz if
the vibrations are sufficiently transmitted to the watchcase. The motor
impulses are measured by an inductive receiver inside the microphone.
P7
Quartz
32 kHz
P8
Quartz
Motor
P9
Pendel
auto
Settings

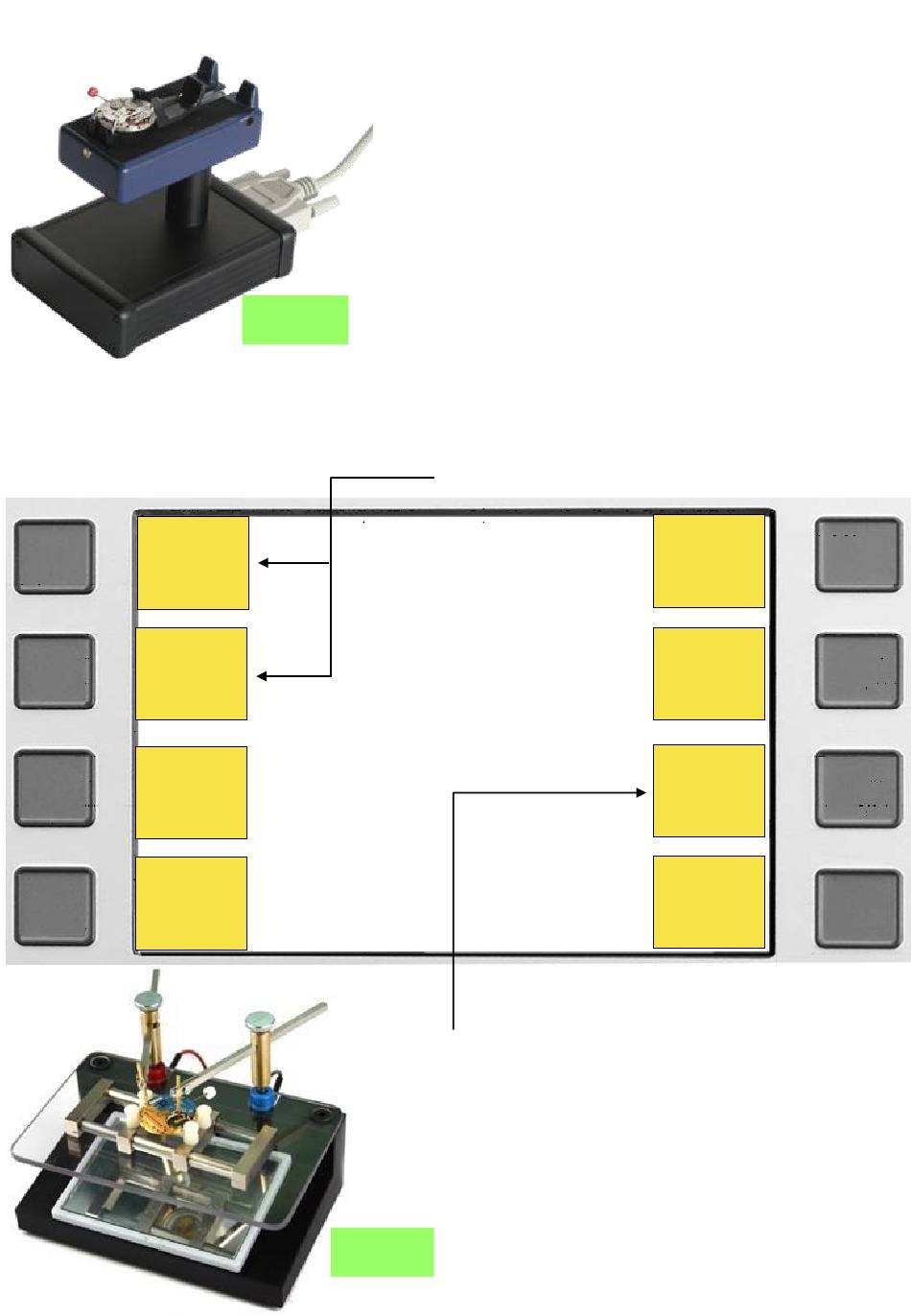

Testing quartz watches with „QM06"
QM06
EM06
Put the watch between the slider and
the pins (fork) of the microphone "QM06".
Press button "Auto QM06 only" to start
automatic measurement of the motor
impulses.
For manual measurement of the quartz
frequency or motor impulses, press first
button "More" then button "P7" or "P8".
"P7" o "P8"
Menu
Press button "EM06" for measuring:
rate of the quartz watch, consumption of
electricity (operational current, quiescent
current), ohms of the stepper motor and
the voltage of the battery.
Auto,
MP86
only
Auto,
QM06
only
EM06
More...
