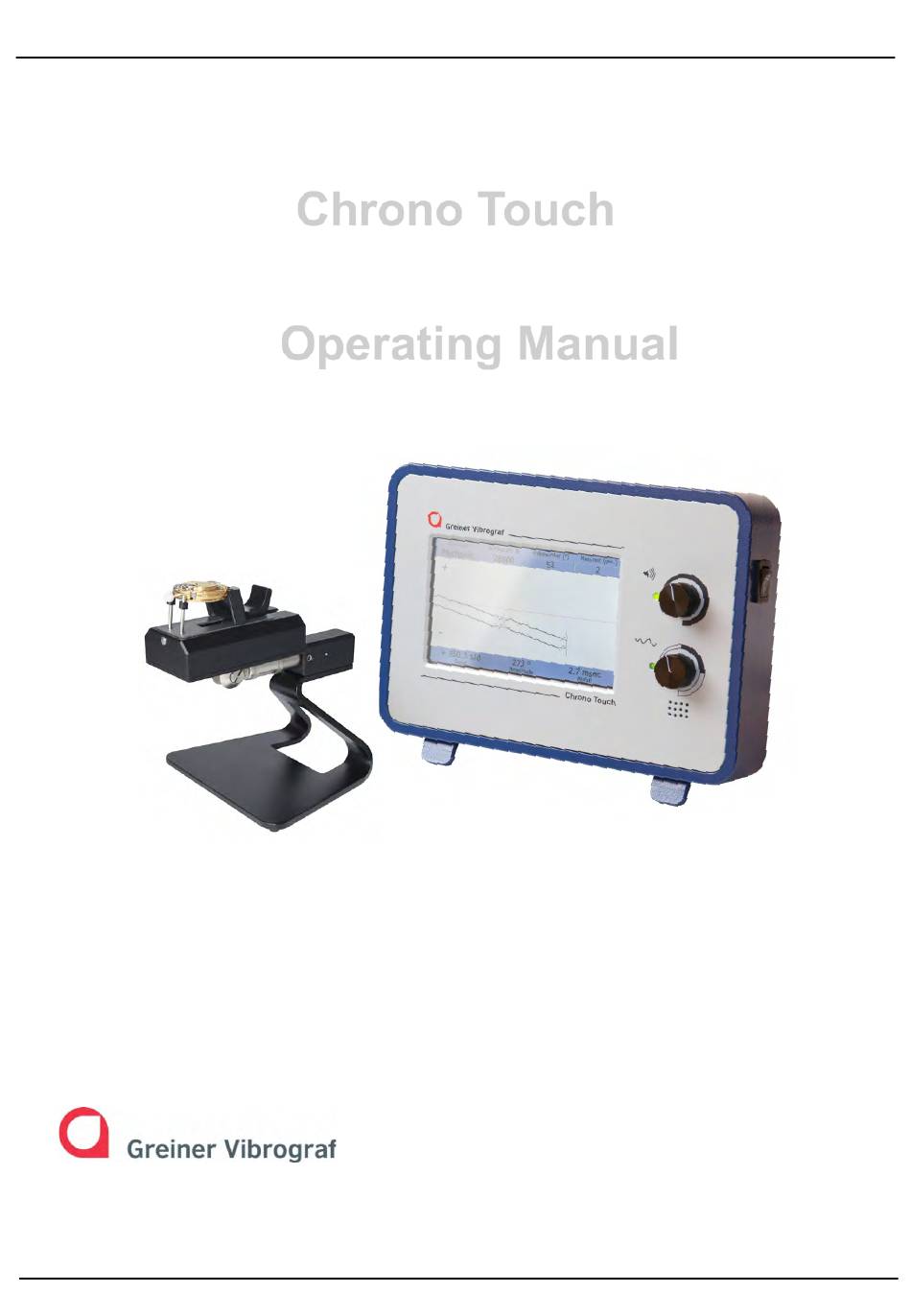

- Page 1 Page 1 Chrono Touch Operating Manual Gebrüder Boley GmbH & Co. KG Julius-Hölder-Str. 32 - D-70597 Stuttgart Tel. +49-(0)711-13271-0 - Fax. +49-(0)711-13271-90 info@boley.de - www.boley.de Operating Manual Chrono Touch Ver. 02/ 13...
-
Page 2: Table Of Contents
Page 12 - 14 - 3.2 Testing watches with a coaxial Page 15 - 16 escapement - 3.3 Testing pendulum clocks with a Page 17 - 18 clip-on microphone 4. Technical data Page 19 Operating Manual Chrono Touch Ver. 02/ 13... -
Page 3: Device Description
Page 3 DEVICE DESCRIPTION 1.1 Front Rotary knob for controlling volume Rotary knob for signal gain Loudspeaker Touchscreen 1.2 Side view On/Off switch Operating Manual Chrono Touch Ver. 02/ 13... -
Page 4: Rear View
Clip-on microphone for pocket watches and large clocks The clip-on microphone can be connected to the 15-pin connector at the rear of the Chrono Touch instead of the MP12. Operating Manual Chrono Touch Ver. 02/ 13... -
Page 5: Cleaning
After cleaning with a damp cloth, dry off the user interface with a new microfibre cloth. Once you have finished cleaning, it is important to wait approximately 30 minutes before switching the device on again. Operating Manual Chrono Touch Ver. 02/ 13... -
Page 6: Commissioning
The following display appears on the screen after a short time: After touching the "Info" button, the following information on the current status of the device's software appears: This information can prove necessary in the event of any technical queries. Operating Manual Chrono Touch Ver. 02/ 13... - Page 7 After touching the "Language" button, the following screen appears: Select the required language and confirm by touching the relevant button. The selected language button now has a green background. By touching the "Save" button, the selected language is saved. Operating Manual Chrono Touch Ver. 02/ 13...
- Page 8 Select the Date/Time button. The following screen appears: Modify and select the individual parameters by touching and then program into the menu by touching the "Save" button. The following appears on the screen again: Operating Manual Chrono Touch Ver. 02/ 13...
- Page 9 The following screen appears when you touch the "User" button: Each user can program and save his own address data in this box. By touching the "Save" button, the modified user data is saved: If you touch the arrow Operating Manual Chrono Touch Ver. 02/ 13...
- Page 10 The user can specify and program the test program he requires himself here. The required parameter buttons are selected and touched. The selected parameters are saved to the menu with the "Save" button. If you touch the arrow Operating Manual Chrono Touch Ver. 02/ 13...
- Page 11 "Standard parameters" program and save by touching the "Save" button. Touch the "Save" or "Cancel" buttons to return to the menu: If you touch the "Back" button, you are taken back to the Start menu. Operating Manual Chrono Touch Ver. 02/ 13...
-
Page 12: Measurement
The following screen appears here again: The following screen appears when you touch the "Measurement" button: The selected and programmed values are displayed. When you touch the "Start" button, the following screen appears: Operating Manual Chrono Touch Ver. 02/ 13... - Page 13 Confirm and print out with “OK”. You can use the "Delete all" button to delete all the data again. Operating Manual Chrono Touch Ver. 02/ 13...
- Page 14 MEASUREMENT If you touch "Single beat“, the following display appears on the screen: By touching the display in the bottom right-hand corner of the screen, you will go immediately to the following screen: Operating Manual Chrono Touch Ver. 02/ 13...
-
Page 15: Testing Watches With A Coaxial
Page 15 MEASUREMENT 3.2 Testing watches with a co-axial escapement Start via the "Chrono Touch" screen: After touching the "Measurement" button, the following appears: On the "Measurement" screen, select "Co-axial" as watch type. Enter the beat number, fixed beat number, lift angle, and measurement time. - Page 16 After touching “Start”, this appears on the screen: Measurement starts and the rates are displayed: The other measurements are called up and programmed like in the "Mechanical watches" program (see pages 12 + 13) Operating Manual Chrono Touch Ver. 02/ 13...
-
Page 17: Testing Pendulum Clocks With A
Page 17 MEASUREMENT 3.2 Testing pendulum clocks with a clip-on microphone Start via the "Chrono Touch" screen: The following screen appears when you touch the "Measurement" button: On the "Measurement" screen, touch "Pendulum" watch/clock type. Enter the beat number, fixed beat number, lift angle and measurement time ranges. - Page 18 Displayed on counter “T” is the test time elapsed. In the “N-CNT" area: the currently measured beat number in beats/h is displayed. In the "N-ITG" area: the integrated beat number/h determined over the entire test time is displayed. Operating Manual Chrono Touch Ver. 02/ 13...
-
Page 19: Clip-On Microphone
Ethernet (LAN), DSUB 15, 2 USB ports, Lemo socket for microphones, mains adapter, Measurement options: Mechanical watches: Beat number (automatic and manual) Rate variation Amplitude Beat error Oscilloscope display of double and single beat noise Additional options: Clip-on microphone Operating Manual Chrono Touch Ver. 02/ 13...
