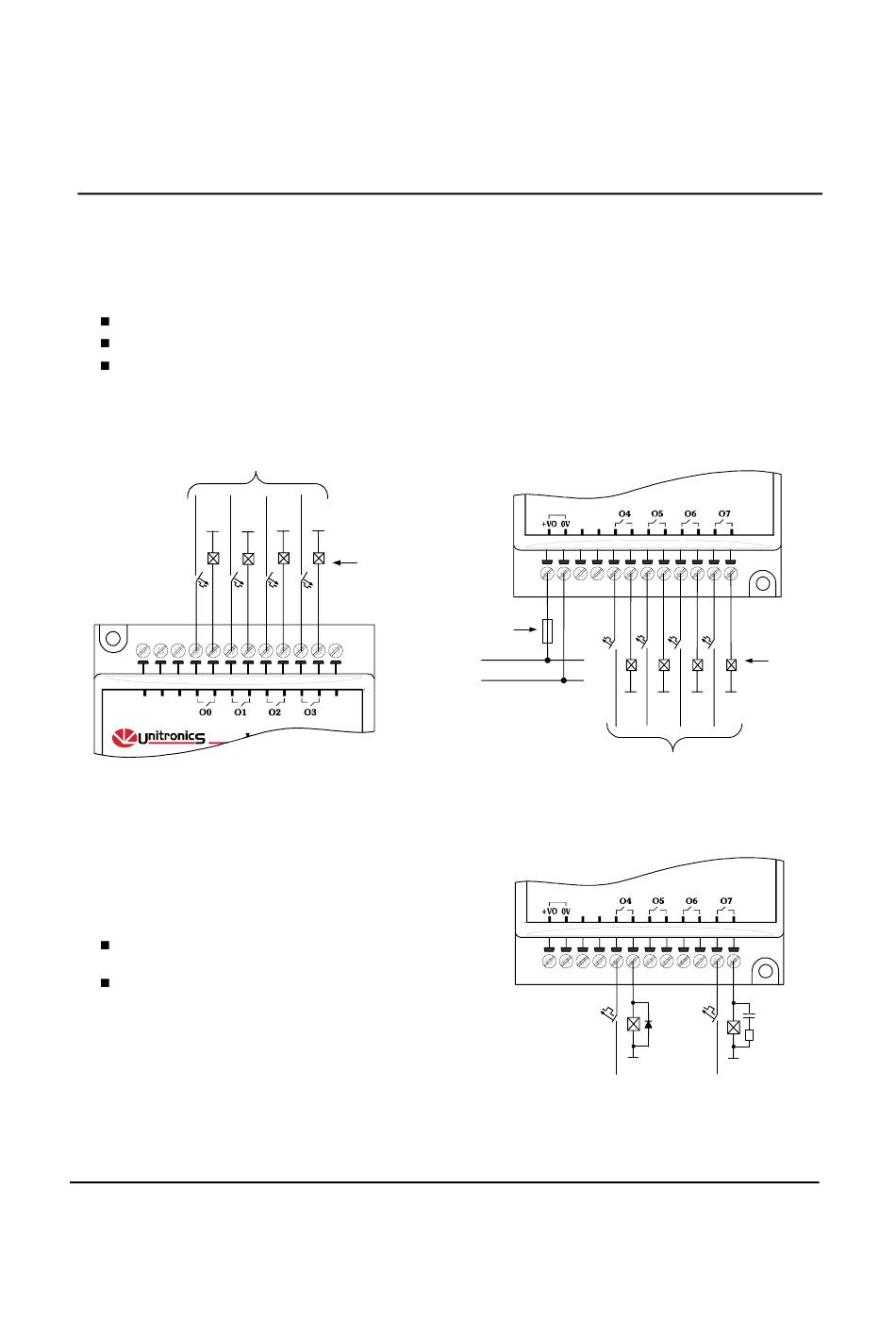

Wiring Outputs' Power Supply
1 Connect the "positive" cable to the "+VO" terminal, and the "negative" to the "0V"
terminal.
A non-isolated power supply can be used provided that a 0V signal is connected to the chassis.
Do not connect the 'Neutral' or 'Line' signal of the 110/220VAC to the device's 0V pin.
In the event of voltage fluctuations or non-conformity to voltage power supply specifications, connect the
device to a regulated power supply.
+V (24VDC)
L1, L2, L3 (115/230VAC)
0V 0V
N N
Increasing Contact Life Span
Both models have 8 relay outputs. To increase the
life span of these contacts and protect the module
from potential damage by reverse EMF, connect:
a clamping diode in parallel with each
inductive DC load,
an RC snubber circuit in parallel with each
AC
inductive load.
* Note that only the IO-RO8 requires 24VDC as
shown; IO-RO8L requires 12VDC.
