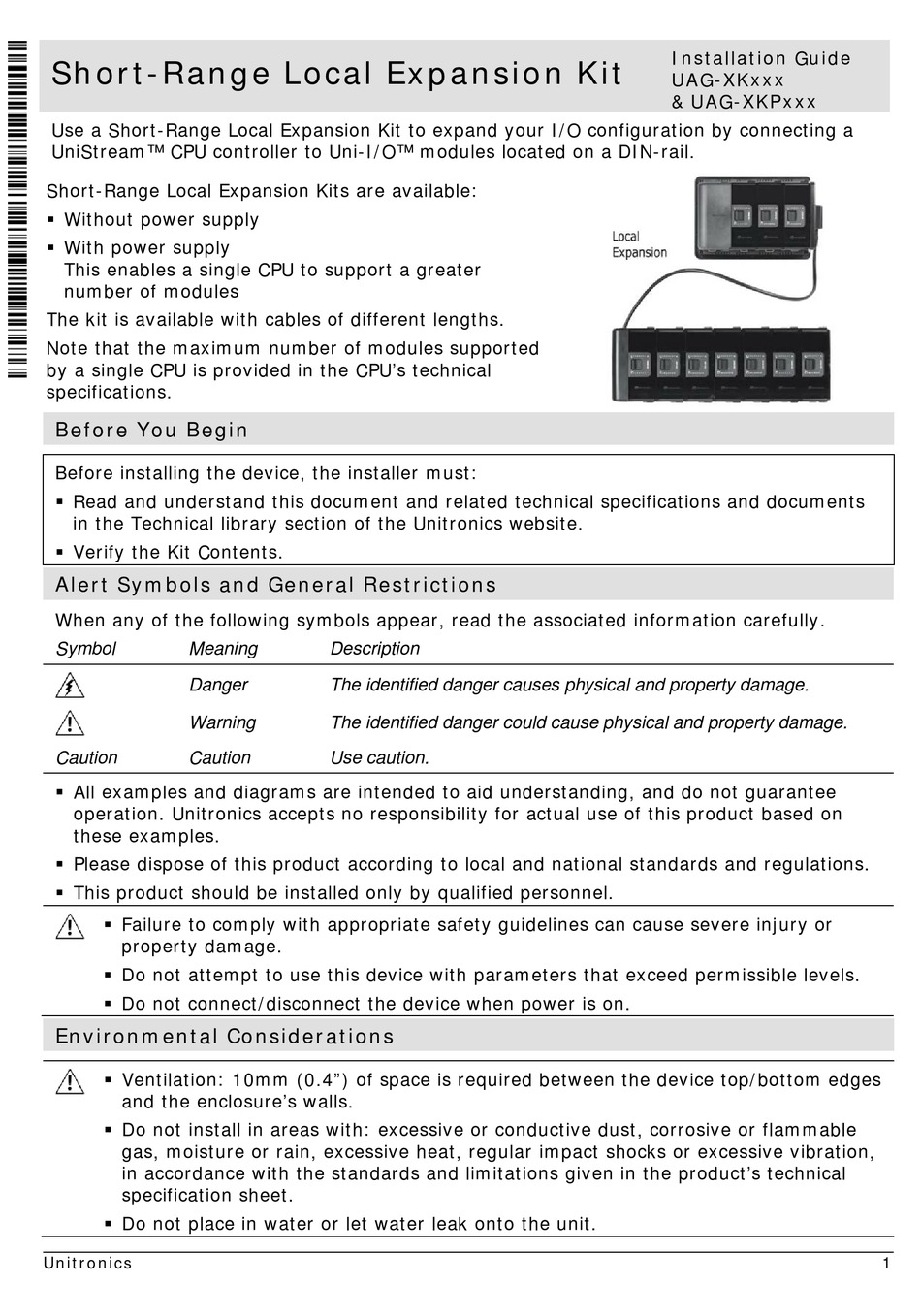

Unitronics UAG-XK series Installation Manual

Short-Range Local Expansion Kit
Use a Short-Range Local Expansion Kit to expand your I/O configuration by connecting a
UniStream™ CPU controller to Uni-I/O™ modules located on a DIN-rail.
Short-Range Local Expansion Kits are available:
 Without power supply
 With power supply
This enables a single CPU to support a greater
number of modules
The kit is available with cables of different lengths.
Note that the maximum number of modules supported
by a single CPU is provided in the CPU's technical
specifications.

Before You Begin

Before installing the device, the installer must:
 Read and understand this document and related technical specifications and documents
in the Technical library section of the Unitronics website.
 Verify the Kit Contents.

Alert Symbols and General Restrictions

When any of the following symbols appear, read the associated information carefully.
Symbol Meaning
Danger
Warning
Caution Caution
 All examples and diagrams are intended to aid understanding, and do not guarantee
operation. Unitronics accepts no responsibility for actual use of this product based on
these examples.
 Please dispose of this product according to local and national standards and regulations.
 This product should be installed only by qualified personnel.
 Failure to comply with appropriate safety guidelines can cause severe injury or
property damage.
 Do not attempt to use this device with parameters that exceed permissible levels.
 Do not connect/disconnect the device when power is on.

Environmental Considerations

 Ventilation: 10mm (0.4") of space is required between the device top/bottom edges
and the enclosure's walls.
 Do not install in areas with: excessive or conductive dust, corrosive or flammable
gas, moisture or rain, excessive heat, regular impact shocks or excessive vibration,
in accordance with the standards and limitations given in the product's technical
specification sheet.
 Do not place in water or let water leak onto the unit.
Unitronics
Description
The identified danger causes physical and property damage.
The identified danger could cause physical and property damage.
Use caution.
Installation Guide
UAG-XKxxx
& UAG-XKPxxx
1
