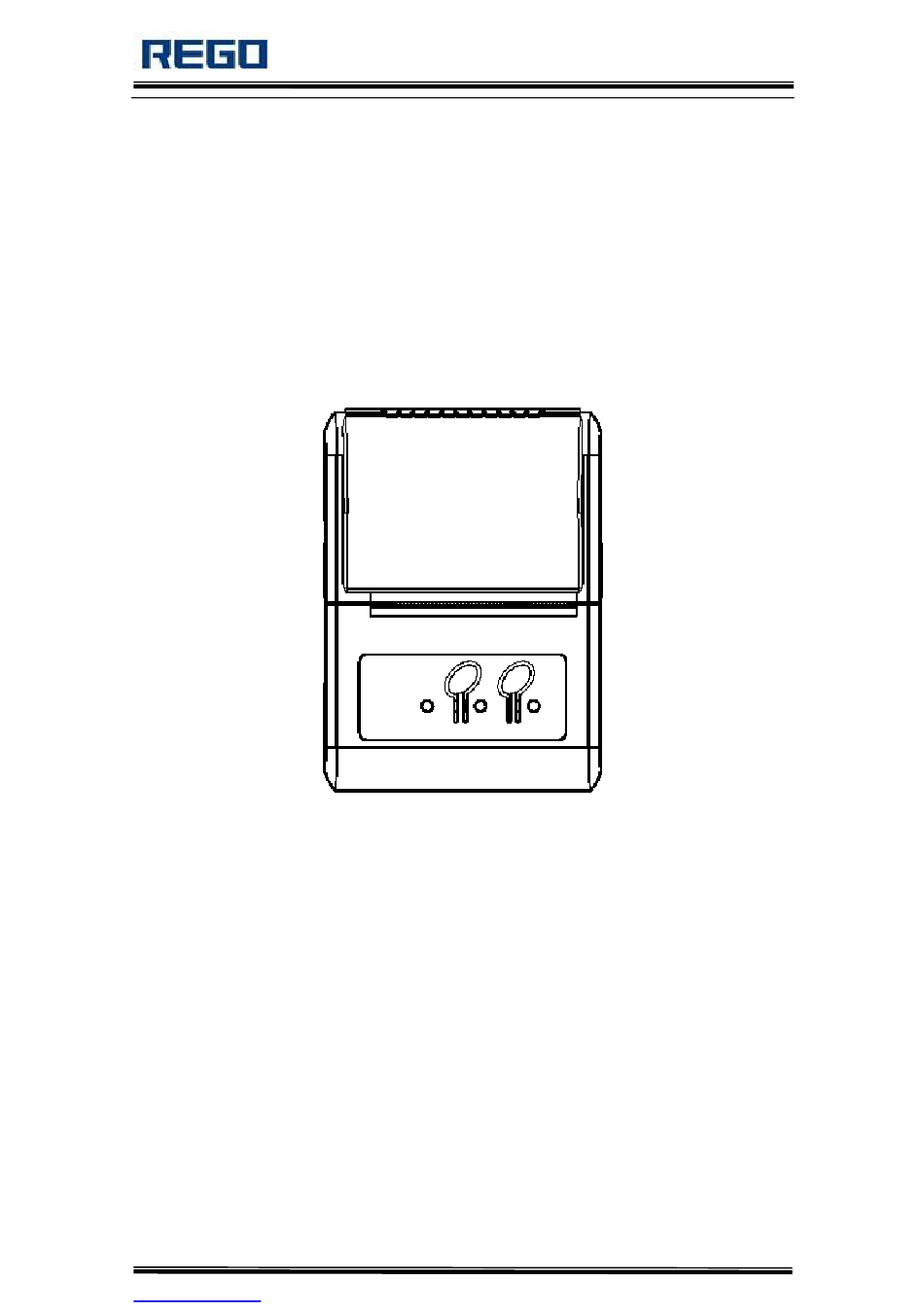

RG-MTP58B User Manual RG-MTP58B User Manual V1.01 Beijing RuiGong Tech Co., Ltd. www.regotek.com - 1 -... -
Page 2: Table Of Contents
RG-MTP58B User Manual content Precautions ....................- 4 - Safety Precautions ..................- 4 - Operation Precautions ................. - 4 - Storage Precautions ..................- 5 - Chapter I Appearance and Model ............. - 6 - 1.1 Appearance ................... - 6 - 1.2 Model .................... - Page 3 RG-MTP58B User Manual 5.1.5 AP Settings Page ................- 21 - 5.1.6 Other Setting Page ................- 22 - 5.1.7 Account Management Page ............. - 23 - 5.1.8 Software Upgrade Page ..............- 23 - 5.1.9 Module Reset Page ................. - 24 - 5.1.10 Restore Factory Default Settings ...........
-
Page 4: Precautions
RG-MTP58B User Manual Precautions Please read the manual carefully and strictly follow the instructions to operate the printer. Safety Precautions Be sure to use the specified battery and power supply provided by our company. Otherwise it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. -
Page 5: Storage Precautions
RG-MTP58B User Manual refer to details in Chapter 4.2), otherwise the black mark can not be detected correctly. It would be better use up the power of the battery before charge up it, as it can ensure the using life of the battery. Usually the life the battery is: it only has 80% capacity after charge and discharge 500 times. -
Page 6: Chapter I Appearance And Model

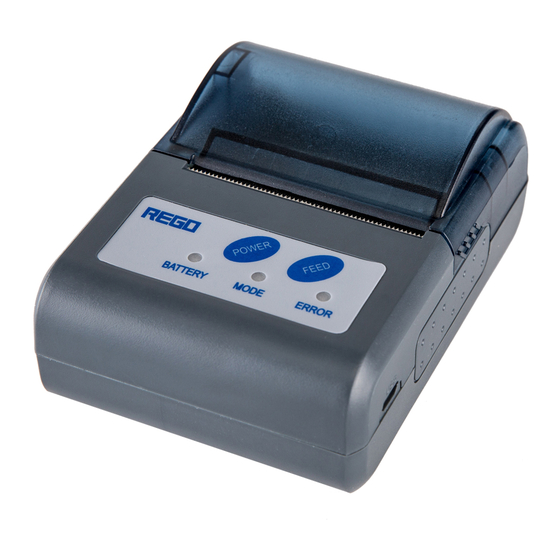

RG-MTP58B User Manual Chapter Ⅰ Appearance and Model 1.1 Appearance Platen Paper Housing 【POWER】 【FEED】 【BATTERY】 【MODE】 【ERROR】 【BATTERY】: Battery indicator 【MODE】: Mode indicator 【ERROR】: Error indicator 【POWER】: Power button【FEED】: Feeding button www.regotek.com - 6 -... -
Page 7: Model
RG-MTP58B User Manual 1.2 Model RG – MTP58B - ** Interface S: Serial U: USB BTi: 4.0Dual Mode Bluetooth W: WI-FI Product Model Manufacture code RG-MTP58B-SU Support serial and USB RG-MTP58BBT- SUBTi Support serial, USB, 4.0 Dual Mode Bluetooth RG-MTP58BW-SUW Support serial, USB, WI-FI www.regotek.com... -
Page 8: Chapter Ii Features
Paper ending detection: When running out of paper, the printer‟s ERROR LED has been lit. If set to allow Beep alarm, the internal buzzer will beep and stops printing. Printing commands: ESC/POS compatible with command set (Details see REGO thermal printer commands manual) www.regotek.com - 8 -... - Page 9 RG-MTP58B User Manual Power supply: 7.4V/2000mAh rechargeable lithium polymer battery Battery alarm: When the battery power is out, the printer [BATTERY] red indicator light flashes Recharge: Fast charging, about 3 hours Available time on one charge: Less than 25% print density, printing length is greater than 120 meters, standby time is more than 120 hours.
-
Page 10: Chapter Iii Operation Method
RG-MTP58B User Manual Chapter Ⅲ Operation Method 3.1 Preparation Before Use 3.1.1 Battery Installation 1. Place the battery in the battery slot. 2. Place the battery cover and lock it. 3.1.2 Loading Paper Roll 1. Hold the cover on both sides, open the paper case cover 2. -
Page 11: Power Charging
RG-MTP58B User Manual Enter Hex printing: In power off mode, first hold FEED button, then power on the printer, ERROR LED flashing, holding FEED button more than 3 seconds, then release FEED button, printer enter hex printing mode, and print an enter notice receipt. -
Page 12: Printer Connection And Print
RG-MTP58B User Manual 3.4 Printer Connection and Print 3.4.1 USB Connection RG-MTP58B printer USB interface standard is MICRO USB-B. Follow the USB printer protocol. 3.4.2 Serial Connection RG-MTP58B printer serial interface is compatible with RS232C. Support RTS/CTS and XON/XOFF handshaking protocol, connection interface model is JTC3-5A. -
Page 13: Bluetooth Connection
BLE). Power class is CLASS 2, effective communication distance is 10m. The Bluetooth of the printer belongs to the slave device. The initial name of the printer is RG-MTP58B, the initial password is „1234‟; users can change the printer name and password by using RG- SetTools. Please see the details in RG-SetTools User Manual. -
Page 14: Wi-Fi Connection
Network parameters: TCP, SERVER,9000,192.168.1.110; Printer IP address: DHCP,0.0.0.0,0.0.0.0,0.0.0.0; AP mode: The printer RG-MTP58B as a wireless access point, the other device as a wireless information terminal is connected to the printing. STA mode: The printer RG-MTP58B as a wireless terminal through a wireless access point connects with other devices. - Page 15 RG-MTP58B User Manual Flash 2 times: The printer is turned on and the wireless module (Bluetooth, WI-FI) is connected. 【ERROR】Indicator: Long lit: printer is out of paper Flash: Printer appears error. Different flashes, different errors. Automatic recoverable error, indicator light continuous flashing. Such...
- Page 16 RG-MTP58B User Manual Printer has a buzzer which can give prompt message. Pls. see the description of buzzer beep prompt message. Different buzzer beeps, different error types When printer is in error status, the meaning of beep number is the same as LED light flash number.
-
Page 17: Chapter Iv Other Settings
Chapter IV Other Settings 4.1 Technical Manual REGO Thermal Printer Technical Manual is used to support the developers to develop the application with RG-MTP58B, this manual can be obtained from the REGO. 4.2 Pre-printed Black Mark Description If user use pre-print black mark to locate the receipt, please be sure to abide by the following black mark pre-print regulation when print the black mark paper, if not ,it will cause that the printer can not identify the black mark. -
Page 18: Chapter V Wi-Fi Wireless Module Setting And User Guide
Setting and User guide 5.1 Web Management Page Description In the first use of WI-FI interface of RG-MTP58B, users need to set the WI-FI module. Users can connect PC with AP interface of RG-MTP58B, and set it by WEB management. -
Page 19: System Information Page
Pic. 5-2 System information page 5.1.3 Work Mode Selection Page WF-FI modules of RG-MTP58B can be used as a wireless access point (AP mode) , convenient for users to configure. It can also be used as a wireless information terminal (STA mode) by connection fortune server via a wireless router. -
Page 20: Sta Settings Page
RG-MTP58B User Manual Pic. 5-3 Work Mode selection page 5.1.4 STA Settings Page In this page, users can click on [search] button to automatically search for nearby wireless access points and connect it by setting the network parameters. It can be connected only when encrypted information is consistent with the corresponding wireless access point. -
Page 21: Ap Settings Page
RG-MTP58B User Manual Pic. 5-5 STA web search user router page 5.1.5 AP Settings Page When select the printer working in AP or AP + STA mode, users need to set up wireless and network parameters on this page. Most systems support DHCP to automatically obtain IP. -
Page 22: Other Setting Page
Pic. 5-6 AP settings page 5.1.6 Other Setting Page RG-MTP58B printers WI-FI modules: Connect the module and the printer via the serial port, the serial port parameters can not be altered, otherwise, it can not work properly. In this page, Users simply set the device to communicate with the TCP layer protocol parameters fortune. -
Page 23: Account Management Page
RG-MTP58B User Manual 5.1.7 Account Management Page This page is used to set the user-device Web Server user name and password Pic. 5-8 Account management page 5.1.8 Software Upgrade Page Users can update the firmware file on the local computer to upload the WI-FI modules firmware. -
Page 24: Module Reset Page
RG-MTP58B User Manual Pic. 5-9 Software upgrade page 5.1.9 Module Reset Page After the restart, newly saved configuration parameters will be used. Pic. 5-10 Module reset page 5.1.10 Restore Factory Default Settings www.regotek.com - 24 -... -
Page 25: Wi-Fi Interface Usage Instructions
RG-MTP58B User Manual After restore the factory settings, the user's former configuration will be deleted. Users can reconfigure at http://192.168.1.1, username and password are admin. And the system will automatically turn off STA mode wireless. Pic.. 5-11 Restore factory default settings 5.2 WI-FI Interface Usage Instructions... -
Page 26: The Initial Parameters
Use AP interface, PC connected with printer AP interface, shown as below: Pic. 5-13 AP interface connection debugging 5.2.3 The Initial Parameters Printer default SSID: RG-MTP58B Printer default encryption: open, none Printer default network parameters: TCP,Server,9000,192.168.1.1； Printer default IP address: DHCP,0.0.0.0,0.0.0.0,0.0.0.0；... - Page 27 RG-MTP58B User Manual Pic. 5-14“TCPUDPDbg” Create connection Then configure TCP/UDP connection parameter, default parameter shown as below Pic. 5-15“TCPUDPDbg” configuration Well-configuration, click “Create” Pic. 5-16“TCPUDPDbg” connection www.regotek.com - 27 -...
- Page 28 RG-MTP58B User Manual Then click connection button, after well-connected, users can send data via TCPUDPDbg to printer to control the printer for printing operation. Pic. 5-17“TCPUDPDbg”connection succeed www.regotek.com - 28 -...
