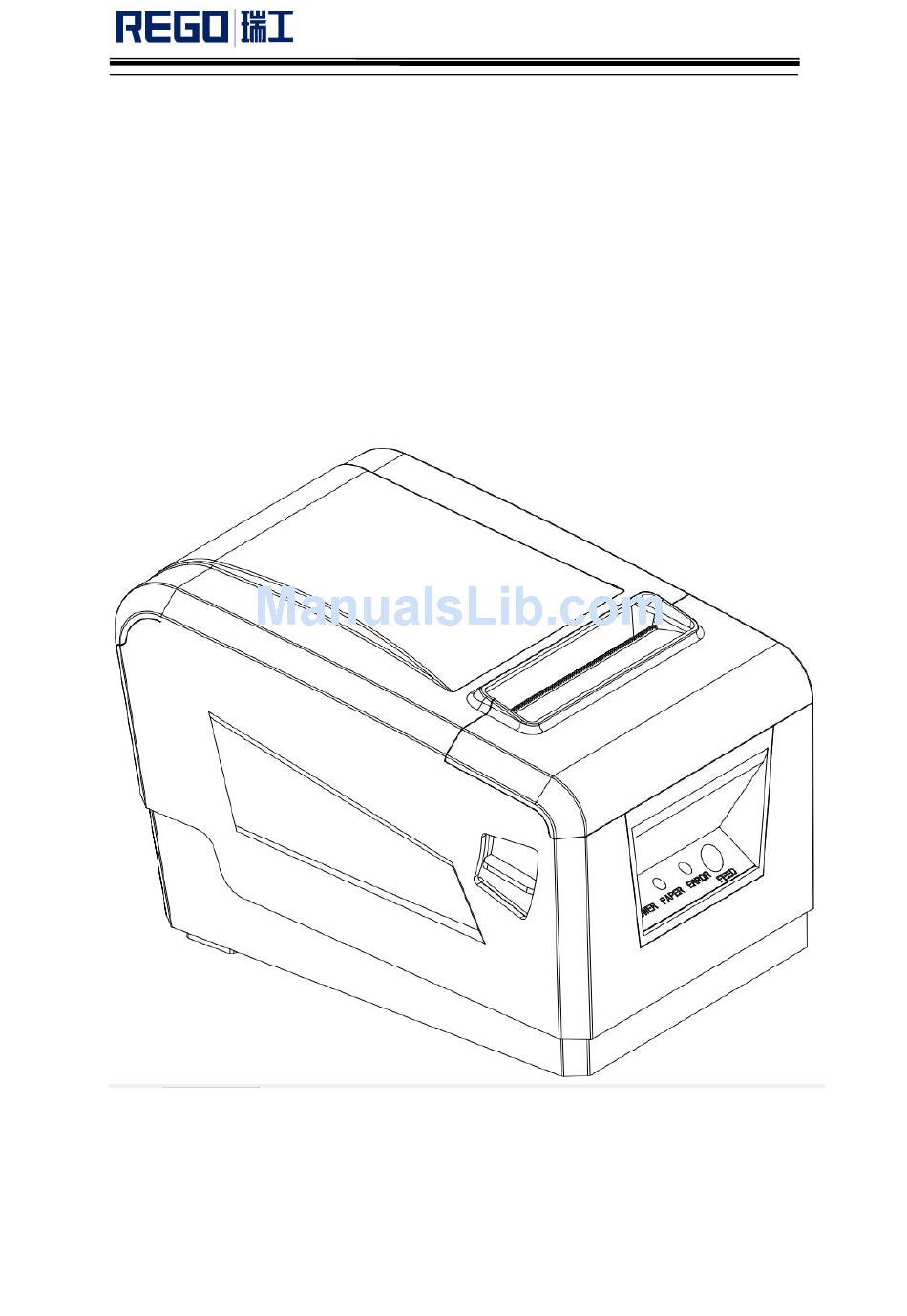

    RG-P80A User Manual RG-P80A User Manual V1.00 Beijing RuiGong Tech Co.,Ltd. - 1 -...
  • Page 2 RG-P80A User Manual Record Version Date Revision V1.00 2015.08.12 The first version - 2 -...

  • Page 3: Table Of Contents

    RG-P80A User Manual PRECAUTIONS......................- 5 - Safety Precautions...........................- 5 - Operation Precautions........................- 5 - Storage Precautions........................- 6 - CHAPTER I APPEARANCE AND MODEL............- 7 - 1.1 Appearance..........................- 7 - 1.1 Model............................- 8 - CHAPTER II FEATURES..................- 9 - 2.1 Print Performance........................
  • Page 4 RG-P80A User Manual CHAPTER V WI-FI WIRELESS MODULE............- 22 - SETTING AND USER GUIDE................- 22 - 5.1 Setting............................- 22 - 5.1 WI-FI Interface Usage Instructions..................- 22 - 5.2.1 Software Debugging Tools....................- 22 - 5.2.2 Net work Connection......................- 22 - 5.2.3 The Initial Parameters......................

  • Page 5: Precautions

    RG-P80A User Manual Precautions Please read the user manual carefully and strict compliance with use of following instructions before operating the printer. Safety Precautions Warning: Do not touch the cutter of printer. Warning: The print head is heating element; do not touch it and its peripheral parts during the printing process or the print just ended.

  • Page 6: Storage Precautions

    RG-P80A User Manual Storage Precautions The printer should be stored at a temperature of -40 ℃ to 70 ℃, relative humidity of 10% to 95% of the environment. Ordinary thermal paper storage time is shorter, if you want to print long-term preservation of documents, please use the long-term thermal paper.

  • Page 7: Chapter I Appearance And Model

    RG-P80A User Manual Chapter I Appearance and Model 1.1 Appearance 【MODE】：Wireless mode indicator， 【PAPER】: Lack of paper light, 【EROR】:Error light, 【FEED】:Feed key. - 7 -...

  • Page 8: Model

    W: WI-FI WC：Support cloud print via WIFI Product Model Manufacture code RG-P80A-SU Support serial and USB RG-P80A-SUBT Support serial, USB and Bluetooth 2.0 RG-P80A-SUBTi Support serial, USB and dual mode Bluetooth RG-P80A-SUW Support serial, USB and Bluetooth 2.0 - 8 -...

  • Page 9: Chapter Ii Features

    Paper ending detection: When running out of paper, the printer’s ERROR LED has been lit. If set to allow Beep alarm, the internal buzzer will beep and stops printing. Printing commands: ESC/POS compatible with command set (Details see REGO thermal printer commands manual) Power supply: DC 24V2A - 9 -...

  • Page 10: Chapter Iii Operation Method

    RG-P80A User Manual Chapter III Operation Method Preparation before Use Loading Paper Roll 3.1.1 1. Hold the cover on both sides, open the paper warehouse cover 2. Put a new roll in. Please take a notice that use a valid print surface on the outside of the paper 3.

  • Page 11: Printer Parameter Settings

    Printer Connection and Print 图 3.4 Connection 3.4.1 USB RG-P80A printer USB interface standard is USB-B. Follow the USB printer protocol. Serial Connection 3.4.2 RG-P80A printer serial interface is compatible with RS232C. Support RTS/CTS and XON/XOFF handshaking protocol, connection interface model is serial.

  • Page 12: Bluetooth Connection

    Send X-OFF 0x13 based on be access Table 3-2 Two types of handshaking Bluetooth Connection 3.4.3 Hand terminal, notebook and other intelligence terminal drive to printer through bluetooth. There are two versions of RG-P80A bluetooth, 2.0 and 4.0. - 12 -...

  • Page 13: Wi-Fi Connection

    Compatible with bluetooth 2.0 and bluetooth 4.0 standard bluetooth, power lever is CLASS 2. Effective distance is 10m. Bluetooth of printer is guest device. The initial device name for RG-P80A, the initial password is "1234" or "123456" (4.0 Bluetooth). Users can use the "tool set" to modify the device name and password.
  • Page 14 RG-P80A User Manual 3.5 Set wireless module to restore factory Bluetooth or WIFI restore factory: In power off mode, first hold FEED button, then power on the printer. After the light of “ERROR” flashes 4 times, release FEED button and it will restore factory after about 3 seconds.
  • Page 15 RG-P80A User Manual 【ERROR】LED: Long lit: printer is out of paper Flash: Printer appears error. Different flashes, different errors 1. Automatic recoverable error, LED light continuous flashing. Such as print head temperature error Error type Error description ERROR flashing way...

  • Page 16: Key Description

    Chapter IV Other Settings 4.1 Programming Command Manual “RG Thermal Printer Programming Command Manual” is a technical manual guide for users to develop REGO thermal printers, this manual can be obtained from the REGO. This manual includes printer hardware interface technical description, printing control commands set technical document, and how to print black mark, and how to position black mark.

  • Page 17: Hps: Hps Black Mark From The Edge Of The Printer To Print On The Edge Of Starting Distance.4.5Mm≤Hps≤6.5Mm

    RG-P80A User Manual Print position: Black mark should be printed on the left or right edge of the paper, the same as the drawing above. Width: ≥7mm Height: 4mm≤height≤6mm The reflectance of infrared light: <10% (The reflectance of infrared light of the rest of paper black mark width>65%)
  • Page 18 RG-P80A User Manual Cut/tear paper position offset distance =(L0+ Distance between two adjacent black labels－L) (mm) Cut/tear paper position offset distance =(L0+ Distance between two adjacent black labels－L)×8 (dot) ……………（2） Note 1: When set cut/tear paper position offset, GS (F command...
  • Page 19 RG-P80A User Manual Deviation distance of starting print position＝(Q-Q0)+ Cut/tear paper position offset distance - Distance between two adjacent black labels Deviation distance of starting print position＝[(Q-Q0)+ Cut/tear paper position offset－Distance between two adjacent black labels]×8 …………(5) 5. Printer inherent mechanical value (refer to 2.5.3) L0=A mm, Distance from cut/tear paper position to black label detection switch;...
  • Page 20 RG-P80A User Manual 计算切/撕纸位置偏移量 因为黑标在切/撕纸位置，即 L＝0，所以切/撕纸位置偏移量为： (33.6 - 0)×8 = 269 点。 使用如下命令设置切/撕纸偏移量 GS （ F <4><0><2><0><D><1> 计算起始打印位置的偏移量 (20-16)×8 + 269 = 301 点 使用如下命令设置起始打印位置偏移量 GS （ F <4><0><1><0><2D><1> 完成上述设置后,在打印每一单票据时： 用 GS FF 命令走纸到起始打印位置； 送每一单要打印的数据，并逐行打印这些数据； 用 GS V m 命令走纸到切/撕纸位置，将票据切/撕下。...
  • Page 21 RG-P80A User Manual GS （ F <4><0><1><0><165><0> 完成上述设置后,在打印每一单票据时，使用的命令序列与例 1 相同。 【例 3】票样要求：票长 140mm， 切/撕纸位置到黑标距离为 132mm， 起始打印位置距切/撕纸位置的距离为 20mm。 计算切/撕纸位置的偏移量 因为黑标距切/撕纸线的偏移量＞L0(45mm)，所以起始位置的偏移量 为： (33.46 + 140 - 132)×8 = 333 点 使用如下命令设置切/撕纸偏移量 GS （ F <4><0><2><0><4D><1> 计算起始打印位置偏移量 (20 - 16)×8 + 333 = 365 点...

  • Page 22: Chapter V Wi-Fi Wireless Module

    Chapter V WI-FI Wireless Module Setting and User guide 5.1 Setting In the first use of WI-FI interface of RG-P80A, users need to set the WI-FI module. Users can connect PC with AP interface of RG-P80A, and set it by WEB management.

  • Page 23: The Initial Parameters

    RG-P80A User Manual Pic. 5-13 AP interface connection debugging 5.2.3 The Initial Parameters Printer default SSID: RG-P80A Printer default encryption: open, none Printer default network parameters: TCP,Server,9000,192.168.1.1； 5.2.4 Printer Test Connection shown above to open TCPUDPDbg program in PC2, create a new connection.
  • Page 24 RG-P80A User Manual Pic. 5-15“TCPUDPDbg” configuration Well-configuration, click “Create” Pic. 5-16“TCPUDPDbg” connection Then click connection button, after well-connected, users can send data via TCPUDPDbg to printer to control the printer for printing operation. - 24 -...
  • Page 25 RG-P80A User Manual Pic. 5-17“TCPUDPDbg”connection succeed - 25 -...
