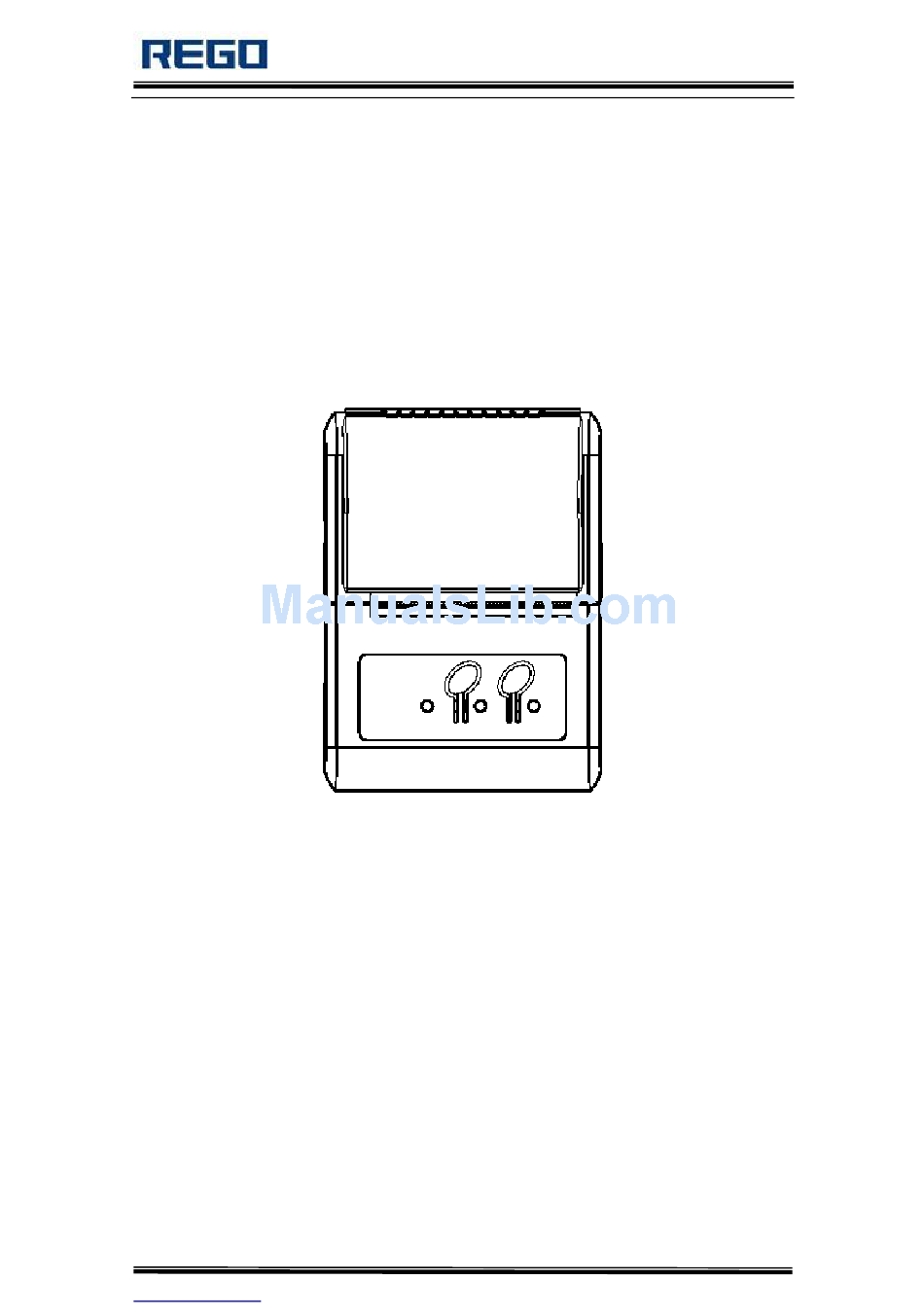

RG-MTP58B User Manual RG-MTP58B User Manual V1.00 Beijing RuiGong Tech Co., Ltd. www.regotek.com - 1 -... - Page 2 RG-MTP58B User Manual Record Version Date Revision V1.00 2014.05.12 The first version www.regotek.com - 2 -...
-
Page 3: Table Of Contents
RG-MTP58B User Manual content Precautions ....................- 5 - Safety Precautions ................- 5 - Operation Precautions ................- 5 - Storage Precautions ................- 6 - Chapter I Appearance and Model ..............- 7 - 1.1 Appearance ..................- 7 - 1.2 Model .................... - Page 4 RG-MTP58B User Manual 5.1.3 Work Mode Selection Page ..........- 21 - 5.1.4 STA Settings Page ............. - 22 - 5.1.5 AP Settings Page ..............- 23 - 5.1.6 Other Setting Page ............. - 24 - 5.1.7 Account Management Page ..........- 25 - 5.1.8 Software Upgrade Page .............
-
Page 5: Precautions
RG-MTP58B User Manual Precautions Please read the user manual carefully and strict compliance with use of following instructions before operating the printer. Safety Precautions Warning: Do not touch the cutter of printer. Warning: The print head is heating element; do not touch it and its peripheral parts during the printing process or the print just ended. -
Page 6: Storage Precautions
RG-MTP58B User Manual Instructions. Otherwise, it may cause the printer inaccurately detected the black mark Using out of batteries before charge them, in this case you can effectively ensure the battery life. Battery life is generally: ≥ 300 times charge and discharge times, battery performance will decrease based on the increase of charging. -
Page 7: Chapter I Appearance And Model
RG-MTP58B User Manual Chapter I Appearance and Model 1.1 Appearance Platen Paper warehouse 【POWER】 【FEED】 【BATTERY】 【MODE】 【ERROR】 【BATTERY】: Battery indicator 【MODE】: Mode indicator www.regotek.com - 7 -... -
Page 8: Model
RG-MTP58B User Manual 【ERROR】: Error indicator 【POWER】: Power button【FEED】: Feeding button 1.2 Model RG – MTP58B - ** Interface S: Serial U: USB BT: Bluetooth W: WI-FI Product Model Manufacture code RG-MTP58B-SU Support serial and USB RG-MTP58BBT-SUBT Support serial, USB, Bluetooth... -
Page 9: Chapter Ii Features
RG-MTP58B User Manual Chapter II Features 2.1 Print Performance Printing method: Direct thermal line Paper width: 58mm Printing effective width: 48mm Resolution: 8 dots/mm(203dpi) Dots/line: 384 dots Printing speed: Max 80mm/s Paper thickness: 60~80μm Font: GB18030-2000 and BIG5 (16*16 and 24*24),... -
Page 10: Others
If set to allow Beep alarm, the internal buzzer will beep and stops printing. Printing commands: ESC/POS compatible with command set (Details see REGO thermal printer commands manual) Power supply: 7.4V/2000mAh rechargeable lithium polymer battery Battery alarm: When the battery power is out, the printer [BATTERY] red... -
Page 11: Basic Function Operation
RG-MTP58B User Manual on the outside of the paper 3. Pull out the end part of the paper, put the paper in the machine paper- out center. 4. Close the paper cover torn off the excess paper. 3.2 Basic Function Operation 3.2.1 Power On... -
Page 12: Enter The Program Upgrade Mode
RG-MTP58B User Manual Hex printing: In power off mode, first hold FEED button, then power on the printer, ERROR LED flashing, holding FEED button more than 3 seconds, then release FEED button, printer enter hex printing mode, and print the entrance hex printing mode prompt message. -
Page 13: Printer Parameter Settings
Details see “Tool set” help file. This help file will be available along with software. 3.4 Printer Connection and Print 3.4.1 USB Connection RG-MTP58B printer USB interface standard is MICRO USB-B. Follow the USB printer protocol. 3.4.2 Serial Connection RG-MTP58B printer serial interface is compatible with RS232C. Support RTS/CTS and XON/XOFF handshaking protocol, connection interface model is JTC3-5A. - Page 14 RG-MTP58B User Manual The printer will be sent XON/XOFF to PC when operating the XON/XOFF handshake protocol. This signal reflect the printer status. SPACE indicates printer is ready, and can receive data. MARK indicates printer is busy, can receive data Signal ground Table 3-1 Serial interface pin no.definition...
-
Page 15: Bluetooth Connection
4.0. Compatible with bluetooth 2.0 and bluetooth 4.0 standard bluetooth, power lever is CLASS 2. Effective distance is 10m. Bluetooth of printer is guest device. The initial device name for RG-MTP58B, the initial password is "1234" or "123456" (4.0 Bluetooth). Users can use the "tool set" to modify the device name and password. -
Page 16: Indicator Light And Buzzer Description
Network parameters: TCP, SERVER,9000,192.168.1.110; Printer IP address: DHCP,0.0.0.0,0.0.0.0,0.0.0.0; AP mode: The printer RG-MTP58B as a wireless access point, the other device as a wireless information terminal is connected to the printing. STA mode: The printer RG-MTP58B as a wireless terminal through a wireless access point connects with other devices. - Page 17 RG-MTP58B User Manual Long lit: The printer is turned on and the wireless module (Bluetooth, WI-FI) in a disconnected state. Flash 1 time: External power supply is plugged, but the printer is turned off. Flash 2 times: The printer is turned on and the wireless module (Bluetooth, WI-FI) is connected.
-
Page 18: Chapter Iv Other Settings
Chapter IV Other Settings 4.1 Programming Command Manual “RG Thermal Printer Programming Command Manual” is a technical manual guide for users to develop RG-MTP58B, this manual can be obtained from the REGO This manual includes printer hardware interface technical description, printing control commands set technical document, and how to print black mark, and how to position black mark. - Page 19 RG-MTP58B User Manual Print position: Black mark should be printed on the left or right edge of the paper, the same as the drawing above. Width: ≥7mm Height: 4mm≤height≤6mm The reflectance of infrared light: <10% (The reflectance of infrared light of the rest of paper black mark width>65%)
-
Page 20: Chapter V Wi-Fi Wireless Module
Setting and User guide 5.1 Web Management Page Description In the first use of WI-FI interface of RG-MTP58B, users need to set the WI-FI module. Users can connect PC with AP interface of RG-MTP58B, and set it by WEB management. -
Page 21: System Information Page
Pic. 5-2 System information page 5.1.3 Work Mode Selection Page WF-FI modules of RG-MTP58B can be used as a wireless access point (AP mode) , convenient for users to configure. It can also be used as a wireless information terminal (STA mode) by connection fortune server via a wireless router. -
Page 22: Sta Settings Page
RG-MTP58B User Manual Pic. 5-3 Work Mode selection page 5.1.4 STA Settings Page In this page, users can click on [search] button to automatically search for nearby wireless access points and connect it by setting the network parameters. It can be connected only when encrypted information is consistent with the corresponding wireless access point. -
Page 23: Ap Settings Page
RG-MTP58B User Manual Pic. 5-5 STA web search user router page 5.1.5 AP Settings Page When select the printer working in AP or AP + STA mode, users need to set up wireless and network parameters on this page. Most systems support DHCP to automatically obtain IP. -
Page 24: Other Setting Page
Pic. 5-6 AP settings page 5.1.6 Other Setting Page RG-MTP58B printers WI-FI modules: Connect the module and the printer via the serial port, the serial port parameters can not be altered, otherwise, it can not work properly. In this page, Users simply set the device to communicate with the TCP layer protocol parameters fortune. -
Page 25: Account Management Page
RG-MTP58B User Manual 5.1.7 Account Management Page This page is used to set the user-device Web Server user name and password Pic. 5-8 Account management page 5.1.8 Software Upgrade Page Users can update the firmware file on the local computer to upload the WI-FI modules firmware. -
Page 26: Module Reset Page
RG-MTP58B User Manual Pic. 5-9 Software upgrade page 5.1.9 Module Reset Page After the restart, newly saved configuration parameters will be used. Pic. 5-10 Module reset page 5.1.10 Restore Factory Default Settings www.regotek.com - 26 -... -
Page 27: Wi-Fi Interface Usage Instructions
RG-MTP58B User Manual After restore the factory settings, the user's former configuration will be deleted. Users can reconfigure at http://192.168.1.1, username and password are admin. And the system will automatically turn off STA mode wireless. Pic.. 5-11 Restore factory default settings 5.2 WI-FI Interface Usage Instructions... -
Page 28: The Initial Parameters
Use AP interface, PC connected with printer AP interface, shown as below: Pic. 5-13 AP interface connection debugging 5.2.3 The Initial Parameters Printer default SSID: RG-MTP58B Printer default encryption: open, none Printer default network parameters: TCP,Server,9000,192.168.1.1； Printer default IP address: DHCP,0.0.0.0,0.0.0.0,0.0.0.0；... - Page 29 RG-MTP58B User Manual Pic. 5-14“TCPUDPDbg” Create connection Then configure TCP/UDP connection parameter, default parameter shown as below Pic. 5-15“TCPUDPDbg” configuration Well-configuration, click “Create” www.regotek.com - 29 -...
- Page 30 RG-MTP58B User Manual Pic. 5-16“TCPUDPDbg” connection Then click connection button, after well-connected, users can send data via TCPUDPDbg to printer to control the printer for printing operation. www.regotek.com - 30 -...
- Page 31 RG-MTP58B User Manual Pic. 5-17“TCPUDPDbg”connection succeed www.regotek.com - 31 -...
