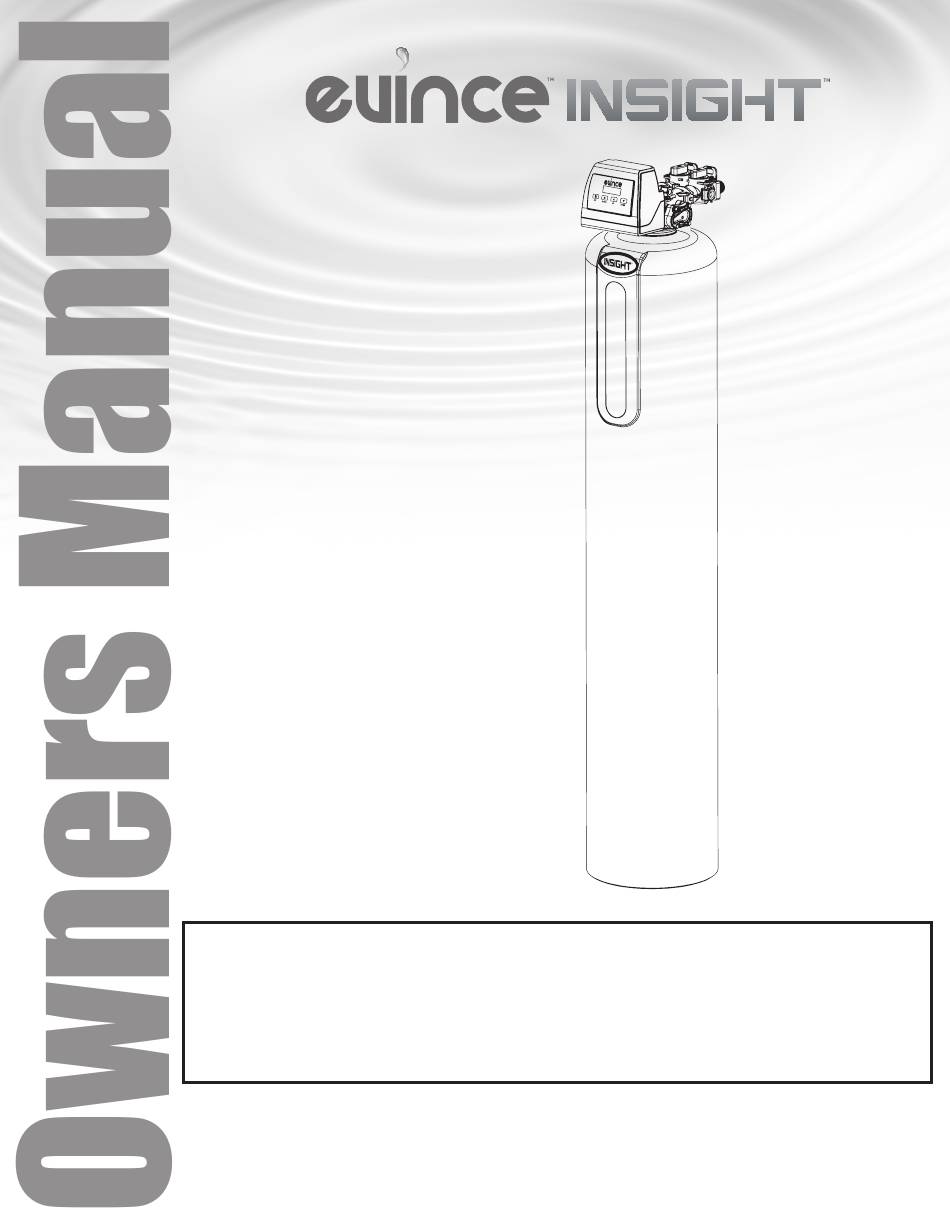

Evince Insight 100 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1. Page 14 of this manual contains important maintenance procedures for the continued proper
operation of your unit. These MUST be performed regularly for your warranty to remain valid.
2. Read all instructions carefully before operation.
3. Avoid pinched o-rings during installation by applying NSF certified lubricant to all seals (provided with install kit).
4. This system is not intended for treating water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.
Evince™ Direct Phone Number: 951.734.7400
108 Business Center Dr
Corona, CA 92880

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Insight 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Evince Insight 100

Summary of Contents for Evince Insight 100

  • Page 1 3. Avoid pinched o-rings during installation by applying NSF certified lubricant to all seals (provided with install kit). 4. This system is not intended for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Evince™ Direct Phone Number: 951.734.7400 108 Business Center Dr Corona, CA 92880...

  • Page 2: Table Of Contents

    READ THIS PAGE FIRST BEFORE STARTING INSTALLATION SPECIFICATIONS SPECIFICATION SYSTEM DIMENSIONS WATER AND TIME CONSUMED DURING REGENERATION INSTALLATION UNPACKING / INSPECTION BEFORE INSTALLATION PREPARATIONS WATER CONDITIONER INSTALLATION OPERATION STARTUP INSTRUCTIONS MAINTENANCE INSTRUCTIONS IMPORTANT WARRANTY AND MAINTENANCE INFORMATION REPLACEMENT TIMER REPLACEMENT PISTON AND/OR BRINE VALVE ASSEMBLY REPLACEMENT METER ASSEMBLY REPLACEMENT / CLEAN INJECTOR ASSEMBLY REPLACING THE BYPASS AND METER CABLE...

  • Page 3: Read This Page First

    READ THIS PAGE FIRST BEFORE STARTING INSTALLATION   Read this manual thoroughly to become familiar with the Avoid pinched o-rings during installation by applying appliance and its capabilities before installing or operating (provided with install kit) NSF certified lubricant to all seals. the new appliance.

  • Page 4: Specification

    Flow Rate USGPM Mineral Tank Pipe Size Ship Weight Models Media Cu Ft Service Peak Size Inches Evince Insight -100 1.00 9 x 48 3/4” - 1” Evince Insight -150 1.50 10.0 10 x 54 3/4” - 1” Evince Insight -200 2.00...

  • Page 5: Water And Time Consumed During Regeneration

    WATER AND TIME CONSUMED DURING REGENERATION Total Total Water Consumed Backwash Rapid Rinse Models Time of during Regeneration Minutes Minutes Regeneration (GAL) (Birm, TO, Neu) Step 3 Step1 Step 2 Control Valve Regeneration Sequence The regeneration cycle goes through 3 steps. 1.

  • Page 6: Unpacking / Inspection

    UNPACKING / INSPECTION Be sure to check the entire unit for any shipping damage or parts loss. Also note damage to the shipping cartons. Contact the transportation company for all damage and loss claims. The manufacturer is not responsible for damages in transit. Small parts, needed to install the Conditioner, are in a parts box.
  • Page 7 Check Valve Type and Valve Serial # Check to make sure Valve Type is Upflow (UF) (left Sticker shown below). The right Sticker shows the serial # of the control valve. The middle Sticker is dataplate which provides information of Serial # and Date of Manufacture of complete system. Both Serial # labels are important for troubleshooting. Please record these numbers for future use on page 23 in the maintenance section.

  • Page 8: Before Installation

    No- ryl bypass valve and/or poly pipe, an approved grounding Inspecting and Handling Your Evince Insight Conditioner* strap must be used between Inspect the equipment for any shipping damage. If damaged, notify the transportation company and request a damage the two lines that have been inspection.

  • Page 9: Preparations

    CAUTION! PREPARATIONS The unit should be Media Installation (When Necessary). Models including and higher than 2 CF (Models 200,300) of media are shipped with depressurized before separate media in pails or boxes. Models lower than 2 CF of media come loaded with media and this step can be skipped for installing or replacing media new installation.
  • Page 10 PREPARATIONS Determine the best location for your water conditioner, bearing in mind the location of your water supply lines, drain line and 120 volt AC electrical outlet. Subjecting the conditioner to freezing or temperatures above 43°C (110°F) will void the warranty. Please notice the inlet and outlet labels on the valve as shown here to determine the position of the equipment: Inlet...

  • Page 11: Water Conditioner Installation

    WATER CONDITIONER INSTALLATION Connect Conditioner to the HousePlumbing Any solder joints near the valve must be done before connecting any piping to the valve. Always leave at least 6” (152 mm) between the valve and joints when soldering pipes that are connected to the valve. Failure to do this could cause damage to the valve. Water Conditioner Installation Cold (Raw water) Cold (Filtered water)

  • Page 12: Startup Instructions

    STARTUP INSTRUCTIONS 2. Screen Display 1. Connect the Transformer to the Valve Familiarize with Button Configuration: Plug the 12-volt transformer into a 120 VAC 60 Hz outlet. 1. Connect the transformer to the valve. Plug the JAN/01/2017 12-volt transformer into 12:00AM a 120 VAC 60 Hz outlet.
  • Page 13 STARTUP INSTRUCTIONS (CONTINUED) 3a. (CARBON UNITS – Model TO) Open the inlet on the bypass valve slightly and very slowly allow water to enter the unit. (If the water enters too quickly it will push the media or carbon up into the control valve and get plugged). Once the unit has filled sufficiently that water is at least equal to the height of the top of the media shut down the water for 15 –...

  • Page 14: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS Care of Your Filter To retain the attractive appearance of your new water filter, clean occasionally with a mild soap solution. Do not use abrasive cleaners, ammonia or solvents. Never subject your filter to freezing or to temperatures above 43°C (110°F).

  • Page 15: Important Warranty And Maintenance Information

    ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ SERVICING EVINCE INSIGHT VALVE Before Servicing 1. Turn off water supply to conditioner : a. If the conditioner installation has a 3 valve bypass system first open the valve in the bypass line, then close the valves at the conditioner inlet & outlet.

  • Page 16: Replacement

    TIMER REPLACEMENT Piston Screw & Washer Meter Cable Front Cover 1. Disconnect the meter cable from the meter. (If flow 3. Remove the piston screw and washer from the piston 2. Remove the front cover of the valve. meter is attached) rod.

  • Page 17: Meter Assembly Replacement / Clean Injector Assembly

    METER ASSEMBLY REPLACEMENT Meter Cable 2X Clips & Screws 4. Remove the meter support and then the impeller out from 1. Disconnect the meter cable from the meter. the coupling and clean it 2. Disconnect the valve from bypass by removing clips 5.

  • Page 18: Replacing The Bypass And Meter Cable

    March 20th 2018 March 20th 2018 supply back into Press the SET to step through to PROGRAMING COMPLETE and past this until the wall socket Evince Insight U.S Gallon 8.000 5.680 TIME OF DAY screen appears. and follow the...

  • Page 19: Replace Drain Line Flow Control

    REPLACE DRAIN LINE FLOW CONTROL Drain Line Elbow 1. Pull the drain line clip and remove the drain line elbow and washer Clip 2. Clean/replace drain line washer Drain washer REPLACE MOTOR Motor Screws Motor 1. Remove the powerhead front cover 2.

  • Page 20: After Servicing

    AFTER SERVICING 1. Reconnect drain line 2. Return bypass or inlet valve to normal in service position. Water Pressure will automatically build in the Conditioner NOTE Be sure to shut off any bypass line. 3. Check for leaks at all sealed areas. Check Drain seal with the control in the backwash position 4.

  • Page 21: Powerhead

    PARTS BREAKDOWN Power head parts list Part # Description 60010331 Power Cable Clip 60010330 Meter Cable Clip 60010124 Power Cable 60010240 Display-PCB cable 60010115 Meter Cable 80080164 Face Label 60095662 Display Plate(White) Housing(White) 60010180 Display 92393 Motor 60010660 Motor Pin 60010673 Screw-ST2.9×10 60010179...

  • Page 22: Valve Body

    PARTS BREAKDOWN Valve Body Parts List Part # Description 60010075 Screw-M5x12(Hexagon) 60010076 Screw-M5x16(Hexagon With Washer) 60010645 End Plug Retainer Upflow Piston 60095056 Assembly 60010647 Piston Pin Quad Ring Plug Cover Downflow Piston Quad Ring 60010344 Assembly End Plug 60095058 Piston Retainer 60095075, 60095059 Piston(Up flow and Downflow) 13242-02...

  • Page 23: Bypass

    PARTS BREAKDOWN Bypass Parts List Part # Description 60010267 Grey Meter Cable cc 60010006 Bypass Tool 063 Bypass Body 60010026 O-ring on Inlet and Outlet 60010019 Straight 1" NPT Inlet and Outlet 60010023 Elbow 3/4" NPT Inlet and Outlet 60010025 Secure Clip Inlet and Outlet 60010740 Direction Indication Label...

  • Page 24: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE Problem Cause Correction 1. Filter bleeds taste and odor or A. Bypass valve is open A. Close bypass valve sediment B. Electrical service to unit has been interrupted B. Assure permanent electrical service (check fuse, plug or switch) C.
  • Page 25 MASTER PROGRAMMING GUIDE Step B - Advanced Menu Step C - Main Menu Press Menu key. Press — to advance to Advanced Menu Press Menu key. Press — to advance to Advanced Menu Press SET or until you hear a beep Press + or —...

  • Page 26: Diagnostic Screen

    DIAGNOSTIC SCREEN PRESS “SETTINGS” KEY AND SCROLL TO “MAIN MENU”. THEN PRESS “SET” TILL IT BEEPS. SCROLL TO ADVANCED MENU Press SETTINGS . Press to advance to Main Menu Press to choose menu option. Press MANUAL REGEN enter. Press MANUAL REGEN or until you hear a beep.

  • Page 28: Warranty

    Life Time Warranty on Mineral Tanks and Brine Tanks Evince® will provide a replacement mineral tank or brine tank to any original equipment purchaser in possession of a tank that fails provided that the water conditioner is at all times operated in accordance with specifications and not subject to freezing or vacuum.

This manual is also suitable for:

Insight 150Insight 200
