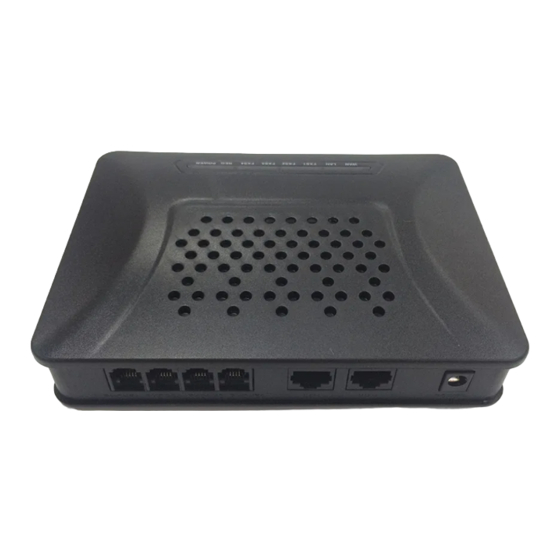

Voice Gateway 4FXS
Telepower Communication Co.,Ltd
Tel: 0757-86299753
website: www.telpouc.com
Email:
telpouc@telpo.com
Fax: 0757-86337898-770
Address: Room 201,Building A5, Hantian technology park, Foshan City, Guangdong, China

User Manual

Latest revision:
Revision No.:
2017/9/10
V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4FXS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Telpo 4FXS

  • Page 1: User Manual

    Voice Gateway 4FXS User Manual Latest revision: 2017/9/10 Revision No.: V1.2 Telepower Communication Co.,Ltd Tel: 0757-86299753 website: www.telpouc.com Email: telpouc@telpo.com Fax: 0757-86337898-770 Address: Room 201,Building A5, Hantian technology park, Foshan City, Guangdong, China...
  • Page 2: Welcome To Use

    Voice Gateway 4FXS User Manual Welcome to Use Introduction Thanks for purchasing our integrated access device (IAD). Make sure you have read this manual before use. Applicable device’s model: Voice Gateway 4FXS Matters related to readers This manual is suitable for Project planner ...
  • Page 3: Operation Safety Rules

    Voice Gateway 4FXS User Manual  Reminding It means the important traits or operation guidance It means it may do harm to people, or cause damage to the  Attention system, or the business data to be disconnected or lost.
  • Page 4 Voice Gateway 4FXS User Manual Thanks for purchasing our product! Please feel free to give us any criticism and suggestion, we will deem them as the best encouragement and support for our work. - 4 -...
  • Page 5: Table Of Contents

    Voice Gateway 4FXS User Manual Contents WELCOME TO USE ..................... 2 INTRODUCTION ....................2 OPERATION SAFETY RULES ................3 CHAPTER I PRODUCT INTRODUCTION ............8 1.1 Product Overview ..........................8 1.2 Product Features ..........................9 1.2.1 Function characteristics ......................9 1.2.2 Voice characteristics ........................10 1.2.3 Network characteristics ......................
  • Page 6 Voice Gateway 4FXS User Manual 3.5 Network Settings ........................... 21 3.6 SIP Setting ............................22 3.7 Port Setting ............................. 22 3.8 Device status ........................... 23 3.9 Device Reboot ..........................24 3.10 Telnet Login ..........................25 3.11 Super Terminal Login........................26 CHAPTER IV DETAILED CONFIGURATION ...........
  • Page 7 Voice Gateway 4FXS User Manual 5.3 System Maitainence ........................51 5.3.1 User Management ........................52 5.3.2 Software Update ......................... 52 5.3.3 Config Backup ..........................53 5.3.4 Default Settings .......................... 54 5.3.5 Device Reboot ..........................54 5.3.6 System Log ........................... 55 CHAPTER VI APPENDIX ..................
  • Page 8: Chapter I Product Introduction

    Voice Gateway 4FXS User Manual Chapter I Product Introduction The chapter focuses on introducing the networking modes and technical specifications of voice gateway. Following are the main contents: Product overview  Product features  Networking modes  Technical specifications ...
  • Page 9: Product Features

    Voice Gateway 4FXS User Manual This voice gateway product is used widely. It can be installed in many places, such as corridor, house, phone bar and so forth. And it is helpful for a family, phone bar or small-sized company in network, telephone and fax, etc.
  • Page 10: Voice Characteristics

    Voice Gateway 4FXS User Manual 1.2.2 Voice characteristics Communication protocol: SIP (RFC3261, 3GPP)  Authentication ways: It supports authentication ways of SIP Digest, HTTP Digest  and IMSAKA. Voice coding: G.711a/u, G.723.1 (5.3kbps/6.3kbps), G.729  Voice quality: voice activity detection (VAD), comfort noise generation (CNG), ...
  • Page 11: Protocol Standards

    Voice Gateway 4FXS User Manual 1.2.4 Protocol standards IEEE 802.3 /802.3u 10 Base T/100Base TX  Main G.711A/U, G.723-r63, G.729 voice codec, RFC3261IAX2  (Inter-Asterisk-eXchange V2) TCP/IP: transmission control protocol/internet protocol.  RTP: real-time transmission protocol   RTCP: real-time transmission control protocol VAD/CNG: voice activity detection/comfort noise generation ...
  • Page 12: Networking Mode

    Voice Gateway 4FXS User Manual Relative humidity: 5~90% RH  Networking Mode The next generation network (NGN) is developing and perfecting based on the soft switch. TP-64S in the access layer is used in extensive fields, including network access, telephone, fax and other demands of families, phone bars or small-sized companies.
  • Page 13: Technical Specifications

    Voice Gateway 4FXS User Manual 2. As a proxy server, it is responsible for dial-up access. 1)Voice gateway WAN port is directly connected with xDSL(Cable) Modem. 2)As a proxy server, TP-64S is responsible for proxy access. Figure 1-2 Responsible for Dial-up Access as A Proxy Server 1.4 Technical Specifications...
  • Page 14: Device View

    Voice Gateway 4FXS User Manual W×H×D Weight 0.8kg Max Power Consumption Power Source DC12V power adaptor 10/100M RJ45 10/100M RJ45 Device 10/100M RJ45 10/100M RJ45 Interface Network management 1 个 RS232(RJ45) interface Voice Port Interface Type 4FXS Work Temperature -10℃~55℃...
  • Page 15: Chapter Ii Product Installation

    Voice Gateway 4FXS User Manual Chapter II Product Installation This chapter focuses on deliberately explaining the matters with respect to installation preparation, fixing and cable connection of voice gateway. It mainly includes: Installation preparation  Device fixing  Cable connection ...
  • Page 16: Device Fixing

    Voice Gateway 4FXS User Manual etc.). AC power socket should be single-phase three-core power socket, and ensure the earth line is reliably grounded. Where installation is executed should be well-ventilated, to help the device to  dissipate heat (the suitable environment is -10℃~55℃).
  • Page 17: Preparation Before Configuration

    Voice Gateway 4FXS User Manual Voice gateway offers users an imaging and simple-operation WEB conversation interface, so users are able to configure all functions of voice gateway just on the common web browser without installing a special software, which is helpful for...
  • Page 18: Cable Connecting

    Voice Gateway 4FXS User Manual 3.2 Cable Connecting 1. Connect the device power cord; 2. Link the upward network cable with IAD’s WAN port; 3. Connect voice gateway’s LAN port with PC, which is used to carry out management; 4. Connect RJ-11 port with user’s telephone.
  • Page 19 Voice Gateway 4FXS User Manual 1. Open network connection, right click “local connection”, click property; 2. Open local connection property, choose “Internet protocol (TCP/IP)”, click property (R); 3. Choose the option of “Use of the following IP address”, modify PC’s IP address according to the practical needs.
  • Page 20: Voice Gateway Login

    Voice Gateway 4FXS User Manual 3.4 Voice Gateway Login Open IE browser and input LAN port’s default IP address (IP 192.169.0.1 or 192.169.0.235) in address column. - 20 -...
  • Page 21: Network Settings

    Voice Gateway 4FXS User Manual admin psw.iad Enter username as and password as (note the capital and small letters), then import security code. It will immediately skip to gateway main interface once input right. 3.5 Network Settings Choose “network settings  WAN port configuration” and choose “static IP”, fill...
  • Page 22: Sip Setting

    Voice Gateway 4FXS User Manual and then click to save. Explanations:  Choosing “DHCP to obtain IP” needs there is a DHCP server in the network;  Choosing “PPPoE dialing” needs to fill in the username and password that broadband supplier provide.
  • Page 23: Device Status

    Voice Gateway 4FXS User Manual Click “port settings  basic settings” that is in the left column, username, password and Auth. Name in the basic settings, and than click to save. Explanations: SIP parameters are conditional upon the soft switch. Usually, username is the Auth.
  • Page 24: Device Reboot

    Voice Gateway 4FXS User Manual Note: If one port shows “unregistered”, please check settings of corresponding port’s parameters, and consult SIP soft switch platform. 3.9 Device Reboot Click “system maitainence Device reboot” that is in the left column. After reboot, use IE browser to log in device once more via LAN IP, check device status, and confirm the operating WAN port information in the status inquiry and confirm registration status in the user port status.
  • Page 25: Telnet Login

    Voice Gateway 4FXS User Manual 3.10 Telnet Login Through Telnet to log the device in the configuration interface. (after the device is energized, LAN port’s default IP is 192.169.0.1 and subnet mask is 255.255.255.0). Carry out inband management to the device via command line configuration.
  • Page 26: Super Terminal Login

    Voice Gateway 4FXS User Manual Input correct username and password, the default username is admin, and default password is psw.iad. 8. Click enter key to enter configuration interface. 3.11 Super Terminal Login Voice gateway can configure the device by CONSOLE port. Connect one end of serial port line to the device’s CONSOLE control port, and another end to any serial port...
  • Page 27 Voice Gateway 4FXS User Manual 2. Import a link name, button enter key or use mouse to click “confirmation” to go to the next. Then, a “connection to” dialog box will appear. In “use at the time of connection” drop-down menu, make sure the chosen port must be consistent with serial port of PC machine linked with device, as shown in the following image.
  • Page 28 Voice Gateway 4FXS User Manual 3. Press enter key or click “confirmation” button to go to the next, and then set the port property. - 28 -...
  • Page 29 Voice Gateway 4FXS User Manual Perform settings as follows for port parameters: Bits for second: 9600  Data bits: 8   Odd-even check: No Stop bit: 1  Data flow control: No  Press enter key or use mouse to click “confirmation”.
  • Page 30: Chapter Iv Detailed Configuration

    Voice Gateway 4FXS User Manual Chapter IV Detailed Configuration This chapter has a detailed introduction to all configurations on IAD’s WEB web. It mainly includes: System information  Ports status  WAN status  telereport  4.1 Device Status Here you are able to inquire device’s every status, including device model, operation time, software and hardware versions, WAN’s status information, LAN port...
  • Page 31: Ports Status

    Voice Gateway 4FXS User Manual 4.1.2 Ports Status Click “Device status”, then click “Ports status”, the following information will appear in the system. Explanations: It is essential to review the port’s corresponding number and registered status of SIP business. The current statuses include idleness, waiting for dialing, ringback tone, conversation, busy tone and ringing.
  • Page 32: Wan Status

    Voice Gateway 4FXS User Manual 4.1.3 WAN Status - 32 -...
  • Page 33: Call Statistics

    Voice Gateway 4FXS User Manual 4.1.4 Call Statistics Explanations: Traffic statistics cover the real-time state of current activated port, conversation time and other information. 4.2Network Settings Network settings include: WAN Settings: It refers to the upward access network port; LAN Settings: It refers to the lower access network port including DHCP configuration;...
  • Page 34: Wan Settings

    Voice Gateway 4FXS User Manual VLAN Settings 4.2.1 WAN Settings After entering WEB interface, choose “network settings >> WAN settings”. This device can be get access to via three network access methods. Explanations: 1. Choose IP type  Use DHCP to acquire IP ...
  • Page 35: Lan Settings

    Voice Gateway 4FXS User Manual 3. DNS settings DNS service, Use start, choice of DNS type, DNS refresh interval (usually it defaults 5 minutes), and prior DNS 1and standby DNS 2. 4. SNTP settings coincide with network time protocol, and automatically synchronize with the device time.
  • Page 36: Qos Settings

    Voice Gateway 4FXS User Manual Explanations:  In this device there is a DHCP server, which is defaulted not to start using.  IP pool start/ IP end address cessation: It refers to DHCP server automatically allocates IP’s start/ IP end addresses cessation. To full extent it could have 254 addresses.
  • Page 37 Voice Gateway 4FXS User Manual three-layer data frames, to ensure conversation quality of IP voice. Explanations:  Layer2 settings: VLAN ID is the tag based on 802.1Q.  ID value ranges from 1~4096.  VLAN prior level is 802.1P. It ranges from 0~7.
  • Page 38: Natcfg

    Voice Gateway 4FXS User Manual 4.2.4 NatCfg This device support NAT function, can visit network via LAN. 4.3 SIP Settings SIP parameters are set pursuant to soft switch. The service provider usually has set the server’s parameters beforehand. In case you need to set them by yourself, please inquire the address, account and password from the facilitator to register the server.
  • Page 39: Basic Settings

    Voice Gateway 4FXS User Manual 4.3.1 Basic Settings  SRV mode: It needs opening when DNS server adopts SRV-type DNS analysis;  SRV domain: When it is the SRV-type DNS analysis, SRV domain name needs to be configured. Domain name starts with _sip._udp. For example, if the allocated domain name is sbc.chinamobile.com, the configured one will be...
  • Page 40: Advanced Settings

    Voice Gateway 4FXS User Manual Explanations:  Local domain: It is usually the same as the registered server;  Local SIP port: It is defaulted to be 5060, and this device needs restarting if it has any modification;  Registeration Interval: It refers to the interval that IAD sends online information to SIP server, 60 to 3600 seconds are available, and factory default one is 600 seconds.
  • Page 41 Voice Gateway 4FXS User Manual Explanations: 1、1. NAT: Usually, IAD in intranet is in need of turning on NAT penetration. It can normally communicate with IAD once used in SIP platform;  NAT Stun: It defaults to being open;  NAT keepalive Interval: It is 5 seconds by default;...
  • Page 42: Port Settings

    Voice Gateway 4FXS User Manual fax/modem or x-fax/x-modem.  Phone number format:respectively, normal and escape characters. 4.4 Port Settings Opening “port settings” can execute the basic settings like device’s SIP registered account, registered code and other parameters; Besides, users also can set user group, relay search group, voice fax and advanced business.
  • Page 43: Voice/Fax Settings

    Voice Gateway 4FXS User Manual  Password: IIP account’s password;  Auth. Name: It is usually identical to the username and needful for part of soft switch systems;  Internal No.;  CallerID: It includes types like FSK, DTMF, FSK2 and DTMF2;...
  • Page 44 Voice Gateway 4FXS User Manual  Flash: It is polarity reversal and polarity function, they are not opened by default;  Voice coding: It means voice coding of set port, and supports G711A/U. G723.1. G729;  Packet Interval: It means the size of voice data package of conversation setting.
  • Page 45: Advanced Settings

    Voice Gateway 4FXS User Manual  Low Rate Redundance. 4.4.4 Advanced Settings Explanations:  Select Port: It means to choose serial number of the port needing configuration;  No disturbing: The port will not be called in in enabled mode, so it needs to be started;...
  • Page 46: Call Routing

    Voice Gateway 4FXS User Manual  Caller Display Restrict, which is not enabled by default  Call Hold Mode, includes Standard, SSCC, normal  Phone Mode, includes Normal and Hotline mode.  HotLine Num, Enter the designated hotline number here after setting the usage pattern as the hotline;...
  • Page 47: Global Settings

    Voice Gateway 4FXS User Manual  Quick Dial: Call out when getting # number, and set up according to requirements;  DigitMap: It is configured as “X”, which means it can call out by dialing any number; also can be configured as “XXX”,completely matching with the length of three numbers.
  • Page 48: Dsp Gloable Settings

    Voice Gateway 4FXS User Manual 4.6.1 DSP Gloable Settings Explanations:  RFC2833 Payload: The corresponding value is set as 97 ~ 101 based on demands, and the default is 97;  RTP port scope: It refers to the port that RTP protocol is using at the time of setting conversation.
  • Page 49: Timer Settings

    Voice Gateway 4FXS User Manual mode 3; different modes of ringing voltage are different; defaults to mode 2. 4.6.3 Timer Settings Explanations:  Start Timer: It is 16 seconds by default;  Short Timer: It is 4 seconds by default;...
  • Page 50: Chapter V Firewall Settings

    Voice Gateway 4FXS User Manual group and out of group call.  International Call Setting, which limits international call out. Chapter V Firewall Settings This chapter introduces how to make use of device to perform some advanced settings by WEB web to let users utilize expanded functions. The contents contain in...
  • Page 51: Port Settings

    Voice Gateway 4FXS User Manual 5.1.2 Port Settings Only accept SIP server message: It opens by default and refuses to accept illegal SIP messages from not a SIP server. Turn off this function if you need to make the device FXO port jumper.
  • Page 52: User Management

    Voice Gateway 4FXS User Manual 5.3.1 User Management  Pay attention to capital and small letters when entering password. Account number: admin Password: psw.iad Account number: ac_iad password: psw.access  If you enter the password 5 times error will lead to account is locked,.You need to login with the correct password through the...
  • Page 53: Config Backup

    Voice Gateway 4FXS User Manual Device supports to update the software via http loaded file.  Note: During upgrade, be sure to supply power for device, and forbid to cut off device’s power supply! 5.3.3 Config Backup Note: Prohibit the use of non configuration file, if you do not operate properly, it may cause irreversible damage! Please be careful with!! To back up and restore the gateway configured information.
  • Page 54: Default Settings

    Voice Gateway 4FXS User Manual 5.3.4 Default Settings Explanation: It needs to reserve gateway’s IP address and routing settings except for factory settings. 5.3.5 Device Reboot Explanations: Reboot gateway causes the unsaved parameters to be lost. It takes around 2 minutes.
  • Page 55: System Log

    Voice Gateway 4FXS User Manual 5.3.6 System Log - 55 -...
  • Page 56: Chapter Vi Appendix

    Voice Gateway 4FXS User Manual Chapter VI Appendix Appendix I Basic Configuration Commands This section includes: Command line interface profile: It focuses on introducing how to log onto the command line interface, command line format and characteristics; Compressed chip configuration: It focuses on introducing the configuration commands and methods related to compressed chip;...
  • Page 57: Command Line Prompts

    Voice Gateway 4FXS User Manual users with different authorities, refer to section 1.2.4. Now it is possible for you to operate all introduced commands. See command line login interface as follows: 6.1.2 Command Line Prompts CLI mould’s command line prompts include the following two levels: Root command level: Cursor display with “#”...
  • Page 58: Auxiliary Function

    Voice Gateway 4FXS User Manual take-effect: command to take make parameters effect. Among the above said commands, 1~5 belong to the directory commands, namely, they have sub-commands. Sub-command It refers to the command set after entering a particular setting directory, see below:...
  • Page 59 Voice Gateway 4FXS User Manual Automatic completion functions of command and parameter CLI module has the automatic completion functions of command and partial parameters. If users press “TAB” button when entering command word or parameters, CLI will automatically look for the words matching with the entered ones.
  • Page 60: Detailed Explanations For Voice Command Usage

    Voice Gateway 4FXS User Manual command line logged in by Telnet. These commands also are the ones that were preset via procedure code. 6.2 Detailed Explanations for Voice Command Usage 6.2.1 Compressed Chip Setting Command Set You could go to compressed chip setting contents once entering “codec” command, see below: #codec...
  • Page 61 Voice Gateway 4FXS User Manual Comfort noise setting command codec_ep1> cn {parameter} The parameter is only “enable” or “disable”, “enable” means to turn on the comfort noise function, and “disable” means to turn it off. DTMF mode setting command codec_ep1> dtmf...
  • Page 62 Voice Gateway 4FXS User Manual and “low” means it is 5.3Kbps. Gain setting command codec_ep1> gain { parameter 1} { parameter 2} Therein, parameter 1 is the In-Gain, the value of In-Gain; parameter 2 is Out-Gain, the value of Out-Gain. The value of the both ranges from -31to 31, unit is dB.
  • Page 63 Voice Gateway 4FXS User Manual Flash Max Time [400]: Off Hook Time [40]: On Hook Time [400]: Therein, the value in “[ ]” refers to the value set to the parameter currently, unit is Output attenuation setting command codec_ep1> oa {parameter} The parameter is only “-3.5”, “-7”...
  • Page 64 Voice Gateway 4FXS User Manual At this time it is only allowed to enter numbers from choice [1~6]. Users are able to press “Ctrl+C” or directly button enter key to get out of priority setting status if driven by the intention to give up setting.
  • Page 65 Voice Gateway 4FXS User Manual T38 port setting command codec_ep1> t38_port The command is set by mode of interaction, it does not need any parameter. After carrying out a command, CLI will show the value range of port is 1 ~ 65535, and show the port number of Endpoint 1, input new port number after Endpoint1.
  • Page 66 Voice Gateway 4FXS User Manual Busy Tone Duration (1 ~ 254), [60]: Howler Tone Duration (1 ~ 254), [60]: Digit Max Interval (10 ~ 60), [25]: Ringback Tone Duration (1 ~ 254), [60]: Ring Max Time (1 ~ 254), [60]:...
  • Page 67 Voice Gateway 4FXS User Manual The parameter can be “all” or the command name of each compressed chip setting, for instance: codec_ep1> show dtmf When the parameter is “all”, it will show all parameter values in directory of this layer; when the parameter is the designated command name, it will show the parameter value.
  • Page 68: Network Parameter Setting Command Set

    Voice Gateway 4FXS User Manual the operation. Non-interaction mode codec_ep1> exit discard Give up setting and return back to the root command layer. codec_ep1> exit save-only Only save the setting and do not take effect immediately. codec_ep1> exit effect Save the setting and take effect immediately How to perform “exit”...
  • Page 69 Voice Gateway 4FXS User Manual Once input “network” command in the root command layer, you could go to network parameter setting content, for example, #network If the network setting is based on the unit of connection, every connection can be set different network configurations.
  • Page 70 Voice Gateway 4FXS User Manual button enter key. Setting of connection PPPoE network mode #network/conn connection1> set ip pppoe {parameter1}{parameter2} Parameter 1 is the username of pppoe; and parameter 2 is the password of it. VLAN of connection closure #network/conn connection1> set vlan {parameter} Setting parameter as disable can close VLAN of connection.
  • Page 71: Protocol-Related Parameter Setting Command Set

    Voice Gateway 4FXS User Manual NTP setting command network> ntp The command is set by mode of interaction, it does not need any parameter. After performing the command, CLI will show the on-off state of current NTP client service, and then inquire users whether to open or close it. Users can choose “disable” or...
  • Page 72 Voice Gateway 4FXS User Manual “protocol” command in the root command layer, see below: # protocol Port name setting command protocol_ep1> ep_name {parameter} The parameter is the port name, and the max bit is 255. Command to set heartbeat mode and interval protocol_ep1> heartbeat The command is set by mode of interaction, it has no need of any parameter.
  • Page 73 Voice Gateway 4FXS User Manual 或 protocol_ep1> mgc3 {parameter1} [parameter2] Its usage is the same as the “mg” command. Command of H.248 permission mode setting protocol_ep1> trans_type {parameter} The parameter is only “tcp” or “udp”. Command for setting H.248 signaling abbrev-mode protocol >...
  • Page 74 Voice Gateway 4FXS User Manual The parameter is the time value of resent command, and unit is second. MGC platform setting command of H.248 Interaction setting mode protocol_ep1> mgcmode After only entering “mgcmode” command, the command will inquire users about the MGC platform that will be set.
  • Page 75: System Parameter Settings And System Tool Command Set

    Voice Gateway 4FXS User Manual The parameter is only “all”, auth“, “ep”, heartbeat”, mg”, mgc” or “type”. If the configured parameter value is not the same as the valued being used, CLI will display the being used value concurrently, and before them there is “*”, for instance: system>...
  • Page 76 Voice Gateway 4FXS User Manual business but unable to configure voice business; and user from Admin group is administrator, possessing all rights. The following command is for user from Admin group, and they are invisible for users from other groups after login.
  • Page 77 Voice Gateway 4FXS User Manual private protocol module, or the “start” when the users begin to enter the commission status. Parameter 2 refers to commission level. Normally, display of more information means the level is more lower. No any information will be displayed at level 0.
  • Page 78 Voice Gateway 4FXS User Manual configuration function. For example: eth0 Link encap:Ethernet HWaddr 00:1D:2B:02:AB:0C inet6 addr: fe80::21d:2bff:fe02:ab0c/64 Scope:Link UP BROADCAST RUNNING MTU:1500 Metric:1 RX packets:736646 errors:0 dropped:0 overruns:0 frame:0 TX packets:471395 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RXbytes:63351556(60.4 MiB) TXbytes:31267836...
  • Page 79 Voice Gateway 4FXS User Manual it is at least 1, but is not allowed to exceed the practical endpoint number. Memory status display command system> mem This command does not need any parameter. It is used to display the current memory status of the system.
  • Page 80 Voice Gateway 4FXS User Manual 19589 pts/2 00:00:00 cli 19967 pts/2 00:00:00 ps Manual-registration endpoint command system> regep This command is adopted to manually open the endpoint of the forbidden NGN business, and then the endpoint will be used to register at MGC once more. The usage of the command is similar with 2.4.4.
  • Page 81 Voice Gateway 4FXS User Manual values in the Flash or memory as the current configured values. For example: system> load pf2 Testing command system> test {parameter} The parameter only can be ring, connect, playtone {parameter}, loop or gr909{ parameter }. Therein, the parameter of playtone only can be Silence, dial, ringback, busy, callwaiting or howler;...
  • Page 82: Cli Cancellation Command

    Voice Gateway 4FXS User Manual Exit command system.> exit [parameter] Help command system.> help [parameter] 6.2.5 CLI Cancellation Command #logout The command has no need of any parameter, and it is used to cancel CLI. 6.2.6 System Restart Command # reboot The command has no need of any parameter, and it is used to restart the target board.
  • Page 83: Parameter Effect-Taking Command

    Voice Gateway 4FXS User Manual #show private ( "*" means the Running Config Value) Private IP: 10.25.101.1 OLT: ONU: Current status: CONFIGING If the parameter is “epsatus”, the system will remind to input port number after the command is performed. Once entered, the state of the port number, including actived state, registered MGC state, hookswitch state, linking state and signal state, etc., will...
  • Page 84 Voice Gateway 4FXS User Manual off snmp function. Example:#manage/snmp> switch on Command to add community #manage/snmp>community set { parameter1 parameter2} { parameter3} The command with two parameters is used to add community. Parameter 1 refers to the name of the community being going to be added, and parameter 2 refers to the rights of community, the right only can be “ro”...
  • Page 85 Voice Gateway 4FXS User Manual This command is to set the proxy port. Its defaulted number is “162”. Parameter is the number of the proxy port planned to be set. Example:#manage/snmp> proxy port 161 Command to enable or disable trap #manage/snmp>...
