Rotolight AEOS User Manual page 3

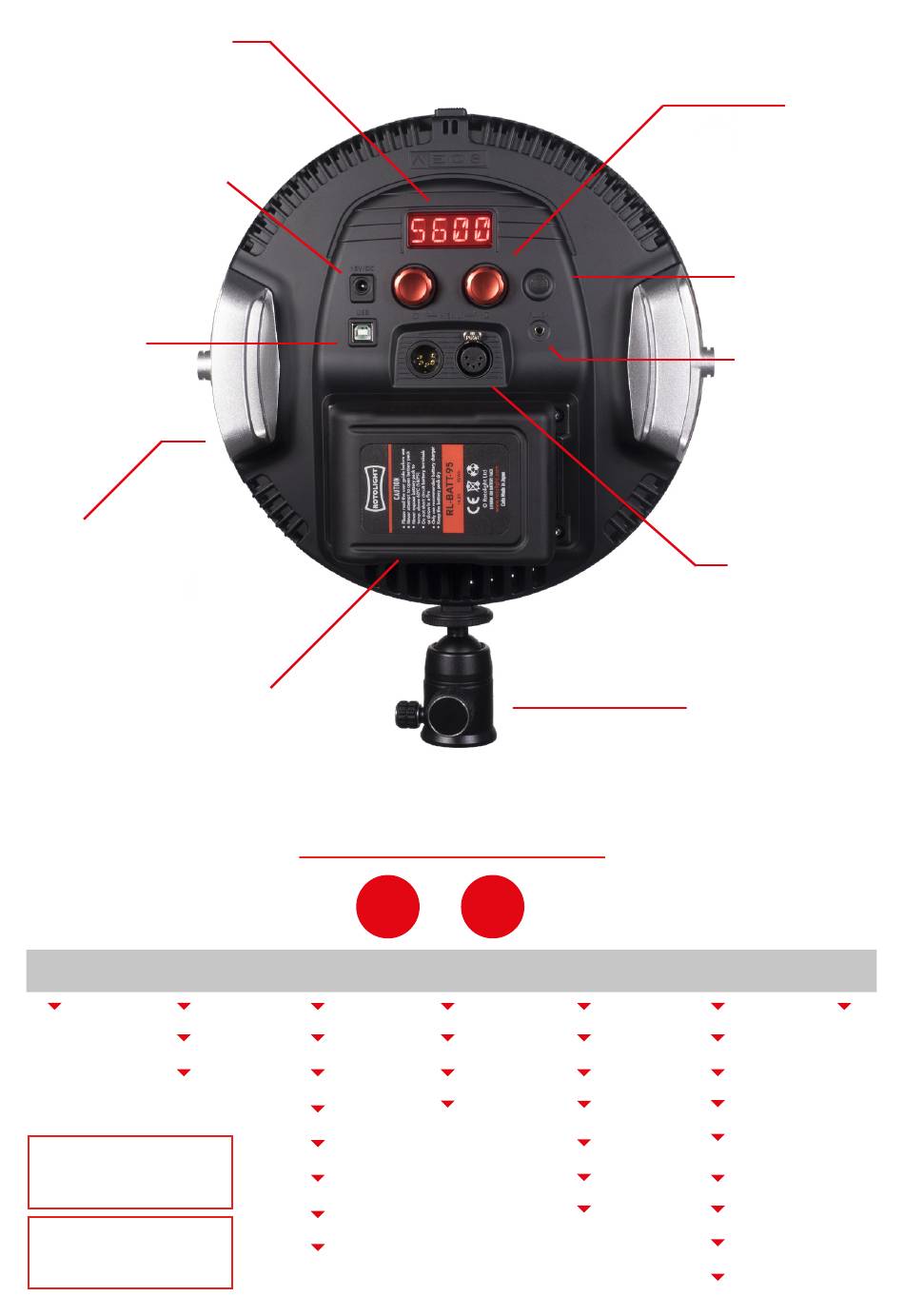

DISPLAY
DISPLAYS MENU ITEM OR
SELECTED ITEM
DC INPUT SOCKET
15V 60W DC - ONLY USE
PROVIDED PSU OR
ROTOLIGHT ADAPTERS
USB PORT
FOR FUTURE
FIRMWARE
UPDATES
ALUMINIUM HANDLES
INTEGRATED HANDLES FOR HANDHELD
SHOOTING AND PORTABILITY
V-LOCK BATTERY PLATE
CONNECT ROTOLIGHT V-LOCK
BATTERY OR GOLD MOUNT MODEL USING
QR-A200 ADAPTER PLATE
* BATTERY NOT INCLUDED
FLSH FADE
DN
UP
To enter menu click
both red knobs
To exit menu click
both red knobs
OPERATION FLOWCHART
BRI
MENU
SFX FDIM
ISO
STRB
EXP
LTNG
FEET
THRB
CYCL
FIRE
PLCE
TV
PROFESSIONAL ALUMINIUM BALL HEAD WITH
360º SWIVEL WITH 1/4 - 20 & 3/8 MOUNTS
COL
CTRL
ADDR
LOCK
MODE
FREQ
SKYP
GRP
KNOBS
LEFT KNOB = BRI
RIGHT KNOB = COL (KELVIN)
CLICK BOTH KNOBS TO ENTER
/ EXIT MENU MODE
POWER
SWITCH ON/OFF
FLASH SYNC
3.5MM MONO JACK
SOCKET TO CONNECT
THIRD PARTY FLASH
TRIGGER. USE HSS
TRIGGER FOR BEST
RESULTS (E.G. Rotolight
Elinchrom HSS Transmitter)
DMX IN/THRU
CONNECT TO THIRD
PARTY DMX
DEVICES OR
LIGHTING CONSOLES
PRO BALL HEAD
TECH DEMO
VOLT
CAL
TEMP
SRNO
VERS
DISP
SCRL
FINE
03
