Rotolight RL48-B Quick Start Manual

Before

Mounting the Rotolight stand to twin accessory bar

Attach accessory bar to the Rotopod using the centre hole and twist to secure.
Mount the RL48 light (with attached Rotolight stand as above) to either side of the twin accessory bar
and twist the bottom screw to tighten whilst holding the light
Secure your phone to the smartphone clip, and mount to the accessory bar as above.
Speci cations:
Model: Rotolight RL48-B
Size:
130OD/38ID(mm)
Weight: 6oz/170grams
Power: 3 x AA Batteries
Battery Life:
Up to 4 Hours (Li-Ion)
Lux (at 1 meter): 242 Lux (1000 Lumens)
Rotolight™ is a registered trademark (001740705-0001) of Rotolight Group Ltd. Rotolight RL48-B (001740705) and Rotolight Stand
(001740713) are registered designs. All rights reserved. © 2020 Rotolight Group Ltd.
Quick Start Guide RL48.indd 1
After
*optional
Colour Temperature: 5600K
(4100K, 3200K with lters)
Included Filters: LED 204, 205, 216, 184
Beam Angle: 140 Degrees
Mounting:
Shotgun mic or RL48 stand,
1/4" thread using RL48 stand
QUICK START GUIDE
Thank you for choosing a Rotolight kit.
Thank you for buying Rotolight's kit for content creators, YouTubers and makeup artists. This quick start
guide will give you all the information you need to get started creating great-looking videos in moments.
You can register and activate your product warranty at www.rotolight.com

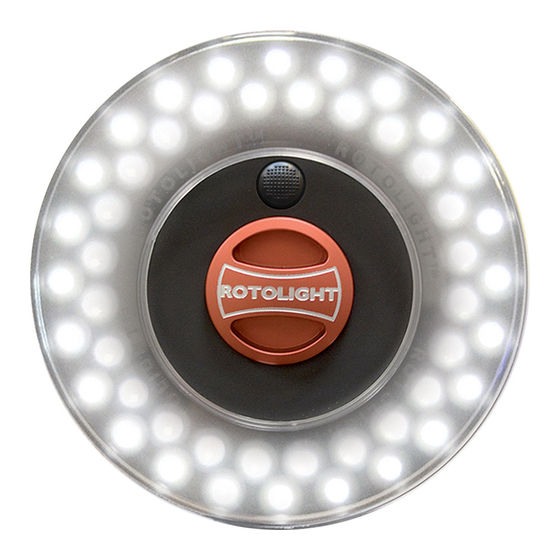

Opening the Rotolight RL48-B
1) To open the Rotolight, hold the RL48 face down. Hold the back of the Rotolight with your right
hand, then rotate the back counter clockwise to open the body of the light.
2) When the Rotolight is open you can change the batteries (3 x AA), read the lter chart, and access the
lters stored in the back of the light.
Batteries :
Use 3 x Rotolight LionHeart Pro (available at rotolight.com), or alternatively Eneloop Pro or lithium batteries
for best performance at up to four hours continuous use.
