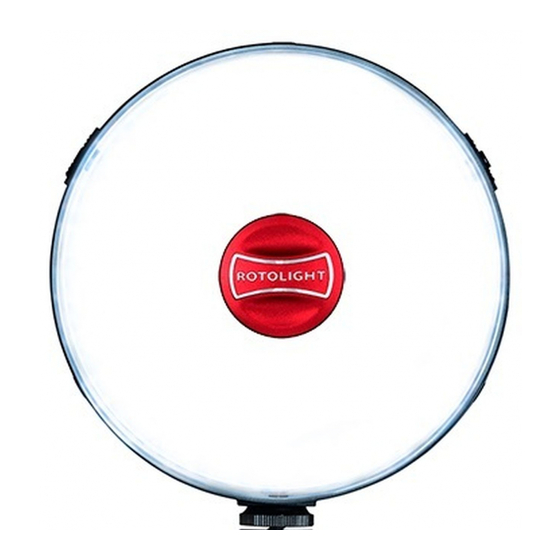

Summary of Contents for Rotolight NEO 3

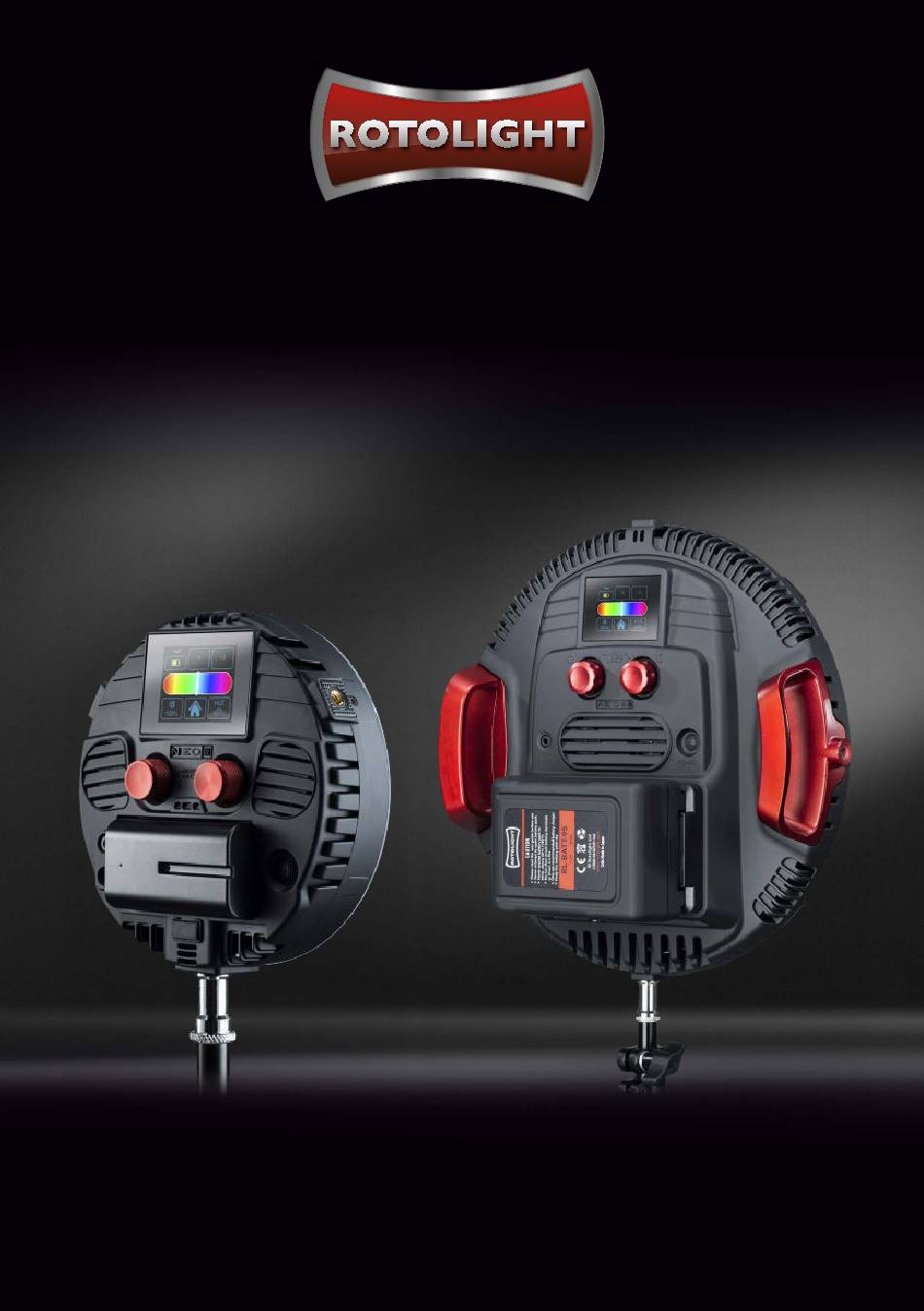

- Page 1 Q U IC K S TA RT G U I DE M O V E . S H O O T. C R E A T E N E O 3 & AE O S 2 STA NDA RD & PRO EDITIONS Version V3.0 January 2023...
- Page 2 1 6 . 7 M C O L O U R S , INTUITIVE 2 5 0 0 F I LT E R S TOUCHSCREEN DISPLAY PRODUCT OVERVIEW ROTOLIGHT APP MASTER OF LIGHT (MOL) - PRESETS JOIN OUR ROTOLIGHT USER GROUP...
- Page 3 T O U C H S C R E E N D I S P L AY W O R L D ’ S B R I G H T E S T 1 6 . 7 M I L L I O N O N - C A M E R A C O L O U R S , 2 5 0 0 G E L S L E D L I G H T...
- Page 4 HOME MENU From the home menu, select from 5 operating modes; CCT (Continuous light, Kelvin 3000- 10,000K), HSI (Hue, Saturation, Intensity) for 16.7M RGB Colours, GELS for 2500 digital filters and sampled ‘source match’ effects, FLASH for RGB HSS flash (flash in any CCT, HSI or filter colour).
- Page 5 © SAM NASH...
-
Page 6: Flash Menu
This would allow you to use a Godox / Profoto transmitter* to trigger an older generation Rotolight when utilising a NEO 3 PRO or AEOS 2 PRO. Alternatively, plug in a third party (e.g. Godox) flash reciever into the 3.5mm flash socket and using a standard edition NEO 3 / AEOS 2 now trigger all your Skyport enabaled Rotolights from a Godox or Profoto transmitter. - Page 7 2021, Denson Baker, (The Colour Room, Ophelia, The Lumineers) and more. The Master of Light preset pack comes included as standard with the PRO models however they can be purchased for standard models via the Rotolight APP. M A S T E R O F L I G H T...
-
Page 8: Filter Menu
SFX MENU Enhance your feature film, music video or short film with Rotolight’s award-winning SFX, which have been designed and developed with Stefan Lange, (James Bond - Skyfall/ No Time to Die, Batman, Tombraider & many, many more). Swipe across the SFX row to reveal available SFX. - Page 9 © SAM NASH...
-
Page 10: System Menu
SYSTEM MENU Adjust universal system parameters and apply factory reset in the SYS menu. Swipe up to reveal system parameters and use the right knob to adjust selected option. A R R O W I N D I C AT E S S Y S T E M T O U C H T O S E T T I N G... - Page 11 APP CONNECTION GUIDE V3.0 In order to connect a fixture to the Rotolight App it is necessary to have firmware version 3.0 or later installed into you light. To verify which firmware is currently installed, go to system page > About OR it is also displayed on power up of the light Current firmware can be found on the Rotolight website.
- Page 12 7. Open up the Rotolight App on you mobile device. If this is the first time you have used the app you will need to complete the sign in process and accept the Terms and Conditions. 8. From within the Rotolight App Select the Red circle with the plus symbol.
- Page 13 If you are experiencing repeated issues with connectivity please try the follows steps 1. Ensure you have the latest Rotolight firmware installed on your light. The app will only work with firmware 3.0 or later. To install the latest firmware go to rotolight.com/ support and download the latest firmware to a USB 2.0 stick, with no other files on it.
- Page 14 “wifi ready” will be displayed. Wifi is now enabled. You can now pair your rotolight with the app by tapping the app control box to display a QR code, then open the rotolight app, press the “+” button to add a fixture and place the QR code label in the middle of the camera display window, then press join when the dialogue box appears.
- Page 15 LATEST FIRMWARE AND MANUAL For all firmware updates, user manual and other resources, please visit www.rotolight.com/support To apply a firmware update, download the latest firmware to a USB 2.0 type A stick, (not USB 3.0) and ensure it is formatted to Fat 32, (not Fat 32 extended). Ensure any connected battery has a reasonable charge level prior to starting the update process.
- Page 16 NEO battery from the USB port. Doing so presents an immediate risk of fire or explosion. 2. Rotolight is a high performance hybrid flash and continuous light and places a unique demand on batteries in flash mode to achieve a zero recycle time flash.
