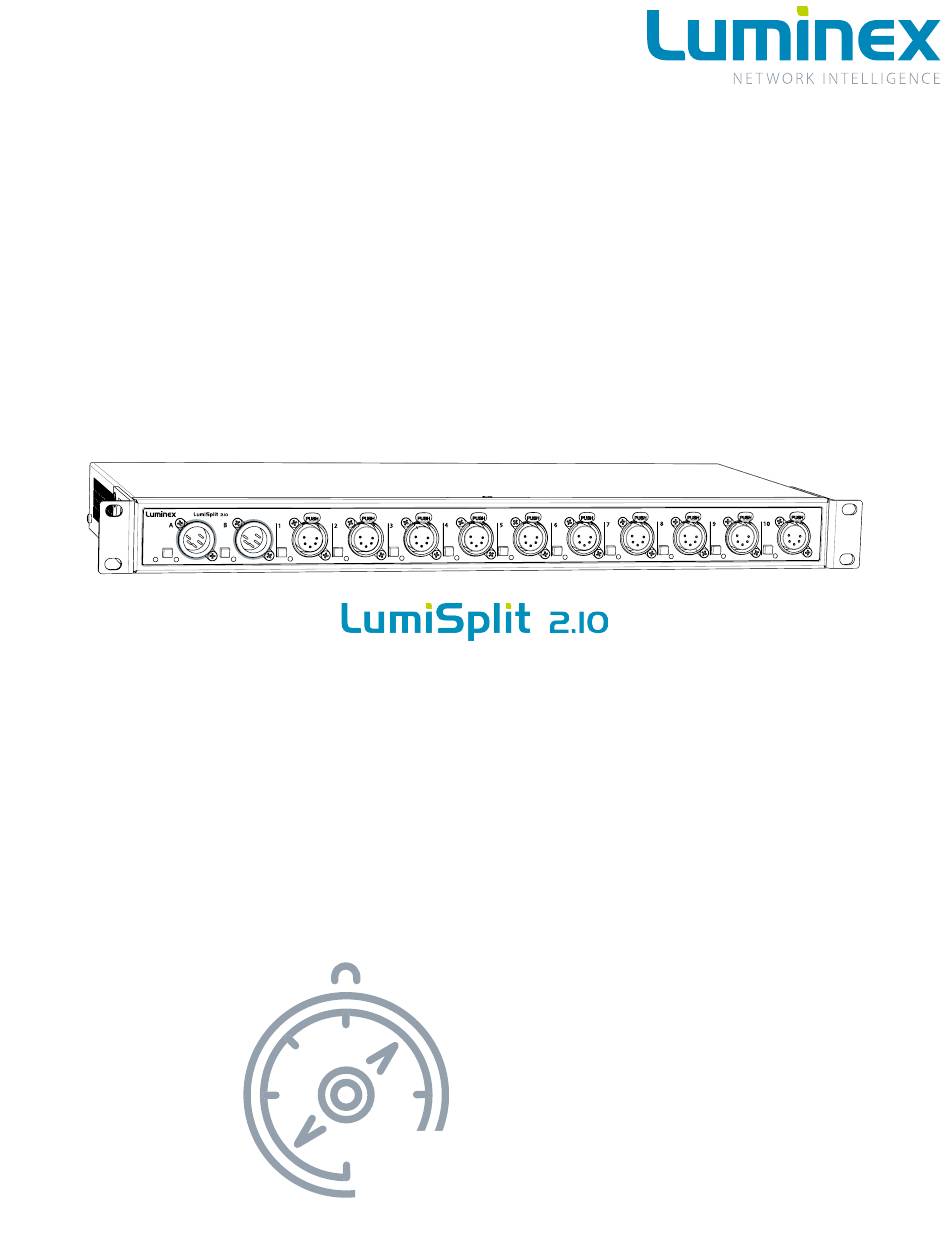

- Page 1 USER MANUAL All LumiSplit features explained Firmware v5 | Manual rev6 | Language: ENG...
-
Page 3: Power Up The Device
Congratulations, you managed to buy some of the latest high-end technologies in the entertainment industry. Now let’s rock and roll! Read this user manual carefully to get familiar with the all features of the LumiSplit 2.10. 1. POWER UP THE DEVICE... - Page 4 2. FEATURE AND MODE SELECTION THROUGH FRONT PANEL After the device has been powered-up correctly, you can start changing the different operating modes and port features through the front panel or over RDM. To change the settings by using the front panel, follow these instructions. Through the front panel, you can connect 2 inputs (A and B) and 10 outputs (1 to 10).
- Page 5 2.3 MODE SELECTION The LumiSplit 2.10 has different operating modes. To change the mode, hold both input buttons (A and B) together for 2 seconds. The LEDs from both ports will start blinking blue. Then release the two buttons and press the desired output button to select the mode.
- Page 6 2.4 MODES IN DETAIL Splitter mode (1) The LumiSplit now runs in A/B splitter mode. This is the default mode. Backup mode (2) Zone A input becomes the main input, Zone B the backup input. In the unlickely event of DMX loss on Zone A, the splitter will switch automatically to zone B.
-
Page 7: Front Panel Lock
User preset 1 (9) and 2 (10) Two user profiles can be stored in outlet 9&10. This allows you to easily recall your favourite configuration, or al- ternate between two configurations for different applications. To record a profile, and once in the selection mode, simply hold one of the two buttons to store your configuration. - Page 8 Not only can the LumiSplit provide you with some great features directly from its front panel, the unit can also be remotely configured and monitored, all through RDM connectivity. Once LumiNet Monitor is connected to a Luminex Ethernet-DMX converter with RDM enabled, the software will provide you with a com- prehensive set of tools to monitor and configure your LumiSplit 2.10.
-
Page 9: Lock/Unlock The Front Panel
3.3 LOCK/UNLOCK THE FRONT PANEL To lock the device, simply right click on one of the responders, and select Lock state>Front Panel Locked. To unlock the device, repeat the same operation, and select Lock state>unlocked. Lock/unlock is available from any RDM compliant controller. 3.4 DARK MODE The LumiSplit offers you to lower down the brightness of the LEDs. - Page 10 3.5 MODE SELECTION You can remotely select one of the modes the splitter offers. Right click on one of the responders, and select the desired mode. Regeneration mode is available for both responder. You then have to select the right responder (A or B) to assign the regeneration mode to it. From here, you can reload profiles stored in outlet 9 and 10 as well.
- Page 11 In this example, the RDM test device is connected to port 1 of the converter using 2.0.0.12 as an IP address. To see which port of the LumiSplit the device is connected to, right click on one of the responders of the LumiSplit 2.10, and select Control.
- Page 12 Zone assignation In the endpoint view, you can also modify the zone assignment per port (1 or 2). Input A is universe 1, input B is universe 2. To assign an output to one of these zones, simply click on the universe number of the selected output, and change the number, according to your need.
- Page 13 Identify a port If needed you can identify a port. To do so, simply tick the corresponding Identify check box, and the LED of the selected port will blink white. This can come in handy when you need to indicate the port to use. Regeneration When in regeneration mode, click on the timing field of the selected input(s) to assign the desired regenerating timing.
- Page 14 Store preset The LumiSplit 2.10 offers you to remotely store a configuration on outlet 9 and 10. In the Store User Preset field, enter 1 if you wish to record your first preset on outlet 9, enter 2 if you wish to record your second preset on outlet 10. Press the Set button to record your preset.
-
Page 15: Firmware Upgrade
Click on Select file, and select the extracted file (.bin). Click on the Upgrade button, and the upgrade procedure will start. The procedure ends once the progression bar reaches 100%. Luminex Network Intelligence - Slamstraat 13 - 3600 Genk, Belgium - +32 11 812 189 - support@luminex.be...
