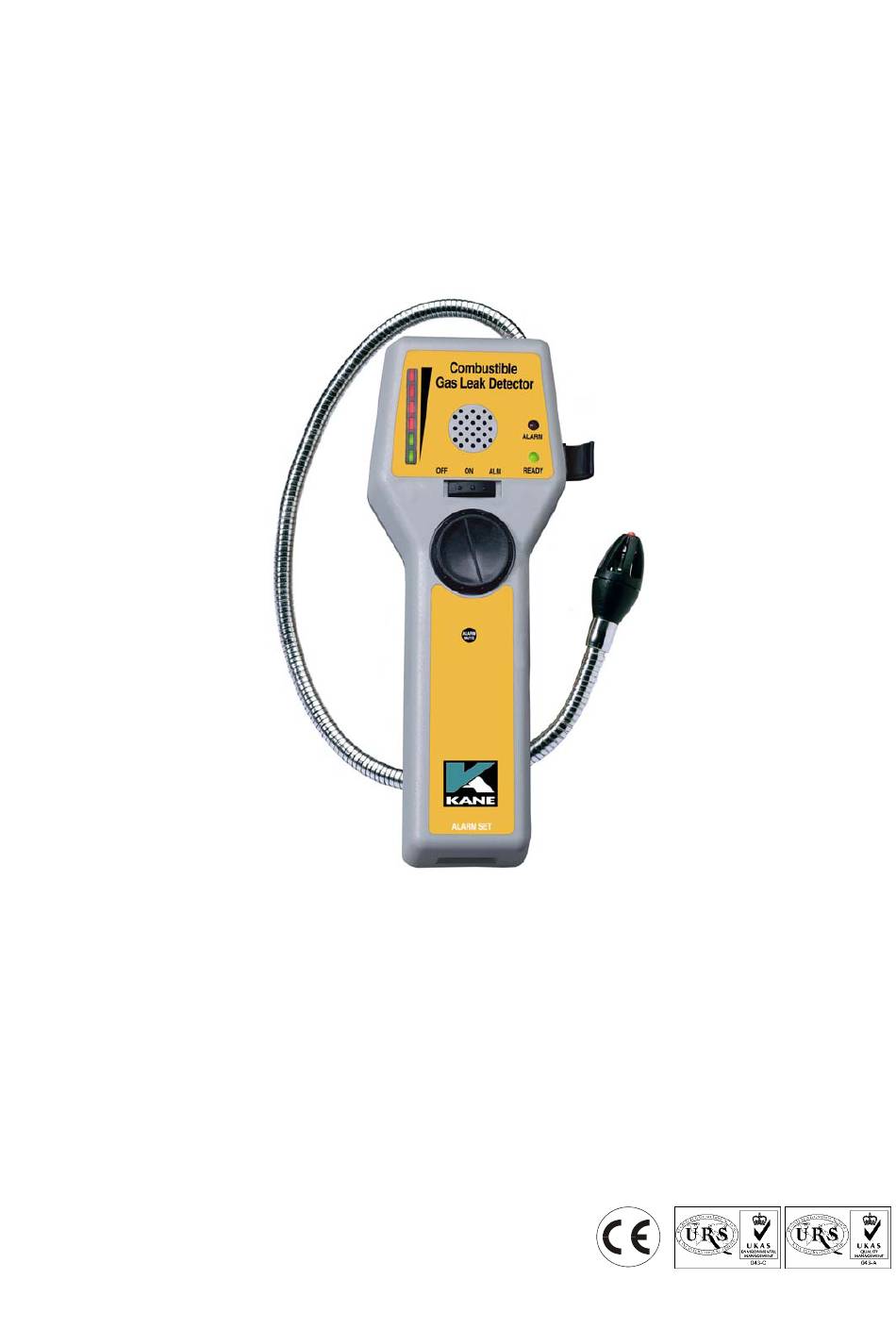

- Page 1 Operator Manual Kane International Ltd Kane House, Swallowfield Welwyn Garden City Hertfordshire, AL7 1JG Tel: +44 (0) 1707 375550 Fax: +44 (0) 1707 393277 E-mail: sales@kane.co.uk www.kane.co.uk Stock No: 17207 February 1999 © Kane International Ltd...
-
Page 2: Table Of Contents
CONTENTS Page No: PRODUCT FEATURES GENERAL DESCRIPTION OPERATING INSTRUCTIONS 6 - 8 - BASIC OPERATION - FINDING A LEAK - ALARM INDICATION - SETTING THE ALARM - HINTS AND TIPS SPECIFICATIONS BATTERIES ELECTROMAGNETIC COMPATIBILITY WARRANTY Page 2... - Page 3 CAUTION The LeakSeeka-1 LS-1 instrument is factory calibrated for methane in air. The alarm will be set off when the gas concentration in the air approaches the “ALARM” set point. The “ALARM” set point is adjustable by the user for any gas concentration within the range of 0% to 40% of the lower explosive limit (LEL).
- Page 4 Leak Seeka ALARM READY MUTE ALARM SET Earphone Jack Sensor Cover Gooseneck Alarm Light Level Indicator Gooseneck Clip Audible Alarm Power On Light (Ready) Off/On/Alarm Switch Battery Compartment Level “Tick” Adjustment Alarm Set Tip Light Page 4...
-
Page 5: General Description
GENERAL DESCRIPTION The LeakSeeka LS-1 is an advanced state-of-the-art leak detector capable of detecting many combustible and toxic gases. A partial list of these gases is: Acetone Ammonia Carbon Monoxide Alcohol Butane Halon Petrol Hydrogen Sulphide Industrial Solvents Lacquer Thinners Propane Refrigerants Natural Gas... -
Page 6: Operating Instructions
If the last red light is illuminated turn the ‘LEVEL ADJUST’ so that the lights start to go out. This resets the LS1 for the higher concentration and allows stronger leaks to be detected. Again move the sensor head until stronger concentrations of gas are found. -
Page 7: Alarm Indication
17. Remove the sensor from the gas for 1 minute the re-insert to verify the adjustment. If the unit cannot be calibrated using this procedure, it should be returned to Kane International or an authorised distributor for repair. Page 7... -
Page 8: Hints And Tips
HINTS AND TIPS 18. The earphone can be plugged into the unit if there is high background noise or the operator does not want to disturb other people. Inserting the earphone disables the speaker. 19. If the lights do not light or go out and the audio does not work, this is an indication that the batteries need replacing. -
Page 9: Specifications
SPECIFICATIONS (NOTE: MAY BE SUBJECT TO CHANGE) Power Supply Four AA-sized Alkaline Batteries Sensitivity <50 ppm methane Sensor Solid-State Level Indicator Six LEDs moving from green at low concentration through yellow to red. Level is adjustable and hence does not give concentration reading. Alarm Visual and audio at approximately 10% of L.E.L. -
Page 10: Batteries
BATTERIES Battery Replacement If the ‘READY’ light fails to light or flashes the batteries need replacing. Remove the battery cover on the back of the instrument by pressing in the catch. Replace the batteries with 4 AA-size alkaline batteries. Note: When replacing batteries observe polarity markings in the battery compartment. -
Page 11: Electromagnetic Compatibility
N.B. Maximum cable lengths must be less than 3 metres. At the time of writing this manual (February 1999) Kane International Ltd are not aware of any field based situation where such interference has occurred and this advice is only given to satisfy the requirements of the Directive. -
Page 12: Warranty
WARRANTY All Kane International instruments include batteries and carry a 12 months warranty, covering any manufacturing defects and component failures. The warranty applies to all Kane International products world-wide. In line with our policy of continuous development we reserve the right to alter any part of our product specification without prior notice. - Page 13 Product Registration Please complete, detach and return to: Kane International Ltd, Kane House, Swallowfield, Welwyn Garden City, Hertfordshire, AL7 1JG Your Details Name: Job Title: Company Name: Company Address 1: Address 2: Town/City: County: Postcode: Country: Phone Number: Fax Number:...
- Page 14 Why did you buy a Kane Product? Dealer Recommendation Other Recommendation Value for Money Our Fixed Price Servicing Programme Kane Previous Owner Not your Decision Other: What brand was your previous analyser? How did you hear about Kane? Magazine Advert...
- Page 15 Page 15...
- Page 16 Thank you for buying this analyser. Before use, please register on our website www.kane.co.uk or complete, detach and return the Product Registration page. Page 16...
