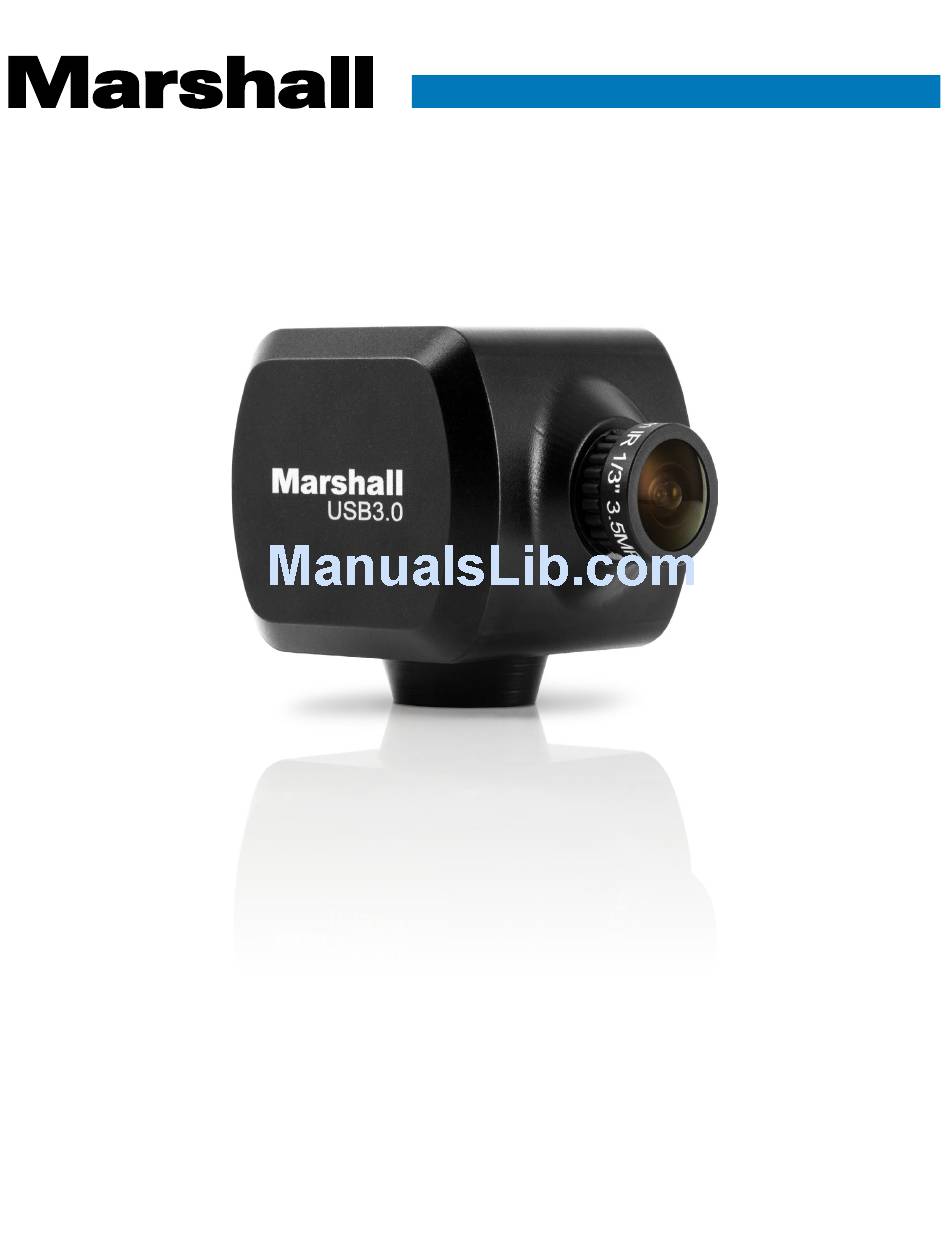

- Page 1 B r o a d c a s t A / V D i v i s i o n CV502-U3 Miniature Full-HD (USB 3.0) Camera User Manual...
-
Page 2: Table Of Contents
CV502-U3 Manual 1. Package Includes: • CV502-U3 USB 3.0 Miniature Camera (with 2.3mm lens) • Locking USB 3.0 Cable (2m length) • CVM-5 Mounting Clip Table of Contents 2. Features • 1/3” 2.1 Megapixel CMOS Progressive Scan Sensor Table of Contents •... -
Page 3: Rear Panel Video/Power Connection
CV502-U3 Manual 4. Rear Panel Video/Power Connection 6. Specifications Image Sensor 1/3” Progressive CMOS (Approx. 2.1 Megapixel) Scanning System 16:9 Progressive Sensor Sync. System Internal Effective Panel 1920 (H) x 1080 (V) Min. Illumination 0.2 Lux (Day) Video USB 3.0 1080 60p / 59.94p / 50p / 30p / 29.97p / 25p... -
Page 4: Camera Connection And Control
5. Click “Webcam Settings” to control video properties. The “Video ProcAmp” control window will display. 1. Install video client software on the computer that you want to use with CV502-U3. 2. Use the included USB 3.0 cable to connect CV502-U3 to the computer. -
Page 5: Safety Instructions
Warranty 8. Safety Instructions Marshall Electronics warranties to the first consumer that this device will, under normal use, Do not use camera if fumes, smoke or a strange odor is emitted from the unit, or if it seems to not be free from defects in workmanship and materials, when received in its original container, for function correctly.
