Summary of Contents for Whale Easi-Slide Series

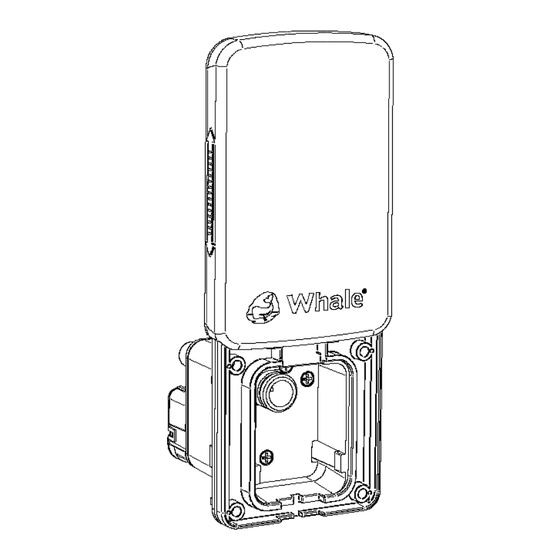

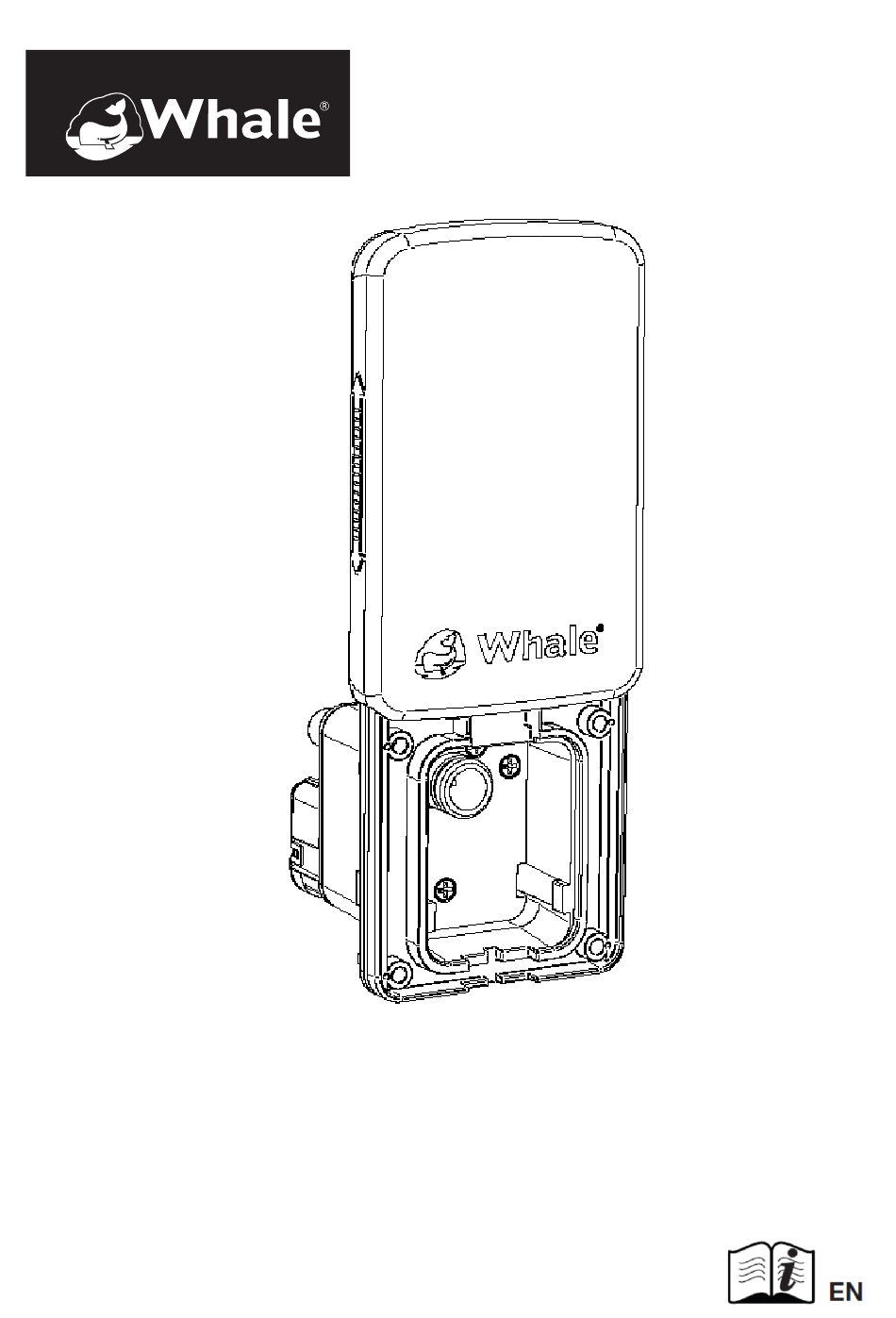

- Page 1 Easi-Slide Exterior Utilities Sockets Water In Socket Installation and Operating Instructions...
-
Page 2: Table Of Contents
• Children must be supervised to ensure that they do not play with the appliance. • Any alteration to the appliance, misuse or use of non-original Whale parts may invalidate the warranty. Non observation of the installation and operating instructions will lead to cancellation of the warranty and exclusion of liability claims. -
Page 3: Water In Socket
2. Water In Socket The Whale Water In Socket is designed for use in recreational vehicles to supply freshwater to the taps and showers. It is the easy way to supply freshwater throughout the vehicle and deliver freshwater to your water heater. This product is designed for use with the Whale Watermaster exterior pump, AquaSmart filter and/or Whale Watermaster mains connector. -
Page 4: Before You Begin
3. Before You Begin • Always disconnect power sources before installing or making connections. • With all applications, it is important that a system of safe working practice is applied to installation, use and maintenance. • Always ensure water system is drained before commencing any work. Helpful Hints •... -
Page 5: Socket Installation
4. Socket Installation... -
Page 8: Fittings Installation
5. Fittings Installation Watermaster Pressure Switched Socket - Watermaster IC Socket Wiring Connections Socket Positive Wire Negative Wire ES6001 Tab 2 Tab 1 ES6000 Tab 3 Tab 1 6. Operation... -
Page 9: Maintenance / Repairs
7. Maintenance / Repairs For installation or serviceable parts advice, please contact Whale® Customer Support. Whale recommends that you keep the o-rings lubricated for easy and secure connection /removal of the plug to socket. Use a water-based lubricant such as silicone grease. -
Page 10: Eu Declaration Of Conformity
Location of technical file: Munster Simms Engineering Ltd, 2 Enterprise Road, Belfast, BT19 7TA Year mark first applied: 2015 Limitations of use: For use with Whale original 12V submersible pumps, filters and mains water hook up only. Name and position of person binding the manufacturer or authorized representative:... - Page 11 This Whale product is covered by a 1 year warranty. Please see the enclosed document for details of our Statement of Limited Warranty. © Copyright Whale 2018 - All rights reserved. Reproduction in whole or in part without permission is prohibited. WHALE®, is a registered trademark of Munster Simms Engineering Limited, Bangor, Northern Ireland trading as Whale.
- Page 12 Notes:...
- Page 13 Notes:...
- Page 14 Notes:...
-
Page 15: Socket Mounting Profile
10. Water In Socket Mounting Profile Please note that this diagram is for guidance purposes only and is NOT to scale. If you require specific advice about your installation please contact Whale Support. - Page 16 Munster Simms Engineering Ltd. 2 Enterprise Road, Bangor, N Ireland, BT19 7TA Tel: +44 (0)28 9127 0531 +44 (0)845 217 2933 info@whalepumps.com whalepumps.com Fa cebook “f” Logo CMYK / .e ps Fa cebook “f” Logo CMYK / .e ps hm_ap_181.042_v3_1018...
