Summary of Contents for Adixen ATP 2300 M

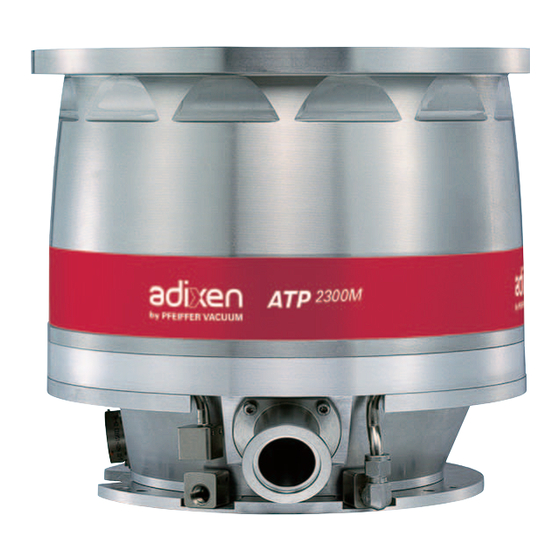

- Page 1 ATP 2300 M Turbopumps Operating Instructions Operating Instructions...
- Page 2 This operating instruction manual includes only the instructions to connect the pump to the equipment. Refer to the controller operating instructions to power and use the pump (chapter B, C and D). adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 3 All rights reserved, including copying this document in whole or any part without prior written authorization from adixen Vacuum Products. Specifications and information are subject to change without notice by adixen Vacuum Products. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
-
Page 4: General Contents
It may also be used to alert against unsafe practices. Indicates a potentially hazardous situation which, if not avoided, could result in death or severe injury. adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 5 Purge Purge port Exhaust of the pump Pump exhaust Water Water cooling circuit connection Water max Pr.7 bar/101 psi Max. Cooling water pressure Direction of rotation of the pump adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 6 Technical characteristics of the pump A 510 The accessories of the pump - Pump accessories A 515 Accessory dimensions - Purge valve (50 sccm) dimensions - Air inlet valve dimensions - Water valve dimensions adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 7 Controllers The ATP 2300 M works with the OBC controller or with the MAGPOWER controller. (refer to corresponding operating instructions). adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 8 Electronics Bearing Position Stator sensor Position of Reference Power Correction Rotor amplifiers Electro- magnet Position return adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 9 It ensures the lowest possible levels of noise and vibration. Stator geometric axis Rotor geometric axis Rotor inertia axis adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 10 Since the ATPM compression ratio is set by the design, the pumping performances depend on the primary pump and on the installation. INLET PRESSURE ATMOSPHERIC PRESSURE Chamber to be pumped Primary pumping Secondary pumping High vacuum Rough vacuum adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 11 A distinction is made between the following speeds: - reduced speed (STANDBY speed) which can be set between the low speed value and the nominal speed. - nominal speed : maximum speed preselected at factory. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 12 With a low exhaust pressure, depends on external conditions (water temperature, water flow, ambient temperature). (not applicable for air cooling version). With ratio inlet pressure/exhaust pressure >100, max. throughput reduced. ISO/F flange, better with CFF flange. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 13 Not all leakage current is necessary evacuated through the earth wire; it depends on the pump earth connect regarding the equipment to which the pump is connected. Maximum relative humidity 80 % for temperatures up to 31 °C, decreasing linearly to 50 % relative humidity at 40 °C. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 14 12.46 13.79 10.87 11.22 10.23 0.43 7.03 inch 15° 12,00 314,30 317,90 339,20 316,60 350,20 276,20 187,60 DN 200 ISO-K inch 0.47 12.37 12.52 13.35 12.46 13.79 10.87 9.45 7.39 adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 15 12 stub M10x35 * ATH 2303 M ATH 2300 MT 110034 12 CHC M10x30 118690 32 Studs M8x35 ATP 2300 M 110676S 12 CHC M10x35 * * With centering ring adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 16 Water valve Water valve 108668 Air inlet valve cables Dimensions and purge valve cables A462403-010 (for pumps controlled by 3.5 m A462403-035 Magpower) A462403-050 10 m A462403-100 20 m A462403-200 adixen Vacuum Products - Operating Instructions - ATP 2300 M...
-
Page 17: Accessory Dimensions
Connector for coil Pump connection (possible to rotate) dimensions mm (inch) 1/8NPT female connector (air inlet) DN 40 ISO KF 82 (3.23) 65,5 (2.58) 18,5 (0.73) 1/8 NPT female connector Dust filter adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 18 A 515 Accessory dimensions Water valve (0.59) Cable water valve dimensions mm (inch) Inlet and outlet (0,59) 1/8 NPT female Scale 13/20 38,7 (1.52) 47,7 (1.88) adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 19 - Standard assembly - Assembly with a water valve B 401 Typical electrical wiring diagram The electrical connections of the pump on the controller are showed on the contoller operating manual. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 20 In all cases, we recommend keeping the packaging (reusable materials) for further transport of the equipment or for prolonged storage. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
-
Page 21: Installation
Make sure all parts and chambers connected to the inlet, exhaust and purge of the maglev pump can withstand a negative pressure of 100 kPa below atmospheric pressure and that they are impervious to damage from vacuum (seals, etc.). adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 22 OSHA requirement 29 CFR.1910.147. If access to the IEC connector is restricted an additional isolation device should be provided, which will be easily accessible by an operator. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 23 Specific operating conditions may exist that require extra caution from users due to the high temperatures generated (outer surfaces > 70 °C): Wear protective gloves and leave the pump to cool before working on the product. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 24 Controller can be deteriorated when any objects are introduced or any liquids penetrate into the unit. Make sure no objects enter through the ventilation holes. Keep the unit away from the liquids. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
-
Page 25: Other Labels
CHEMICALS LOCATED WHITHIN THE ENCLOSURE Explosure may result in severe injury preventive maintenance operation can only be performed by or death. Preventive maintenance must be done trained personnel. by trained personnel only. adixen Vacuum Products - Operating Instructions - ATP 2300 M... -
Page 26: Pump Handling
Don’t store the pump more than 6 months in a clean and dry environment. Never store a pump which has been used on corrosive process. Return it to a repair service center ( E100) adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 27 ASA, ISO, VG or CF-F blanking flange (depends on the model). Exhaust Blanked with a DN 40 ISO-KF blanking plates. Connection for air inlet Blanked with a DN 16 ISO-KF blanking plates. valve and nitrogen device adixen Vacuum Products - Operating Instructions - ATP 2300 M...
-
Page 28: Pump Connections To An Installation
- connect the pump to the customer’s handling device using the threaded holes located at the rear of the pump (refer to chapter A400 of the operating manual). The pump can operate in any position adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 29 The manufacturer declines any responsibility if the pump installation is not designed in accordance with these installation specifications. Installations specifications Chamber Equipment ATPM ATPM Frame Connection instructions Respect the item 1, 2 and 3 pump connection instructions. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 30 Pump Rotor Loads : Pump fixed to Bending system : valve moment (b) Pendulum plate Front view Axial load (a) Pump Torque (c) Top view adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 31 355000 ** Inlet flange DN250 ISO-F without ring: only use special bolts with washer delivered by the manufacturer for this type of installation (12 bolts and washer kit P/N 110676S). adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 32 (6 x M10 threaded holes are provided on this purpose). In this case, contact the manufacturer for calculation support. Chamber ATPM ATPM Bracket Equipment Frame adixen Vacuum Products - Operating Instructions - ATP 2300 M...
-
Page 33: Vacuum Connections
Use only dry and clean pipe lines, and wear gloves to make the pump connections. After connecting the product to the pumping line, check for leaks along the entire to ensure proper connections. adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 34 Connect this valve V1 nearer to pump exhaust using connecting accessories available in the manufacturer’s catalog. Connect the valve to the primary pump. See typical connection diagram off controller’s manual). B 400 adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 35 Absolute pressure at inlet (kPa) * Different connection accessories can be found in the manufacturer catalog. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
-
Page 36: Air Inlet Valve
Operating instructions of the Filtered air Dust filter controller). or N purge A nitrogen purge can be connected instead of the dust filter (1/8 NPT female). adixen Vacuum Products - Operating Instructions - ATP 2300 M... -
Page 37: Water Cooling Connection
Loctite™ for example), insert the fitting by hand. While holding fitting body steady with a wrench, tighten the fitting with a second wrench. Check that there are no leaks. adixen Vacuum Products - Operating Instructions - ATP 2300 M... -
Page 38: Standard Assembly
- Connect the water valve to the water inlet line using a Water flexible tube following the outlet assembly diagram: - Connect the other nipple to the draining circuit. valve inlet Water inlet fitting adixen Vacuum Products - Operating Instructions - ATP 2300 M... -
Page 39: Typical Connections
The impedance between the pump-body and the earth connection point must be < 0.1 Ohm at 25A. adixen Vacuum Products - Operating Instructions - ATP 2300 M... -
Page 40: Operation
Operation ATP 2300 M Operating instructions Detailed contents C 100 Safety instructions for product use Refer to Magpower or OBC user’s manual to have instructions about pump operations. adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 41 Never unplug the pump by disconnecting the main cable. Only the authorized and trained technicians can perform intervention on the product. Located on the controller, this label indicates that the controller musn’t be disconnected when the pump is running. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 42 Refer to the controller Operating manual to control and monitor the pump chapter C). Refer to the controller Operating manual if a fault appears D 200). adixen Vacuum Products - Operating Instructions - ATP 2300 M...
-
Page 43: Maintenance
Maintenance ATP 2300 M Operating instructions Detailed contents D 100 Safety instructions for product removal D 150 Maintenance frequency adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 44 During pump removal, operator could be in contact with process residues on the inlet and exhaust ports which could cause severe injury or death. Ask your safety department for instructions according to the local regulations. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 45 Products original spare parts, delivered by Pfeiffer Vacuum, containing i.e. all its components and sub-assemblies. This obligation will not cover the shipping cost to an adixen Vacuum Products service center. Whenever your return the product to an repair service center, please make sur ou follow the Service procedure and ill in the declaration of contamination found on our website.
-
Page 46: Maintenance Frequency
The full overhaul must be performed by manufacturer’s trained personnel. Only controller replacement, inlet screen or pump valve replacement are authorized at the customer’s site. Contact nearest service center or the service support at the following e-mail address: support.service@adixen.fr. adixen Vacuum Products - Operating Instructions - ATP 2300 M... -
Page 47: Maintenance Instructions
Detailed contents E 50 Replacement of the water valve coil - Coil dismantling - Coil reassembling E 100 Shipping procedure for contaminated pumps - Connecting ports - Rough decontamination procedure adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 48 Stick the first threads of M5 fitting with Loctite 542* glue. Screw the M5 fitting and tighten it slightly with a 14 mm open end wrench. * Registered trade mark Loctite. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
-
Page 49: Shipping Procedure For Contaminated Pumps
1/4 VCR Centering ring 068193 Seal 076705 with DN 16 seal DN 16 clamping Fitting 1/4 VCR 083333 108500 ring female *** Standard connection accessories available in the product catalog. adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 50 Fit the DN 40 blank flange on the pump exhaust port. flushing 10’ Flush with dry nitrogen* for 10 minutes. Stop the nitrogen flow. * Characteristics of dry nitrogen: B 330. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 51 Blank the inlet port and exhaust port. pump Pressurize the pump with dry nitrogen* to an absolute pressure of 110 kPa using the injector. * Characteristics of dry nitrogen: B 330. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 52 Stick the first threads of M5 fitting with Loctite 542* glue. Screw the M5 fitting and tighten it slightly with a 14 mm open end wrench. * Registered trade mark Loctite. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
-
Page 53: Maintenance Components
ATP 2300 M Operating instructions Detailed contents F 000 Spare parts - Instructions of use - Replacement of parts and use of non genuine parts F 100 First level maintenance parts adixen Vacuum Products - Operating Instructions - ATP 2300 M... - Page 54 The manufacturer urges the user not to use «imitation parts», or the misappropriation and pirating of intellectual property performed by some dishonest operators. The manufacturer supplies maintenance components, spare parts or kits to perform the maintenance of its products adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 55 Dust filter 106229 A complete range of connecting accessories is available in the manufacturer’s catalogue (flanges, fittings...). Water valve coil 108667 Coil 24 V DC adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 56 Appendix ATP 2300 M Operating instructions Detailed contents G 200 Service adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 57 Service orders All service orders are carried out exclusively according to our general terms and conditions for the repair and maintenance, available in our website. adixen Vacuum Products - Operating Instructions - ATP 2300 M...
- Page 58 Pfeiffer Vacuum stands for innovative and custom vacuum Pfeiffer Vacuum stands for innovative and custom vacuum Vacuum Solutions Vacuum Solutions from a single Source from a single Source solutions worldwide, technological perfection, competent advice solutions worldwide, technological perfection, competent advice and reliable service.
