Imada ZTS series How To Use Manual

IMADA CO.,LTD..

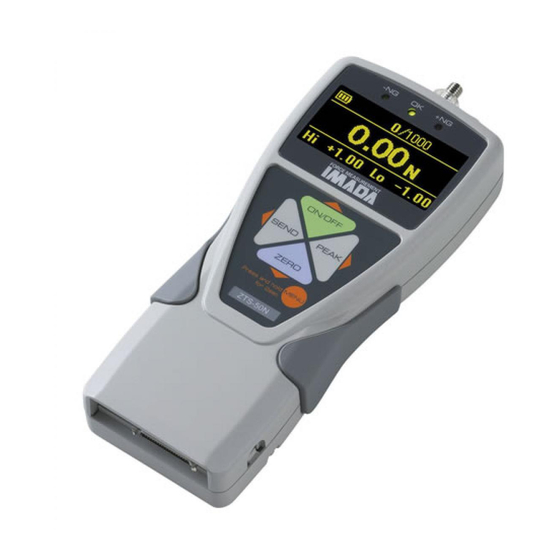

Standard Model Digital Force gauge ZTS series
Feature 1 Clear display / Easy setting.
Feature 2 You can capture peak value precisely due to high sampling.
Feature 3 Easy data management on PC with included software, ZT-Logger.
Feature 4 Various functions to improve usability in different environment.
Included Software ZT-Logger
Feature 1 Clear display / Easy setting
- Clear organic display has excellent
readability and reduces misreading.
- Setting menu with multiple languages helps
easy operation.
*Higher range of 2500N is different in shape

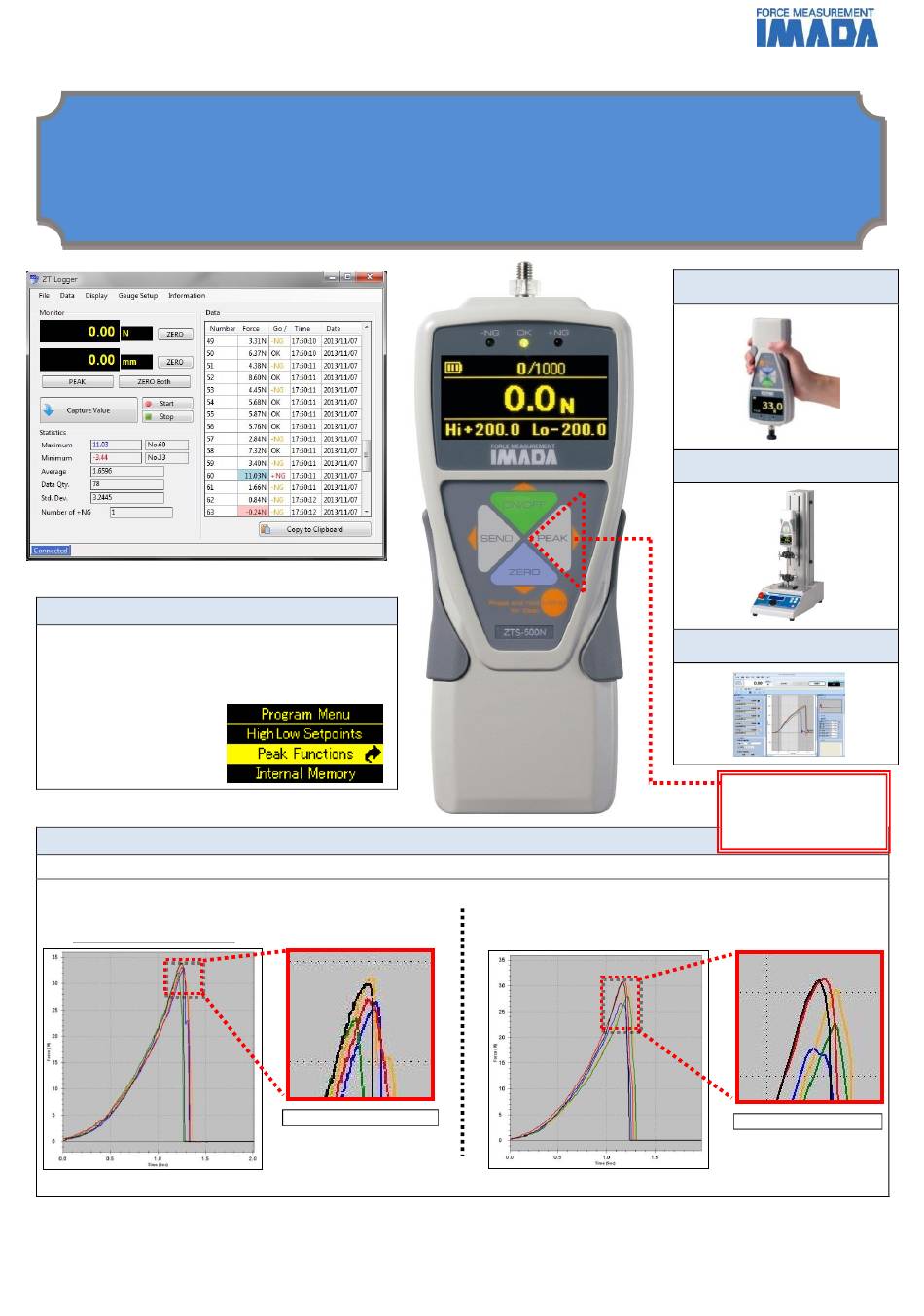

Feature 2 You can capture peak value precisely at high sampling.
It reduces missing load value due to high sampling speed (2000 data / sec.). Peak value can be accurately captured.
Sampling speed: 2000Hz
->High repeatability
Standard Model Digital Force Gauge ZTS series
Breaking tests of the same sample
Data measured at 2000Hz
Ave. of peak：33.2N
Nearly the same value
*Depending on sample or testing conditions, you may not get the same result.
Sampling speed: 100Hz
->Dispersion of the measured data
With optional software, Force Recorder, you can make graphs of force versus time.
For further information, go to "Related products" on page 5

How to use

Simply handheld use

High repeatability
with a test stand
Make graphs to analyze
force transition
Press peak button
once, so that it
holds peak value.
Data measured at 100Hz
Ave. of peak: 29.92N
Values vary. Ave. is lower.
1 / 8
2015/07/28
