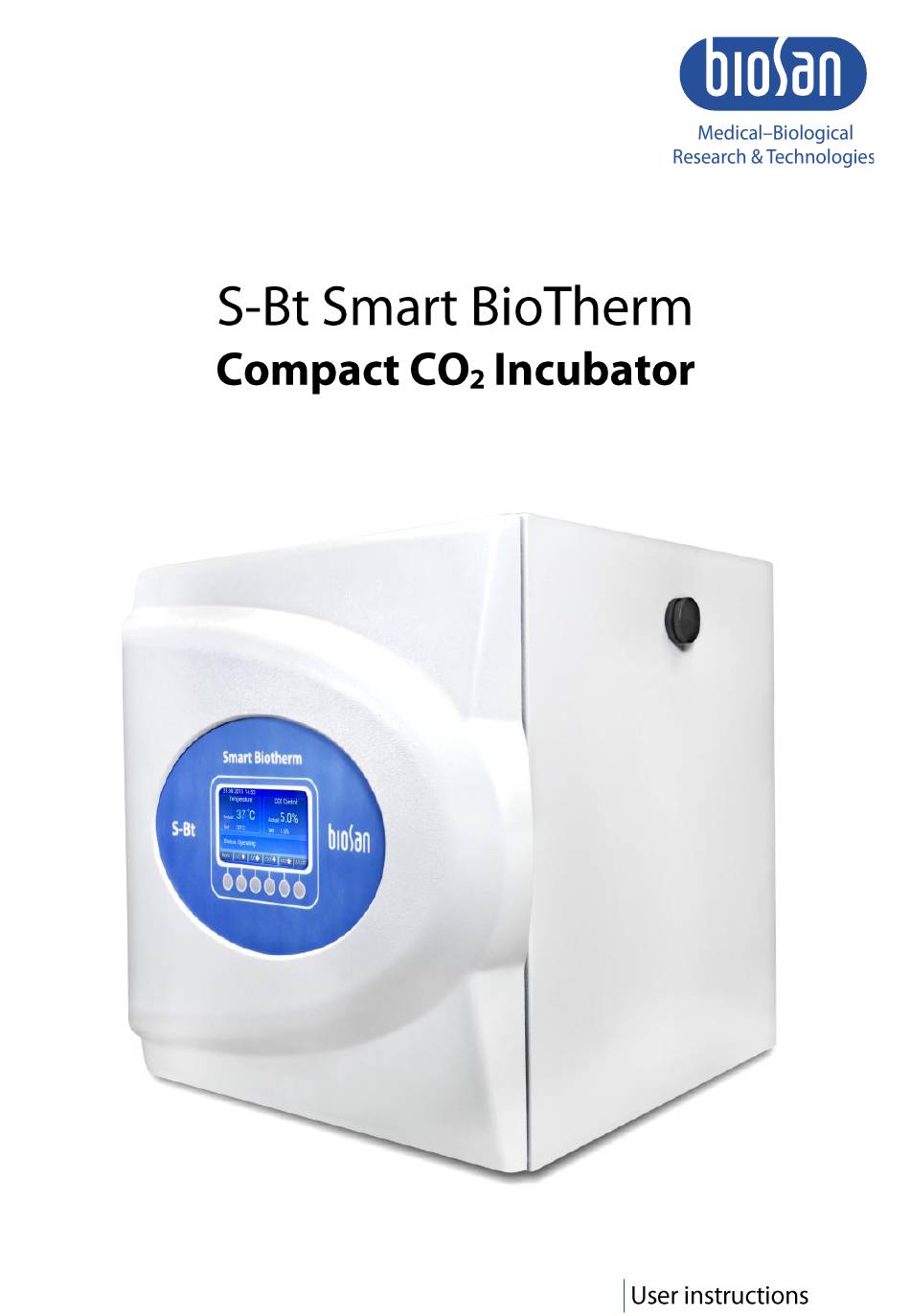

Summary of Contents for Biosan S-Bt Smart Biotherm V.1AW
-
Page 3: Table Of Contents
Contents About this edition of user instructions ............... 4 Safety precautions ....................4 General information ....................6 Getting started ......................7 Operation ......................... 8 Fault diagnostics ....................12 Specifications ......................13 Ordering information ....................14 Care and maintenance ................... 15 Warranty ......................... -
Page 4: About This Edition Of User Instructions
About this edition of user instructions The current edition of the user instructions applies to the following models and ver- sions of Compact CO Incubator: S-Bt Smart Biotherm ..V.1AW, V.1AE Safety precautions Caution! Make sure you have fully read and understood the present Manual before using the equipment. - Page 5 ELECTRICAL SAFETY Connect only to the mains with voltage corresponding to that on the serial number label. Do not plug the unit into an ungrounded power socket, and do not use an ungrounded extension lead. Ensure that the power plug is easily accessible during use. ...
-
Page 6: General Information
General information S-Bt Smart BioTherm is designed for work in the areas of cell biology (operations with animal cell cultures and tissues), molecular biology (DNA/RNA reaction analysis, hy- bridization reactions), biotechnology (synthesis of target proteins and other molecules) and immunology (synthesis of antibodies and other proteins of immune system). Unit provides a six-sided heating: the heating elements are located on the walls and on the door, thus providing excellent uniform temperature distribution, regardless of external factors, such as ambient temperature and positioning of the device. -
Page 7: Getting Started
Getting started 4.1. Unpacking. Remove packing materials carefully and retain them for future shipment or storage of the unit. Examine the unit carefully for any damage incurred during transit. The warranty does not cover in-transit damage. Warranty covers only the units transported in the original package. -
Page 8: Operation
Operation 5.1. Connect the incubator to a grounded mains outlet. Turn the power switch on the rear of the incubator to position I (on). 5.2. After initialization, display (fig. 1) shows: Top line: current date and time, relative humidity inside, UV lamp icon (when the lamp is on);... - Page 9 5.9.1.2 Auto UV Timer. Each time after closing the door, UV lamp automatically switches on. After time set under this menu option has passed or the door was opened, the UV lamp automatically switches off. Note. A turned on UV lamp can rise the temperature above the set point: the longer UV lamp stays on, the faster temperature jumps above the set point.
- Page 10 5.11. Incubator air sampling. Sampling can be performed through the capped opening marked as “air sample”, on the rear access panel. 5.12. To turn off the incubator, set the power switch into position О (off) and detach the mains plug from the mains outlet. 5.13.
- Page 11 Figure 7. Current Errors menu Figure 8. Settings menu Figure 9. Alarm Settings menu Figure 10. Auto Lock Delay menu Figure 11. Active Alarms menu Figure 12. Data Logger Figure 13. Temperature plot...
-
Page 12: Fault Diagnostics
Fault diagnostics 6.1. The incubator is equipped with an alarm and error system. Active alarms and errors are appropriately indicated on the display. Alarms and errors are followed by sound signal that can be turned off by pressing any button. 6.2. -
Page 13: Specifications
80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C. Biosan is committed to a continuous programme of improvement and reserves the right to alter design and specifications of the equipment without additional notice. -
Page 14: Ordering Information
BS-010425-A01 Compact CO Incubator V.1AE 120 V, 50/60 Hz 8.2. To inquire about or order the optional accessories or the replacement parts, contact Biosan or your local Biosan representative. 8.3. Optional accessories: Optional accessories Catalogue number Shelf BS-010425-AK Shelf rack... -
Page 15: Care And Maintenance
Care and maintenance 9.1. If the unit requires maintenance, disconnect the unit from the mains and contact Bio- san or your local Biosan representative. 9.2. All maintenance and repair operations must be performed only by qualified and spe- cially trained personnel. - Page 16 (made from foamed polyethylene) and to ensure complete sealing of the port, the seal should be replaced after 30 days from the first operation. 9.9. Calibration. Recalibrate the unit after the date on calibration certificate. To complete the process, contact Biosan or your local Biosan representative.
-
Page 17: Warranty
10.5. Extended warranty. For S-Bt Smart Biotherm, the Smart class model, extended war- ranty is a paid service. Contact your local Biosan representative or our service de- partment through the Technical support section on our website at the link below. -
Page 18: Notes
11. Notes... -
Page 19: Eu Declaration Of Conformity
Serial number 14 digits styled XXXXXXYYMMZZZZ, where XXXXXX is model code, YY and MM – year and month of production, ZZZZ – unit number. Manufacturer SIA BIOSAN Latvia, LV-1067, Riga, Ratsupites str. 7/2 Applicable Directives EMC Directive 2014/30/EU LVD Directive 2014/35/EU... - Page 20 Biosan SIA Ratsupites 7, build.2, Riga, LV-1067, Latvia Phone: +371 67426137 Fax: +371 67428101 http://www.biosan.lv Edition 1.01 – February of 2019...
