Summary of Contents for Innes SMA300

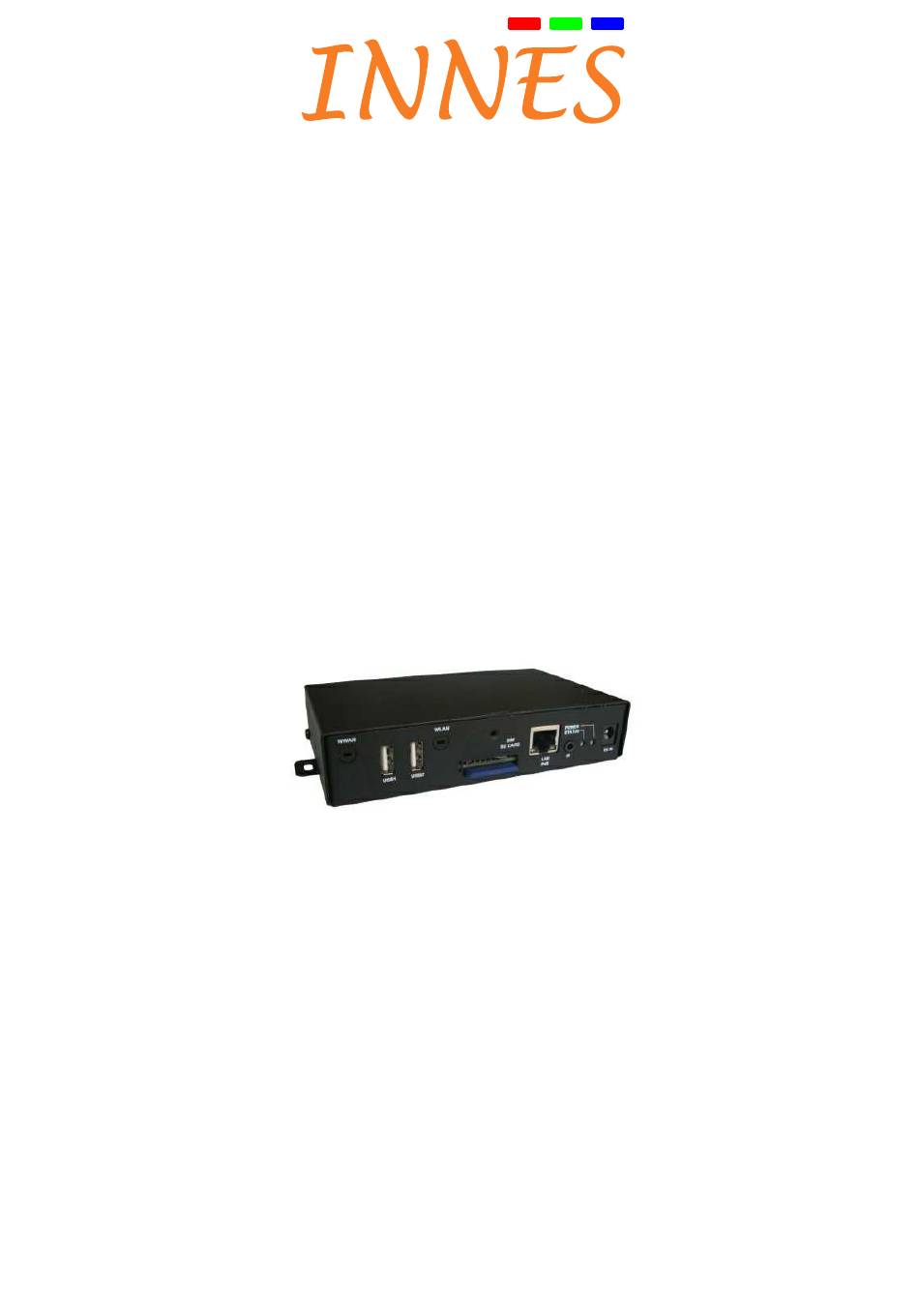

- Page 1 User Manual SMA300 3.12.57 001A...
- Page 2 Please read carefully the following instructions before switching the product on: - WARNING! Correct fitting and installation is of the utmost importance. Incorrect fitting and/or installation may result in personal injury or loss. INNES disclaims all liability, of whatever kind, if the product is assembled, fitted and/or installed in an incorrect manner.
-
Page 3: Table Of Contents
Table of Contents Introduction Getting Started LEDs Connectors Technical specifications Troubleshooting Conformities Contacts... -
Page 4: Introduction
This device is intended to work with the supplied power supply unit. This power supply unit must be connected to a mains socket conforming to standard NF C 15-100. If the AC power cable is damaged, it must be replaced. It is possible to order a replacement mains unit by sending a request to the email address sales@innes.pro. -
Page 5: Getting Started
Getting started with the device Front face SMA300 AUDIO OUT HDMI OUT HDMI output connector Audio connector Rear face WLAN WWAN SIM/ SD CARD POWER STATUS DC IN LAN P oE USB1 USB2 WWAN antenna slot USB1 2.0 Host connector USB2 2.0 Host connector... - Page 6 The model of the device, the power supply characteristics, the serial number (PSN) and the MAC address are written on a label which is stuck on the case. Some additional tags may be present in case of built-in options. ☛ The serial number of the device can be requested in case of technical support. Device start-up step >...
- Page 7 Disable the by using the WebUI. Test Card...
-
Page 8: Leds
The message displayed on screen indicates that a new publication is needed to go ahead. ² Error ¹ ¹ If the problem persists despite an appropriate power-supply, contact INNES technical support. ² If the problem persists, it is recommended to find out the media not supported yet by the system and remove it from content. -
Page 9: Connectors
Connectors pin-out Power supply connector (12VDC-0.6A) DC IN Lan connector Ethernet RJ-45 PoE. 10/100 BaseT. It is recommended to use shielded cables. Stereo jack 3.5mm L+R audio cable connector It is recommended to use cables whose length is less than 3 meters. HDMI OUT AUDIO OUT GPIO1/IR Jack connector 3.5mm... - Page 10 SMA300 3.3V 3.3V GPIO_in Switch Output configuration: SMA300 Power supply 3.3V Logic gate, transistor or opto-coupler GPIO_out Output Configuration GPIO1 connector configuration can be done through system preferences edition with device WebUI or with a script file. GPIO1 configuration part for this script is described here: (aDirection == "out")
-
Page 11: Technical Specifications
1x Ethernet 10/100 BaseT PoE Options Information GPRS/EDGE/HSDPA Modem ⚠ when the device PSN is different from 01090-XXXXX. For Innes devices, do use the cipher protocol (meaning the WLAN TKIP WIFI WIFI 802.11 parameters: pairwise=TKIP, group=TKIP, key=psk) when using keys, or the cipher protocol... - Page 12 Power supply 12V DC (600mA) PoE power (Power Over Ethernet) Working temperature Storage temperature +0°C à +35°C -20°C to +60°C Working humidity Storage humidity < 80% < 85% Weight Dimensions (WxHxD) 0,450 kg 144 x 89 x 29 mm...
-
Page 13: Troubleshooting
Error while playing a media: message "This content <media path/file name> is not compatible with this device" Troubleshooting To solve the issue, remove this not supported media from your playout and publish again. ¹ ¹ For further information, read the document gekkota-supported-medias-and-performances.pdf ² For further information, contact support@innes.pro... -
Page 14: Conformities
Conformities In conformity with the following European directives: LVD 2014/35/EU EMC 2014/30/EU... -
Page 15: Contacts
Contacts For further information, please contact us at + 33 (0)2 23 20 01 62 or by e-mail: Technical support: support@innes.pro Sales department: sales@innes.pro FAQ and download at : http://www.innes.pro/en/support/ INNES SA 5A rue pierre Joseph Colin 35700 RENNES Tel: +33 (0)2 23 20 01 62 Fax: +33 (0)2 23 20 22 59 http://www.innes.pro/fr...
